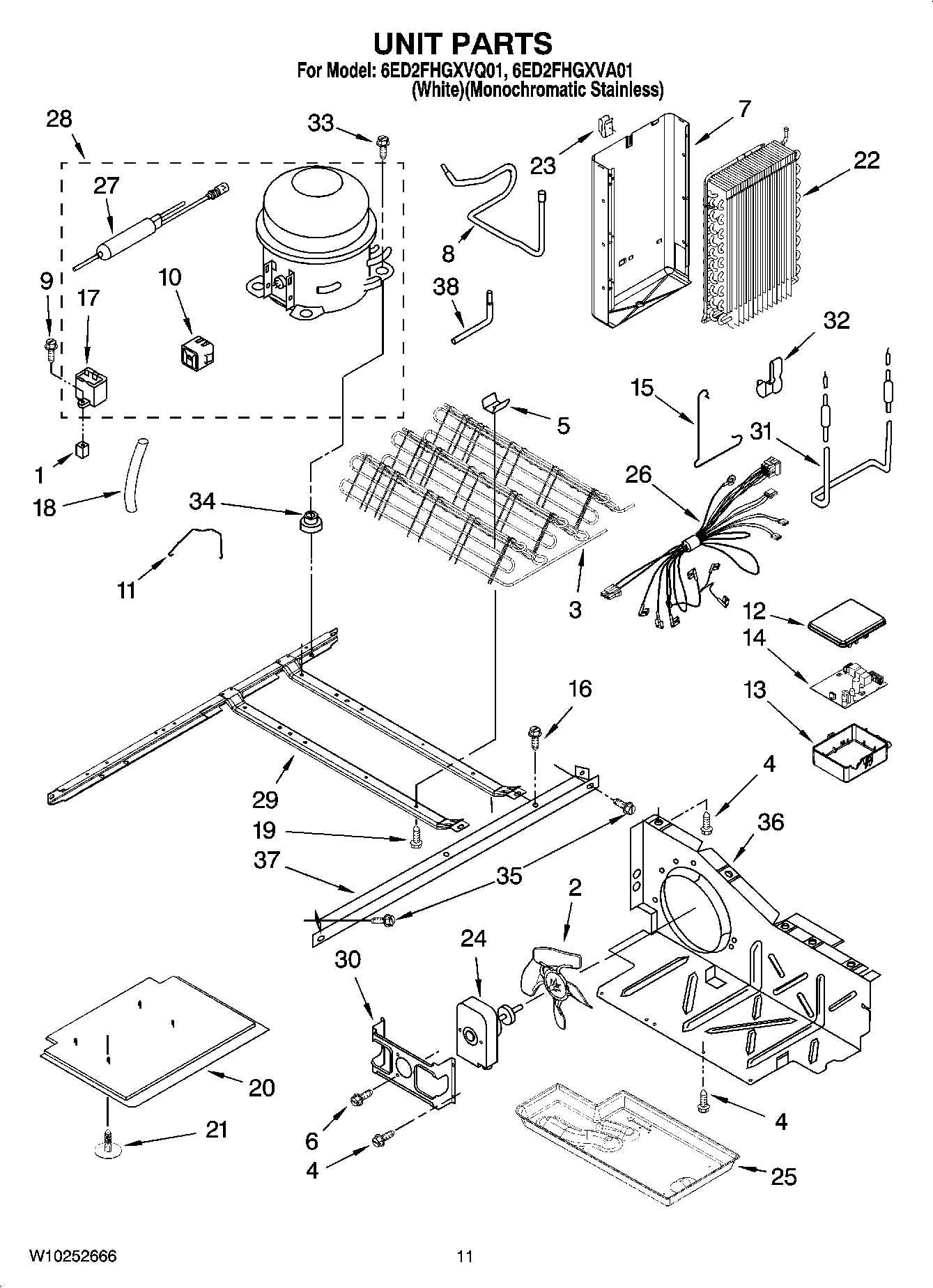

6ED2FHGXVA01 08 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	REFRIGERANT CHARGE 5.0 oz. (R-134)
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
1	Screw Grommet
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	WPW10194474 Whirlpool Refrigerator Shield
8	2205764 Whirlpool Refrigerator Tube
9	W11693756 Whirlpool Screw Assembly
10	WP2312007 Whirlpool Refrigerator Start Device
11	Strap, Bale
12	Box Cover
13	Control Box
14	WP2321818-includeCORE Whirlpool WP2321818 Refrigerator Electronic Control Board + Core
16	WP489427 Whirlpool Refrigerator Screw
17	2321245 Whirlpool Refrigerator Capacitor
18	SLEEVE
19	W11544659 Whirlpool Refrigerator Screw
20	W11115203 Whirlpool Control Panel
21	489396 Whirlpool Refrigerator Clip
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clip, Heat Shield
24	WP2321271 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Harness, Unit
27	WPW10143759 Whirlpool Dryer Filter
28	W10183407 Whirlpool Refrigerator Compressor
29	2304903 Whirlpool Refrigerator Frame
30	WP2181929 Whirlpool Refrigerator Bracket
31	WPW10123612 Whirlpool Heater Assembly
32	Clamp
34	876811 Whirlpool Grommet
35	489340 Whirlpool Refrigerator Screw
36	Air Baffle
37	W10207512 Whirlpool Rail Unit
38	W10858105 Whirlpool Refrigerator Tube
