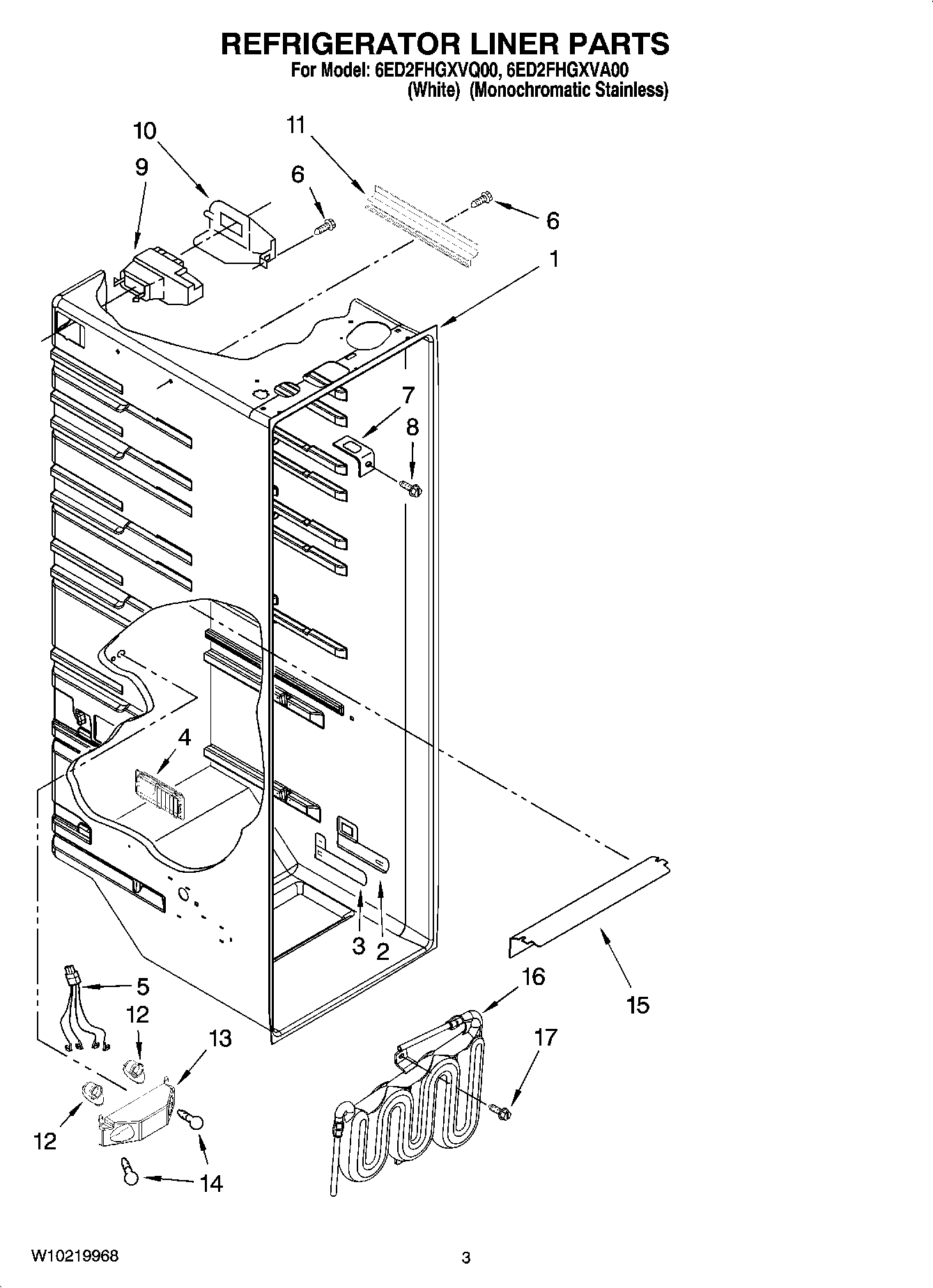

6ED2FHGXVQ00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	W10175967 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	Wire Harness, Dual Crisper
6	W10759522 Whirlpool Screw
7	WP2256085 Whirlpool Refrigerator Retainer
8	WP488488 Whirlpool Refrigerator Screw
9	WPW10129864 Whirlpool Refrigerator Diffuser
10	WP2212240 Whirlpool Refrigerator Cover
11	2150331 Whirlpool Refrigerator Wire Cover
12	W11447232 Whirlpool Refrigerator Socket
13	Bracket, Dual Crisper Light
14	WP67002552 Whirlpool Refrigerator Light Bulb
15	Light Lens
16	RESERVOIR
17	Screw (2)
