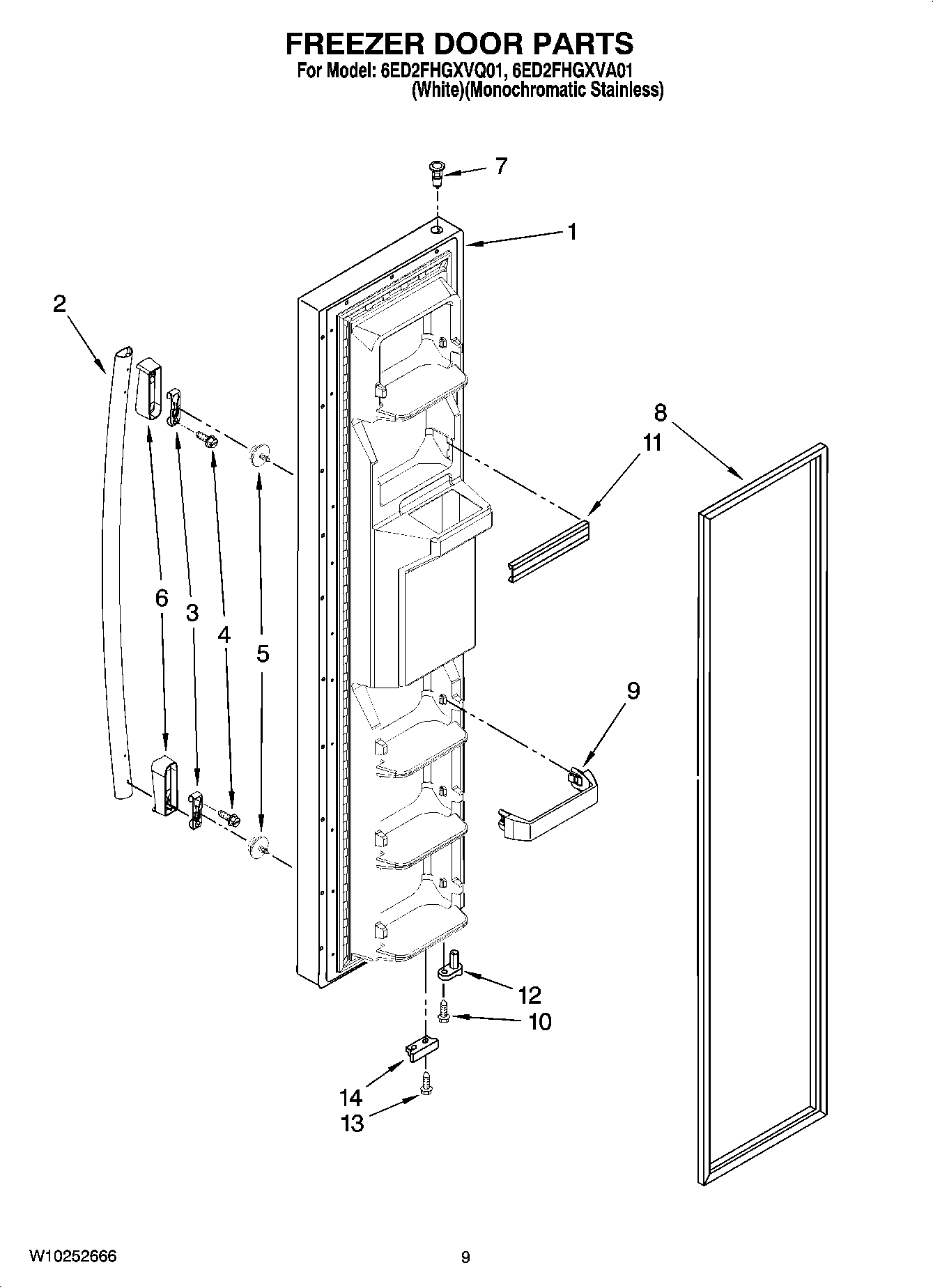

6ED2FHGXVQ01 07 – FREEZER DOOR PARTS

6ED2FHGXVQ01 07 – FREEZER DOOR PARTS

Written by

in

6ED2FHGXVQ01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8) (Satina/Apollo)
1Freezer Door (Includes Item 8) (White)
2W10273555 Whirlpool Refrigerator Handle
2WPW10127761K Whirlpool Refrigerator Handle
3WP2255411 Whirlpool Refrigerator Clip
4WP8533988 Whirlpool Screw Fastener
5WPW10288153 Whirlpool Refrigerator Screw
6Endcap (Nickel Alloy)
6W10127769 Whirlpool Refrigerator Handle End Cap
7WP2182181 Whirlpool Refrigerator Thimble
82159072 Whirlpool Refrigerator FIP Gasket
8W10136733 Whirlpool Refrigerator FIP Gasket
9WP2309717 Whirlpool Refrigerator Door Trim
10WP3400012 Whirlpool Refrigerator Screw
11WPW10307490 Whirlpool Door Trim Assembly
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
