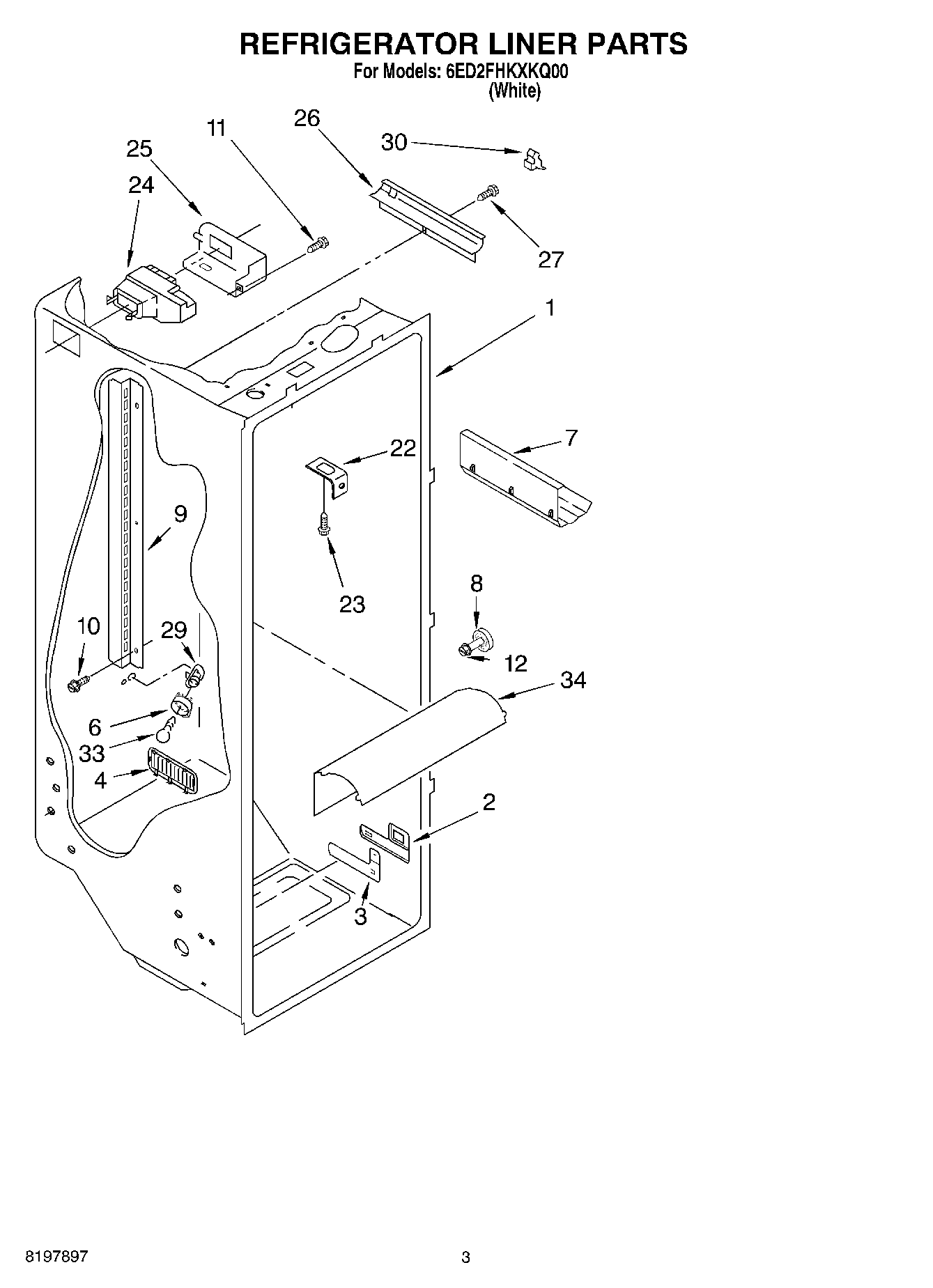

6ED2FHKXKQ00 02 – REFRIGERATOR LINER

6ED2FHKXKQ00 02 – REFRIGERATOR LINER

Written by

in

6ED2FHKXKQ00 02 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
6WP2175210 Whirlpool Refrigerator Shroud
7W10777924 Whirlpool Refrigerator Wine Rack
8WP2196483 Whirlpool Refrigerator Shelf Stud
9Shelf Ladder
10WP488729 Whirlpool Refrigerator Door Screw
11WP489478 Whirlpool Refrigerator Screw
12WP3400806 Whirlpool Screw
22WP2256085 Whirlpool Refrigerator Retainer
23WP488488 Whirlpool Refrigerator Screw
24WPW10129864 Whirlpool Refrigerator Diffuser
25WP2212240 Whirlpool Refrigerator Cover
262150331 Whirlpool Refrigerator Wire Cover
27W10759522 Whirlpool Screw
294387478 Whirlpool Refrigerator Light Socket
302215823 Whirlpool Refrigerator Clip
33WP67002552 Whirlpool Refrigerator Light Bulb
34Light Lens
