6ED2FHKXKQ00 05 – REFRIGERATOR DOOR

6ED2FHKXKQ00 05 – REFRIGERATOR DOOR

Written by

in

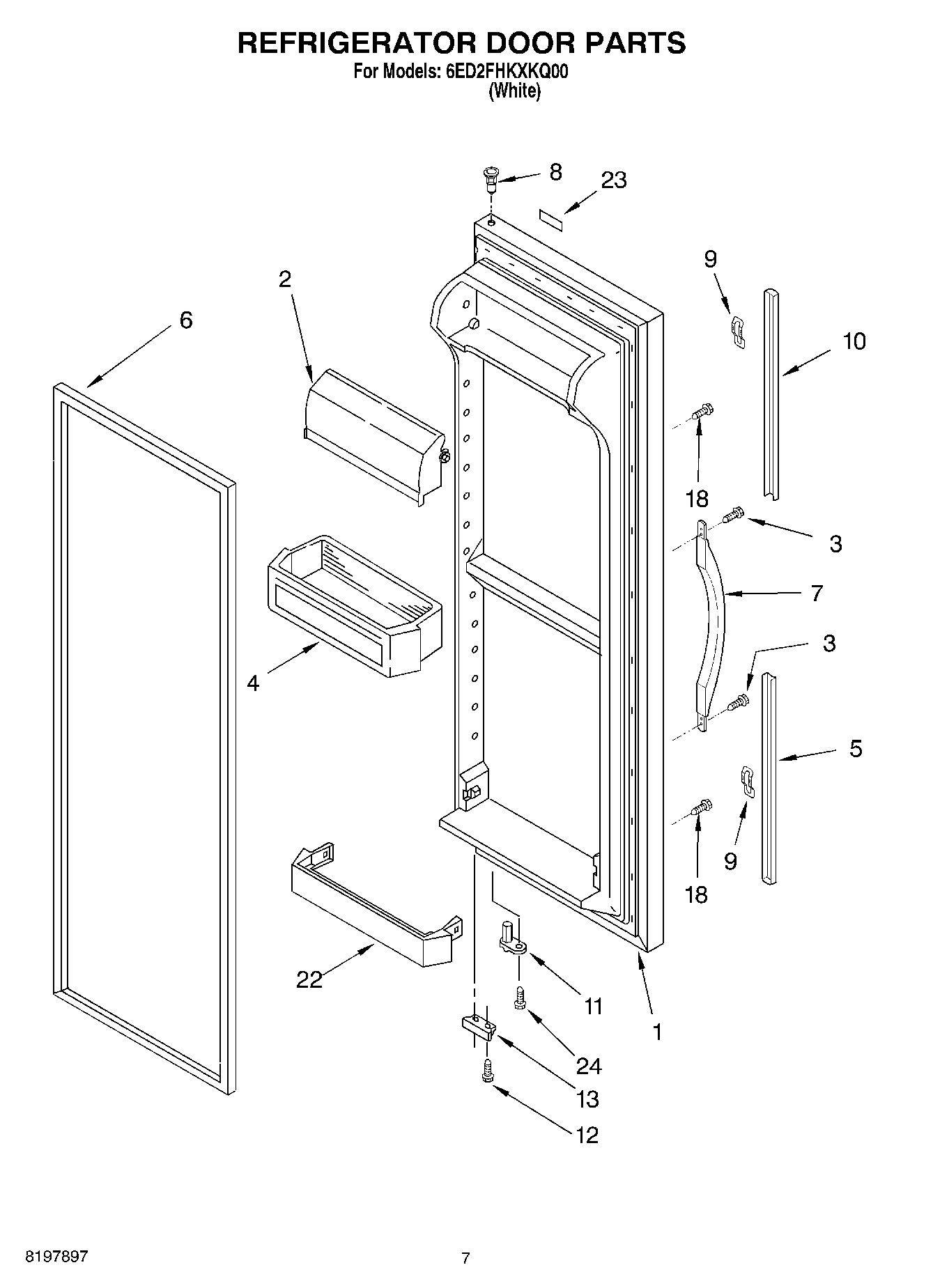

6ED2FHKXKQ00 05 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (White)
2WP2256101 Whirlpool Dairy Door
3WP489491 Whirlpool Refrigerator Screw
4WP2187172 Whirlpool Refrigerator Door Shelf Bin
5Extension, Bottom (White)
62159073 Whirlpool Refrigerator Door Gasket
7Handle, Center (White)
8WP2182181 Whirlpool Refrigerator Thimble
9WP2195327 Whirlpool Refrigerator Clip
10Extension, Top (White)
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13WP2206629B Whirlpool Refrigerator Bracket
18WP3400852 Whirlpool Refrigerator Screw
22WP2177962K Whirlpool Refrigerator Door Trim
23Nameplate (White)
24WP3400012 Whirlpool Refrigerator Screw
