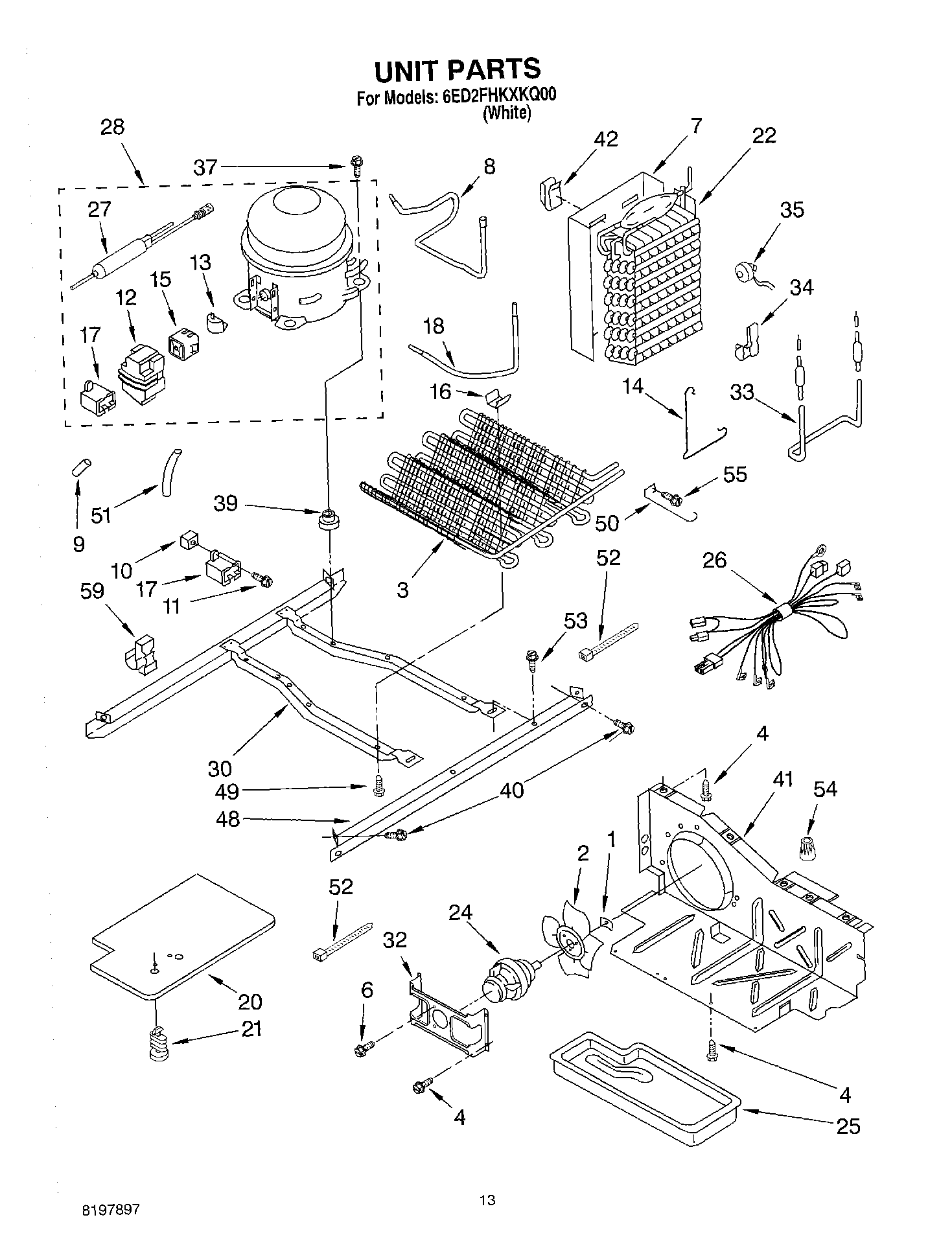

6ED2FHKXKQ00 09 – UNIT, OPTIONAL

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
8	2205764 Whirlpool Refrigerator Tube
9	WP2158826 Whirlpool Refrigerator Dampener
10	Screw Grommet
11	W11693756 Whirlpool Screw Assembly
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	4388786 Whirlpool Refrigerator Overload
14	Clamp
15	Start Device, Combination (Start Relay and Overload) For Production Compressor Only
16	W10683556 Whirlpool Refrigerator Clip
17	WP2201147 Whirlpool Refrigerator Capacitor
18	Tube, Condenser to Heat Loop
20	Unit Cover, Bottom
21	489396 Whirlpool Refrigerator Clip
22	WP2188822 Whirlpool Refrigerator Evaporator
24	8201703 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Harness, Unit
27	W10843121 Whirlpool Refrigerator Tube
28	W10183407 Whirlpool Refrigerator Compressor
30	2304903 Whirlpool Refrigerator Frame
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2313330 Whirlpool Refrigerator Heater
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37	SCREW
39	W11661108 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	W11544659 Whirlpool Refrigerator Screw
50	1105612 Whirlpool Fan Guard
51	SLEEVE
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
55	WP489478 Whirlpool Refrigerator Screw
59	212643 Whirlpool Refrigerator Permagum Sealer
59	350942 Whirlpool Spray Paint
59	511873 Whirlpool Refrigerator Paint
59	606755 Whirlpool Refrigerator Bag
59	833938 Whirlpool Refrigerator Terminal
59	876370 Whirlpool Refrigerator Insulation
59	350930 Whirlpool White Spray Paint
59	VALVE, ACCESS (5/8“)
59	72032 Whirlpool Touch Up Paint Black
59	WPW10190943 Whirlpool Refrigerator Icemaker
59	Almond (Uncut)
59	WP72107 Whirlpool Touchup
59	799344 Whirlpool Refrigerator Paint
59	72017 Whirlpool Appliance Touch-Up Paint White
59	WP503695 Whirlpool Refrigerator Sealer
59	876764 Whirlpool Refrigerator Primary Valve
59	285006 Whirlpool Spray
59	WPL 876029
59	WPL 799833
59	Enamel, Black (1 Qt. Uncut)
59	WP978025 Whirlpool Refrigerator Valve
59	CEMENT, ALUMILASTIC (1 1/4 OZ.)
59	TAPE, VINYL (3/4 X 108“)
59	VALVE, ACCESS (1/2“)
59	Torx Key
59	978030 Whirlpool Refrigerator Valve
59	Clip, Wire & Tube
59	WP542638 Whirlpool Refrigerator Grease
59	978027 Whirlpool Refrigerator Primary Valve
59	WP505587 Whirlpool Refrigerator Sealer
59	978026 Whirlpool Refrigerator Primary Valve
59	350956 Whirlpool Spray Assembly
