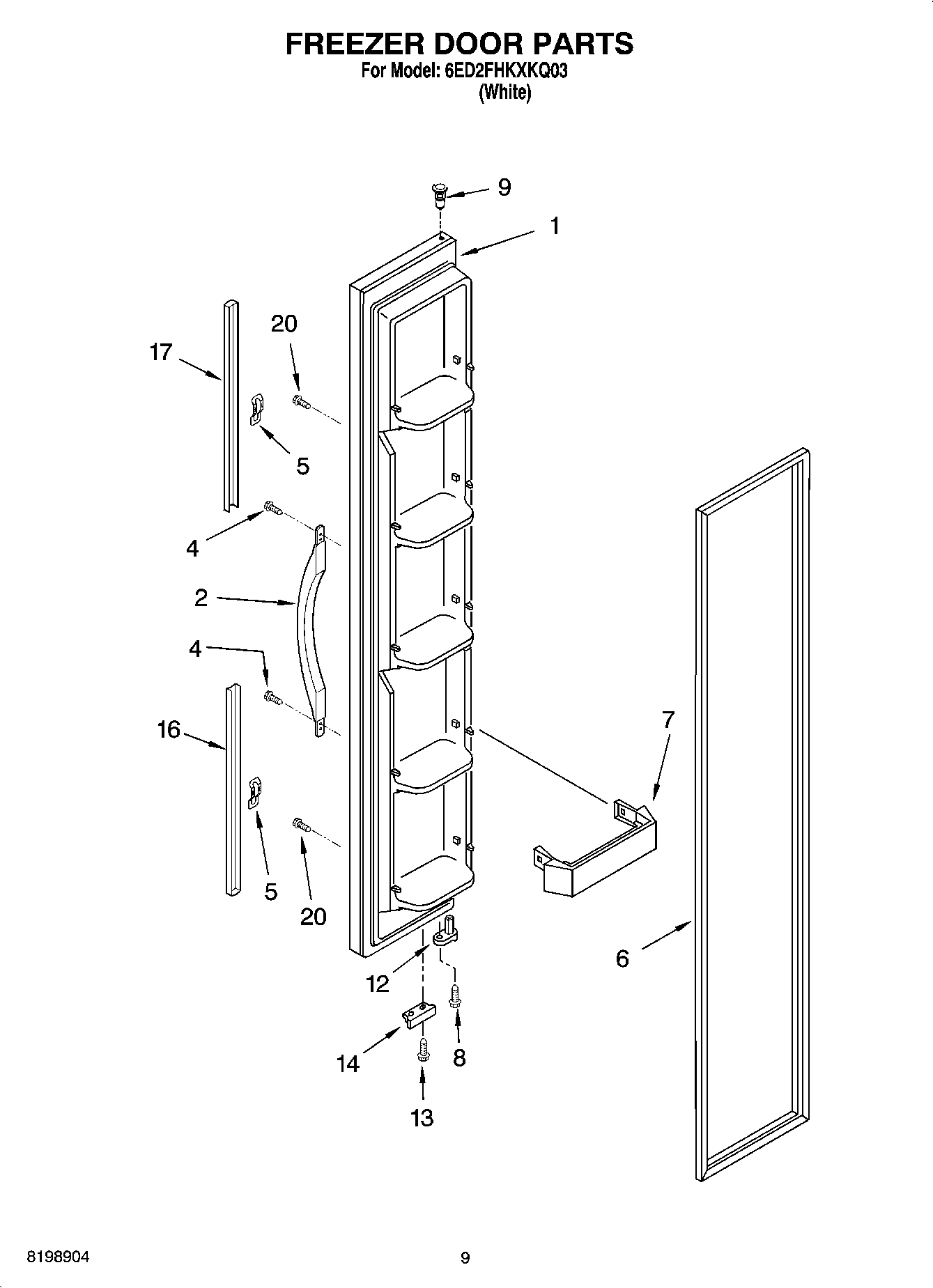

6ED2FHKXKQ03 06 – FREEZER DOOR PARTS

6ED2FHKXKQ03 06 – FREEZER DOOR PARTS

Written by

in

6ED2FHKXKQ03 06 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item No.8)
2Handle, Center (White)
4WP489491 Whirlpool Refrigerator Screw
5WP2195327 Whirlpool Refrigerator Clip
62159072 Whirlpool Refrigerator FIP Gasket
7Trivet, Door Shelf (4)
8WP3400012 Whirlpool Refrigerator Screw
9WP2182181 Whirlpool Refrigerator Thimble
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
16Extension, Bottom (White)
17Extension, Top (White)
20WP3400852 Whirlpool Refrigerator Screw
