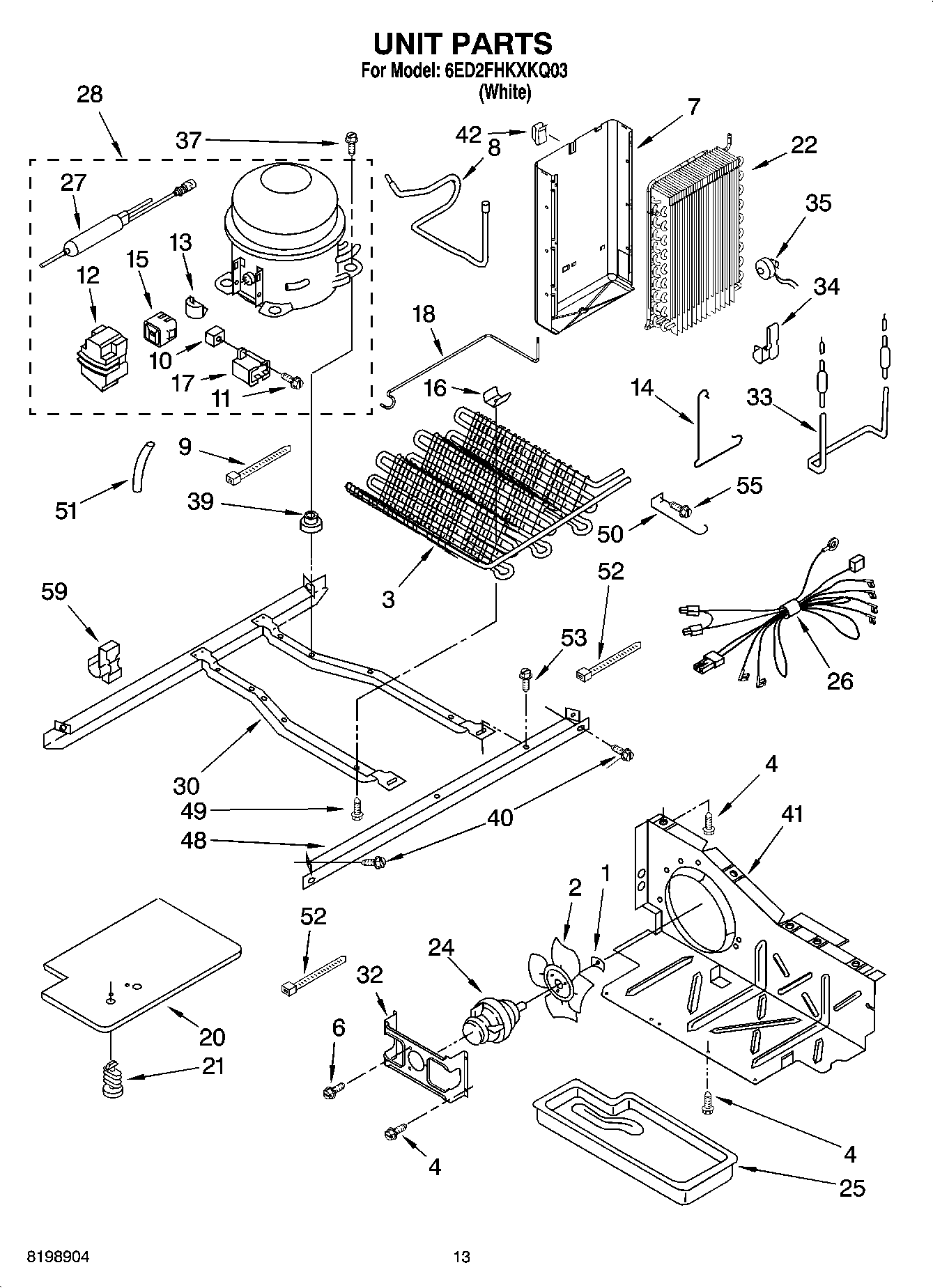

6ED2FHKXKQ03 09 – UNIT PARTS, PARTS NOT ILLUSTRATED

Products

Position	Product
	350930 Whirlpool White Spray Paint
	511873 Whirlpool Refrigerator Paint
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	WPL ARI15961A2
	WP503695 Whirlpool Refrigerator Sealer
	72032 Whirlpool Touch Up Paint Black
	WP505587 Whirlpool Refrigerator Sealer
	285006 Whirlpool Spray
	WP542638 Whirlpool Refrigerator Grease
	WPL 876029
	Torx Key
	WPL 799833
	Enamel, Black (1 Qt. Uncut)
	TAPE, VINYL (3/4 X 108“)
	350942 Whirlpool Spray Paint
	212643 Whirlpool Refrigerator Permagum Sealer
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	WPL ARI15960A7
	WPL ARI15959A5
	WPL ARI15958A5
	876370 Whirlpool Refrigerator Insulation
	WPL ARI15957A5
	WPL ARI15956A2
	WPW10190943 Whirlpool Refrigerator Icemaker
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield And Drain Pan
8	2205764 Whirlpool Refrigerator Tube
10	Screw Grommet
11	W11693756 Whirlpool Screw Assembly
12	WP61002138 Whirlpool Refrigerator Terminal Cover
13	4388786 Whirlpool Refrigerator Overload
14	Clamp
15	Start Device, Combination (Start Relay and Overload) For Production Compressor Only
16	W10683556 Whirlpool Refrigerator Clip
17	WP2201147 Whirlpool Refrigerator Capacitor
18	Tube, Condenser to Heat Loop
20	Unit Cover, Bottom
21	489396 Whirlpool Refrigerator Clip
22	WP2188822 Whirlpool Refrigerator Evaporator
24	8201703 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Harness, Unit
27	W10843121 Whirlpool Refrigerator Tube
28	W10183407 Whirlpool Refrigerator Compressor
30	2304903 Whirlpool Refrigerator Frame
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2313330 Whirlpool Refrigerator Heater
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	W11544659 Whirlpool Refrigerator Screw
50	1105612 Whirlpool Fan Guard
51	SLEEVE
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
55	WP489478 Whirlpool Refrigerator Screw
59	978030 Whirlpool Refrigerator Valve
59	WP978025 Whirlpool Refrigerator Valve
59	VALVE, ACCESS (5/8“)
59	Clip, Wire & Tube
59	978027 Whirlpool Refrigerator Primary Valve
59	and Optional Parts Not Included
59	FOLLOWING PARTS NOT ILLUSTRATED
59	978026 Whirlpool Refrigerator Primary Valve
59	876764 Whirlpool Refrigerator Primary Valve
59	VALVE, ACCESS (1/2“)
59	REFRIGERANT CHARGE 5.0 oz. (R-134)
