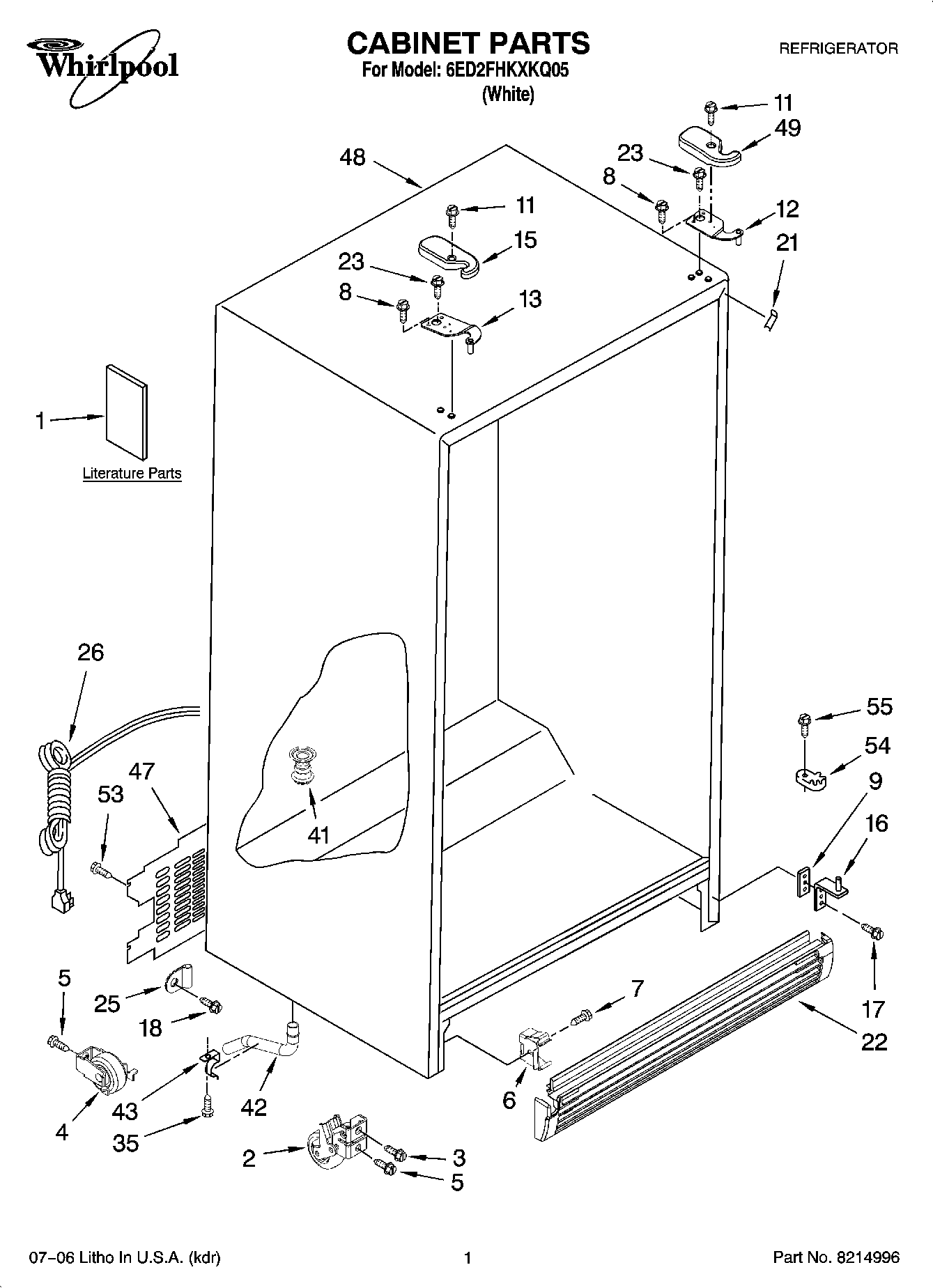

6ED2FHKXKQ05 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	Use & Care Guide
1	Energy Label
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489128 Whirlpool Refrigerator Screw
9	WP2209697 Whirlpool Refrigerator Shim
11	WP8281227 Whirlpool Screw
12	WP2203771 Whirlpool Refrigerator Door Hinge
13	WP2203770 Whirlpool Refrigerator Door Hinge
15	WP2203407W Whirlpool Refrigerator Cover
16	8201707 Whirlpool Door Hinge
17	WP489497 Whirlpool Screw
18	W11693756 Whirlpool Screw Assembly
21	Filler, Wrapper (White)
22	W10804014 Whirlpool Refrigerator Grille
23	W10853301 Whirlpool Refrigerator Screw
25	489348 Whirlpool Refrigerator Tube Clamp
26	Service Cord
35	WP489464 Whirlpool Refrigerator Screw
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
47	Cover, Unit
48	Cabinet, (Not A Serviceable Part)
49	WP2203408W Whirlpool Refrigerator Cover
54	WPW10329686 Whirlpool Door Cam Black
55	WP489483 Whirlpool Screw
