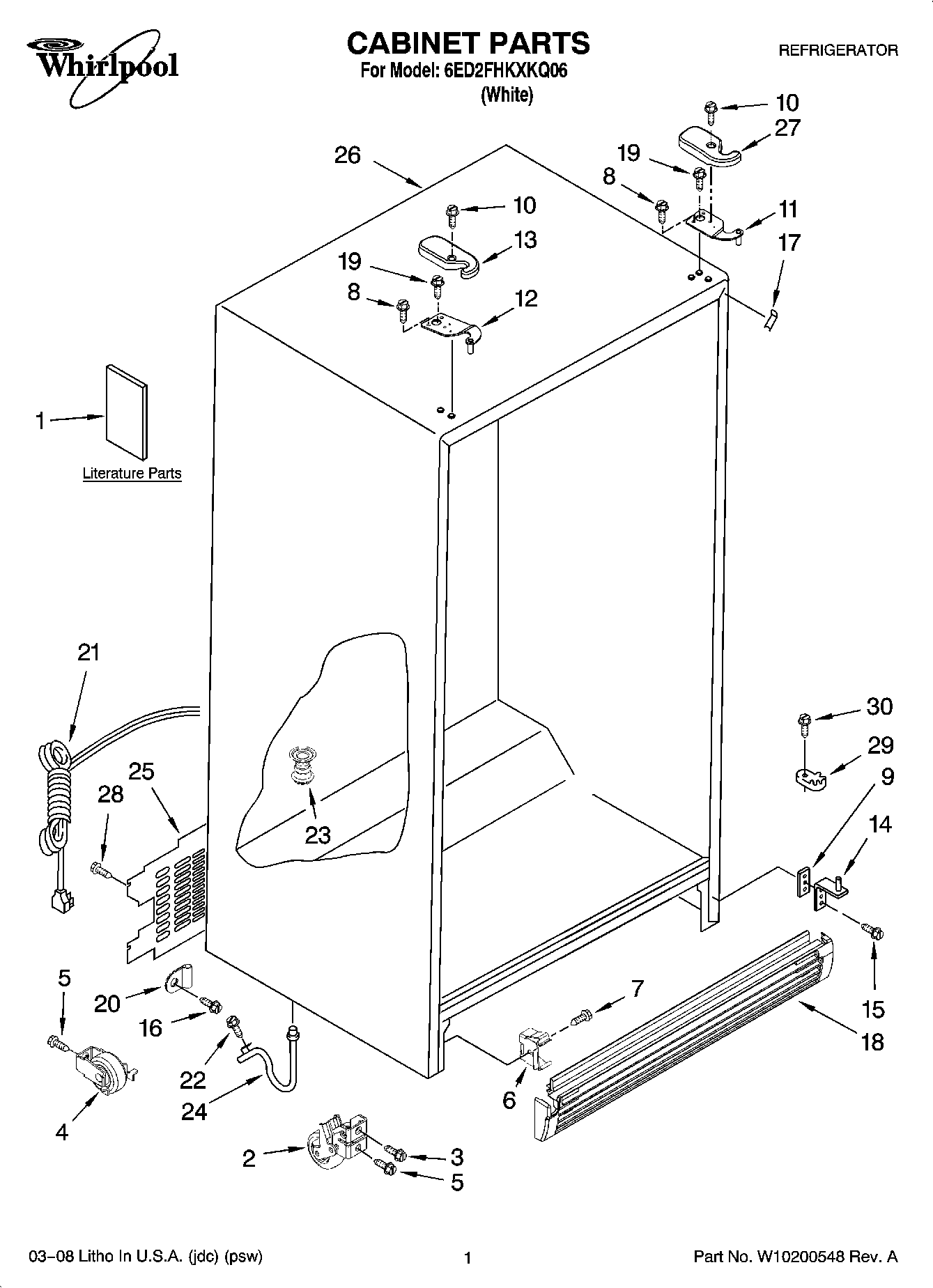

6ED2FHKXKQ06 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	Use & Care Guide
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489128 Whirlpool Refrigerator Screw
9	WP2209697 Whirlpool Refrigerator Shim
10	WP8281227 Whirlpool Screw
11	WP2203771 Whirlpool Refrigerator Door Hinge
12	WP2203770 Whirlpool Refrigerator Door Hinge
13	WP2203407W Whirlpool Refrigerator Cover
14	8201707 Whirlpool Door Hinge
15	WP489497 Whirlpool Screw
16	W11693756 Whirlpool Screw Assembly
17	Filler, Wrapper (White)
18	W10804014 Whirlpool Refrigerator Grille
19	W10853301 Whirlpool Refrigerator Screw
20	489348 Whirlpool Refrigerator Tube Clamp
21	Service Cord
22	WP489464 Whirlpool Refrigerator Screw
23	W11566763 Whirlpool Fitting
24	Extension Tube
25	Cover, Unit
26	Cabinet, (Not A Serviceable Part)
27	WP2203408W Whirlpool Refrigerator Cover
29	WPW10329686 Whirlpool Door Cam Black
30	WP489483 Whirlpool Screw
