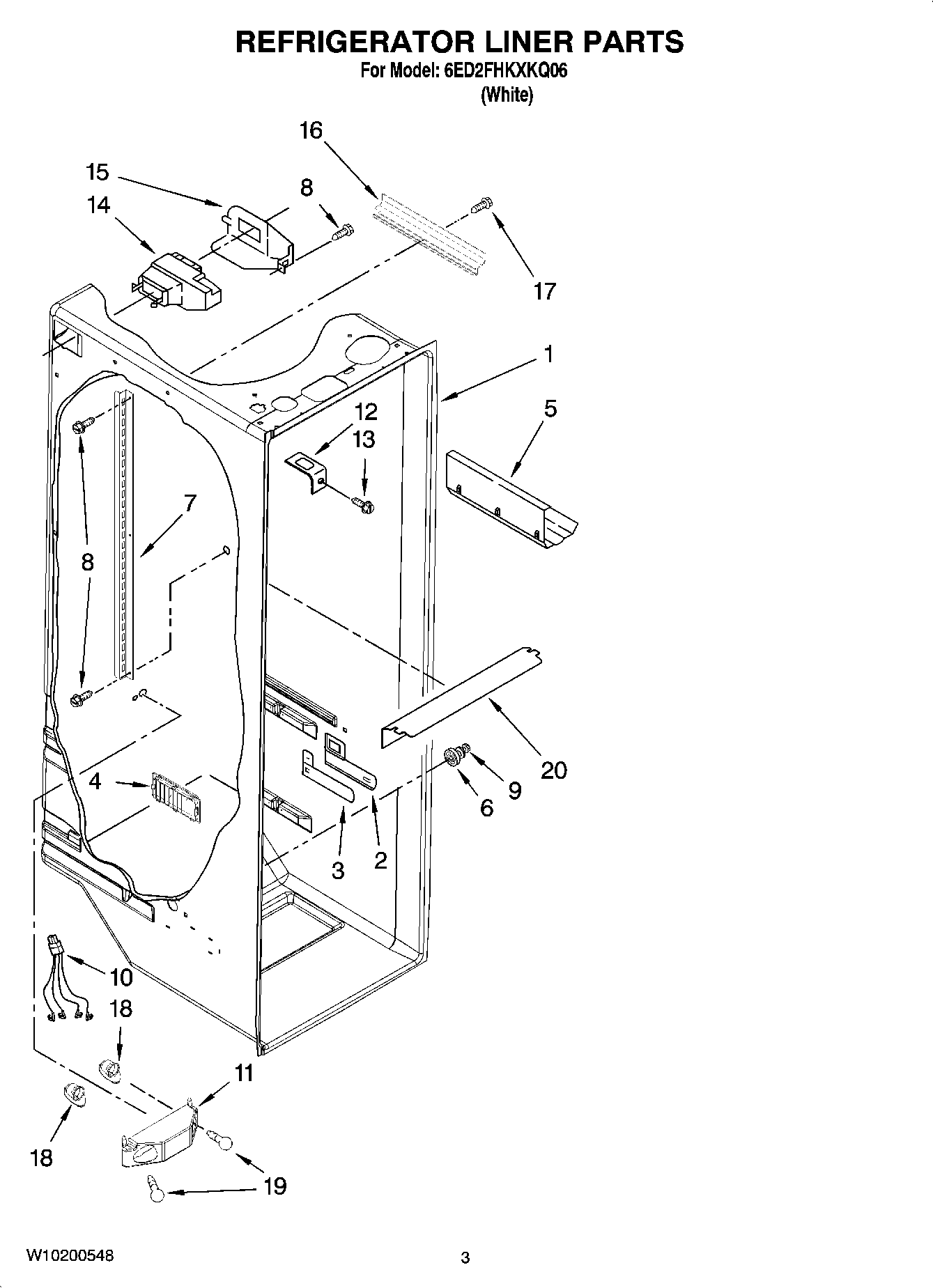

6ED2FHKXKQ06 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	W10175967 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	W10777924 Whirlpool Refrigerator Wine Rack
6	W11223328 Whirlpool Refrigerator Shelf Stud
7	Shelf Ladder
8	WP489478 Whirlpool Refrigerator Screw
9	WP3-24004-109 Whirlpool Refrigerator Screw
10	Wire Harness, Dual Crisper
11	Bracket, Dual Crisper Light
12	WP2256085 Whirlpool Refrigerator Retainer
13	WP488488 Whirlpool Refrigerator Screw
14	WPW10151378 Whirlpool Refrigerator Diffuser
15	WP2212240 Whirlpool Refrigerator Cover
16	2150331 Whirlpool Refrigerator Wire Cover
17	W10759522 Whirlpool Screw
18	W11447232 Whirlpool Refrigerator Socket
19	WP67002552 Whirlpool Refrigerator Light Bulb
20	Light Lens
