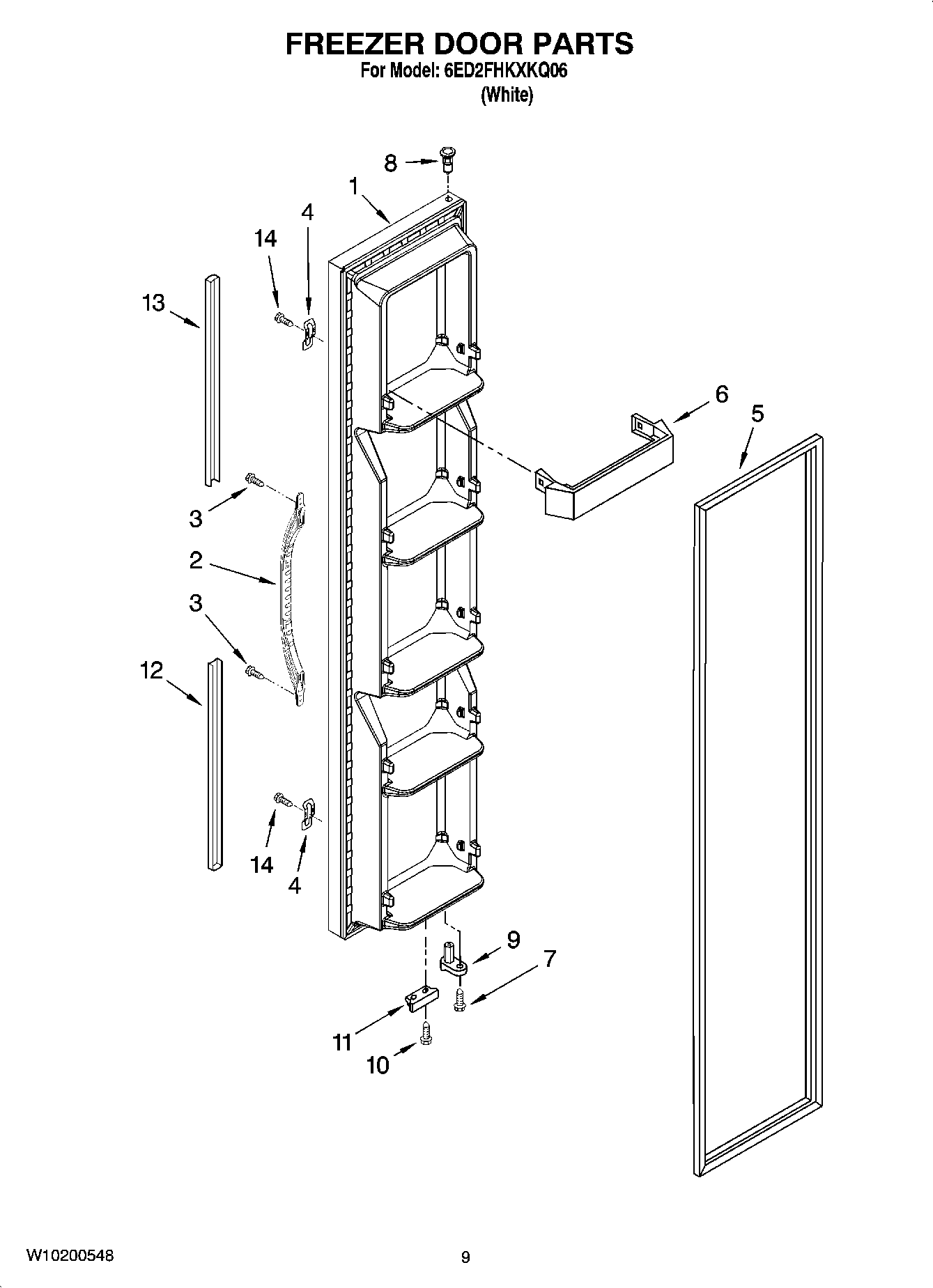

6ED2FHKXKQ06 06 – FREEZER DOOR PARTS

6ED2FHKXKQ06 06 – FREEZER DOOR PARTS

Written by

in

6ED2FHKXKQ06 06 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item No.8)
2Handle, Center (White)
3WP489491 Whirlpool Refrigerator Screw
4WP2195327 Whirlpool Refrigerator Clip
52159072 Whirlpool Refrigerator FIP Gasket
6Trivet (5)
7WP3400012 Whirlpool Refrigerator Screw
8WP2182181 Whirlpool Refrigerator Thimble
9WP2182179 Whirlpool Cam Closer
10WP489483 Whirlpool Screw
11WP2206629B Whirlpool Refrigerator Bracket
12Extension, Bottom (White)
13Extension, Top (White)
14WP3400852 Whirlpool Refrigerator Screw
