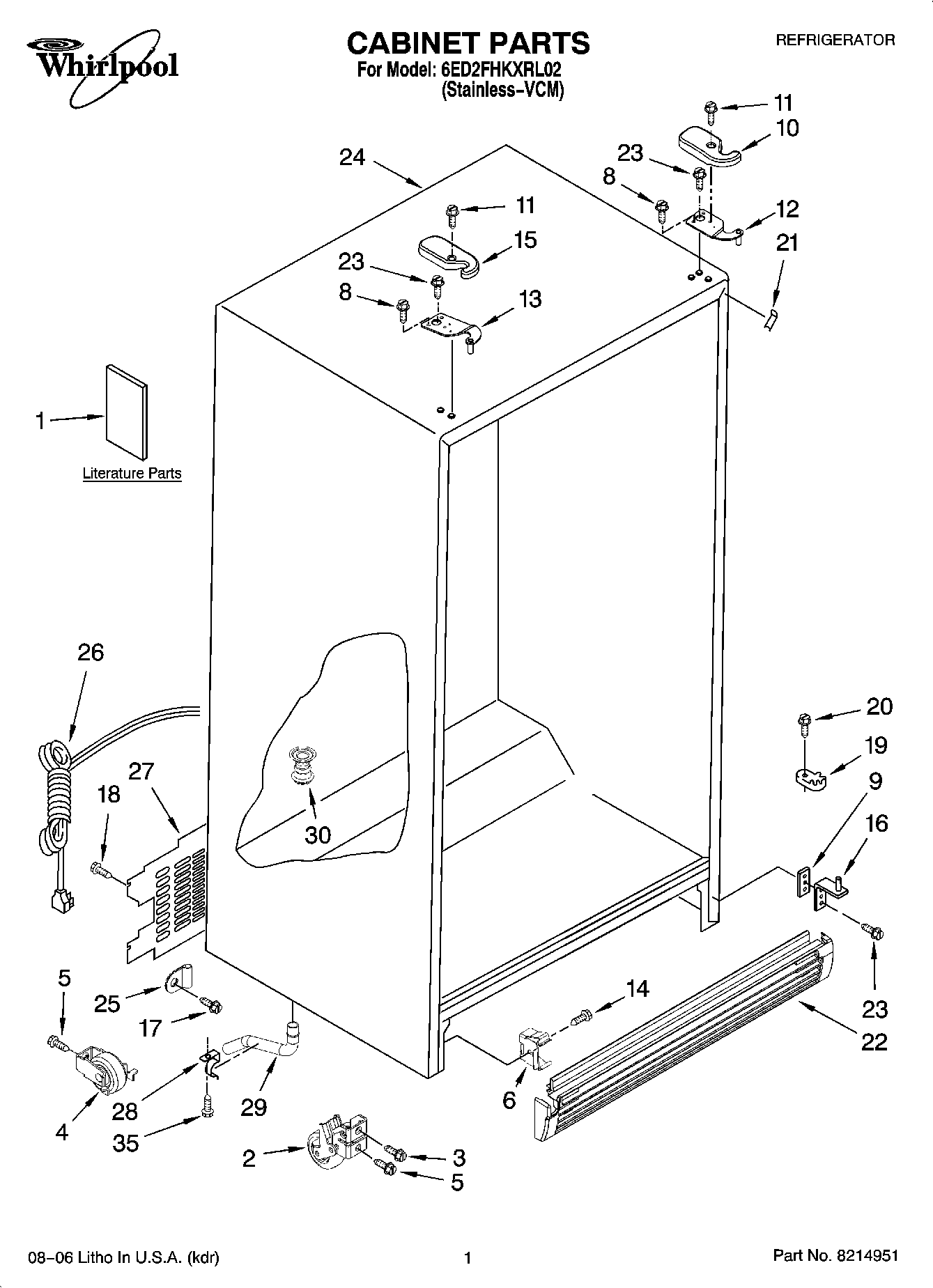

6ED2FHKXRL02 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	Energy Label
1	Use & Care Guide
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
8	W10853301 Whirlpool Refrigerator Screw
9	WP2209697 Whirlpool Refrigerator Shim
10	WP2203408B Whirlpool Refrigerator Cover
11	WP8281227 Whirlpool Screw
12	WP2203771 Whirlpool Refrigerator Door Hinge
13	WP2203770 Whirlpool Refrigerator Door Hinge
14	WP489128 Whirlpool Refrigerator Screw
15	WP2203407B Whirlpool Refrigerator Cover
16	8201707 Whirlpool Door Hinge
17	W11693756 Whirlpool Screw Assembly
19	WPW10329686 Whirlpool Door Cam Black
20	WP489483 Whirlpool Screw
21	Filler, Wrapper (Black)
22	W10804014 Whirlpool Refrigerator Grille
23	WP489497 Whirlpool Screw
24	Cabinet, (Not A Serviceable Part)
25	489348 Whirlpool Refrigerator Tube Clamp
26	Service Cord
27	Cover, Unit
28	WP1108439 Whirlpool Refrigerator Clip
29	WP1108438 Whirlpool Refrigerator Extension
30	W11566763 Whirlpool Fitting
35	WP489464 Whirlpool Refrigerator Screw
