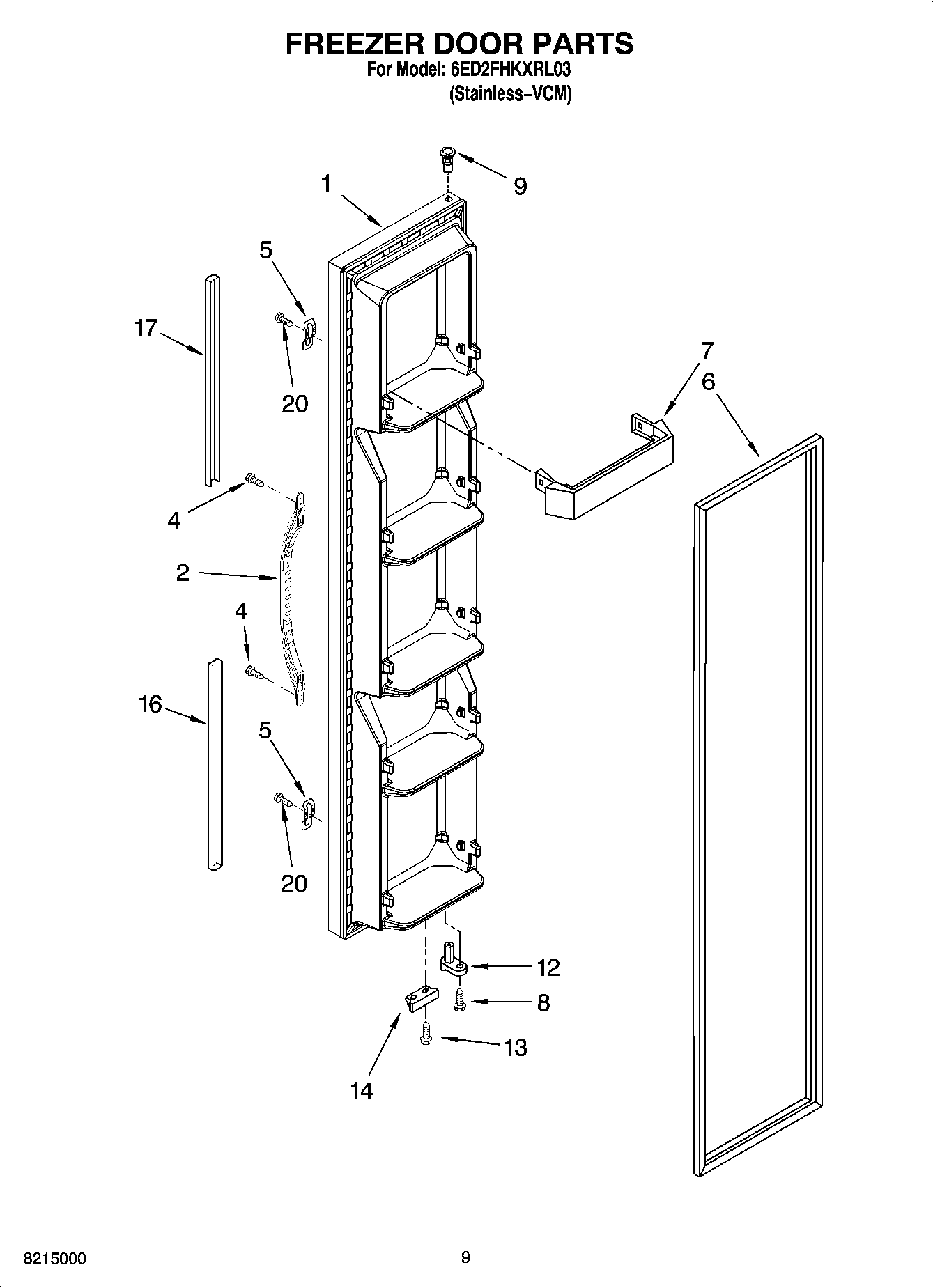

6ED2FHKXRL03 06 – FREEZER DOOR PARTS

6ED2FHKXRL03 06 – FREEZER DOOR PARTS

Written by

in

6ED2FHKXRL03 06 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 6) (Stainless-VCM)
2WP2186649B Whirlpool Refrigerator Handle
4WP489491 Whirlpool Refrigerator Screw
5WP2195327 Whirlpool Refrigerator Clip
62159080 Whirlpool Refrigerator Door Gasket
7Shelf Bin (4)
8WP3400012 Whirlpool Refrigerator Screw
9WP2182181 Whirlpool Refrigerator Thimble
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
16WP2194969B Whirlpool Refrigerator Handle Trim
17WP2194971B Whirlpool Refrigerator Handle Trim
20WP3400852 Whirlpool Refrigerator Screw
