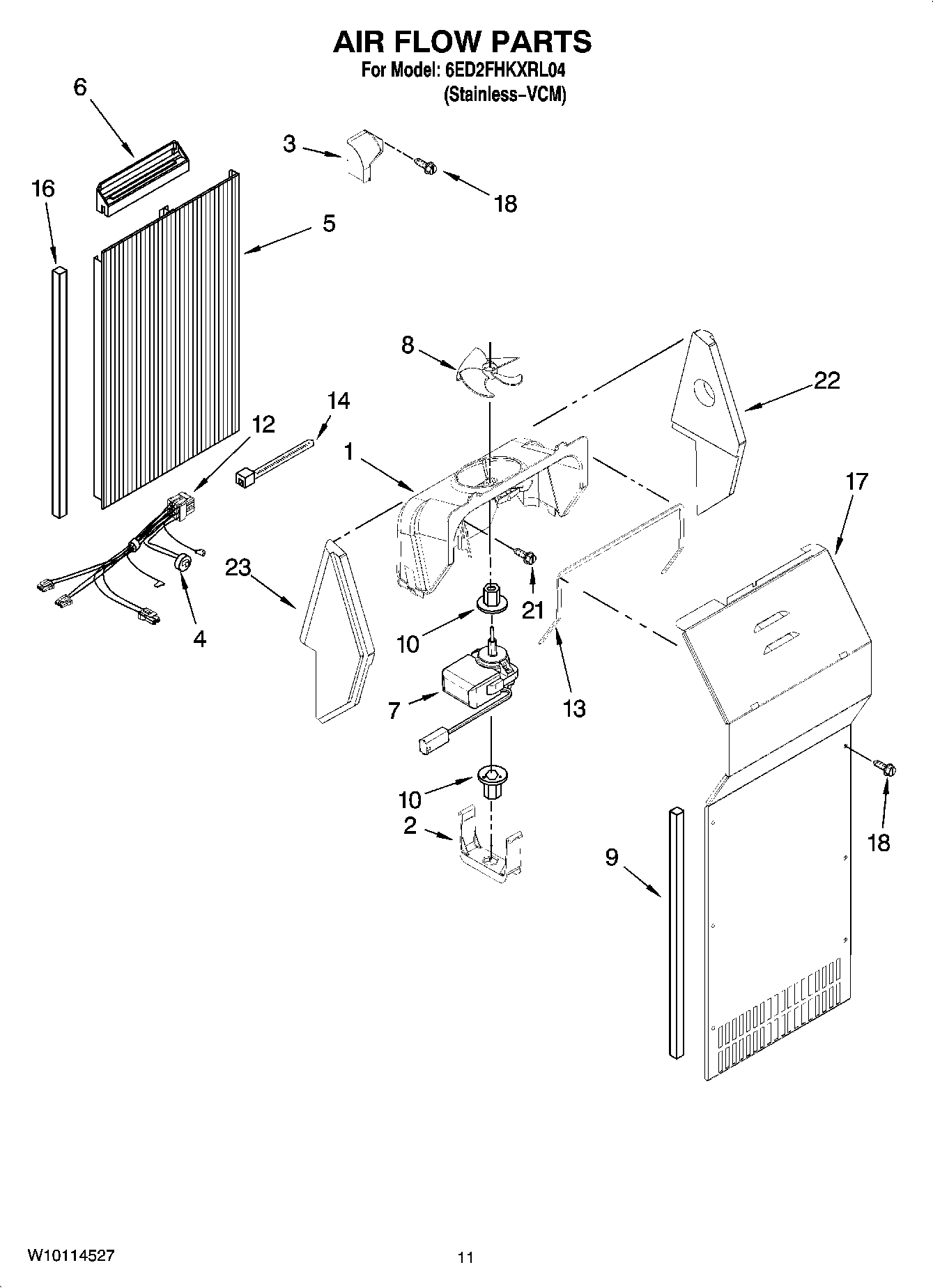

6ED2FHKXRL04 07 – AIR FLOW PARTS

Products

Position	Product
1	W11254898 Whirlpool Refrigerator Scroll Fan
2	WP2155590 Whirlpool Refrigerator Retainer
3	Air Scoop
4	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5	Air Duct Freezer
6	Diffuser, Air Duct
7	WP2321275 Whirlpool Refrigerator Evaporator Motor
8	WP2169142 Whirlpool Fan Blade
9	WP2304241 Whirlpool Refrigerator Gasket
10	WP2176759 Whirlpool Refrigerator Grommet
12	Harness, Fan Evaporator (Includes 4)
13	WP2155789 Whirlpool Refrigerator Gasket
14	WPW10339879 Whirlpool Wire Tie
16	4388500 Whirlpool Refrigerator Gasket
17	4388357 Whirlpool Refrigerator Evaporator Cover
18	4389654 Whirlpool Screw
21	WP489478 Whirlpool Refrigerator Screw
22	4388358 Whirlpool Refrigerator Support Bracket
