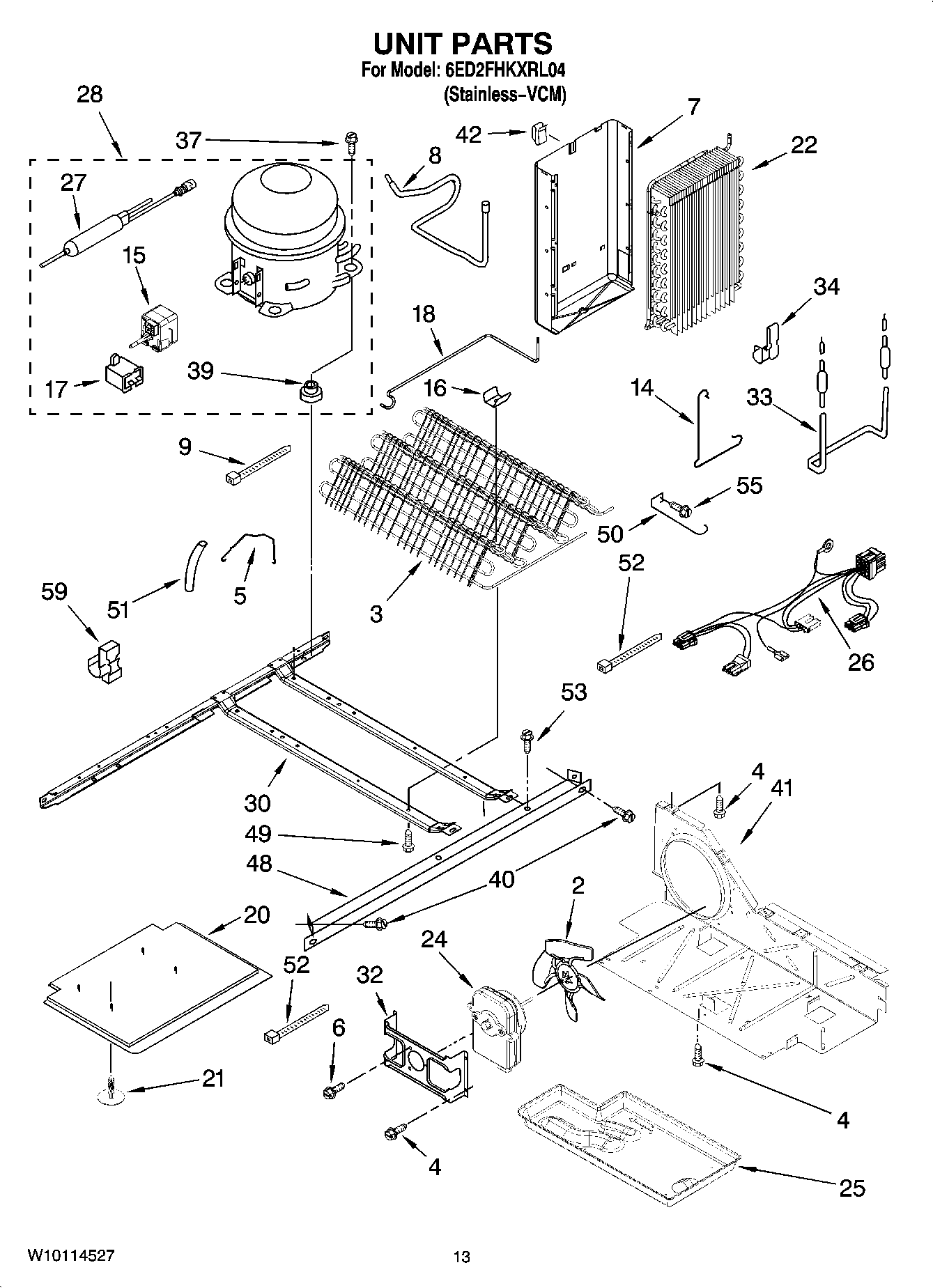

6ED2FHKXRL04 09 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

6ED2FHKXRL04 09 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

6ED2FHKXRL04 09 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WP542638 Whirlpool Refrigerator Grease
	WPL 799833
	PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
	TAPE, VINYL (3/4 X 108“)
	Torx Key
	WPW10190943 Whirlpool Refrigerator Icemaker
	PAINT, BULK (1 QT. GRAPHITE)
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
	833938 Whirlpool Refrigerator Terminal
	WPL ARI141641A
	WPL ARI141640A
	8171357 Whirlpool Spray Nozzle
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Strap, Bale
6	WP8533993 Whirlpool Refrigerator Screw
7	Heat Shield
8	2205764 Whirlpool Refrigerator Tube
14	Clamp
15	Start-Device, Combination (Start Relay and Overload) For Production & Srvc Compressor
16	W10683556 Whirlpool Refrigerator Clip
17	2321245 Whirlpool Refrigerator Capacitor
18	2261599 Whirlpool Refrigerator Tube
20	Unit Cover, Bottom
21	489396 Whirlpool Refrigerator Clip
22	WP2188822 Whirlpool Refrigerator Evaporator
24	WP2321271 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Harness, Unit
27	W10843121 Whirlpool Refrigerator Tube
27	WPW10143759 Whirlpool Dryer Filter
28	W10183407 Whirlpool Refrigerator Compressor
30	2304903 Whirlpool Refrigerator Frame
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2313330 Whirlpool Refrigerator Heater
34	W11623163 Whirlpool Refrigerator Clip
39	876811 Whirlpool Grommet
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	W11544659 Whirlpool Refrigerator Screw
50	1105612 Whirlpool Fan Guard
51	SLEEVE
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
55	WP489478 Whirlpool Refrigerator Screw
59	VALVE, ACCESS (1/2“)
59	Following Parts Not Illustrated and Optional Parts Not Included
59	VALVE, ACCESS (5/8“)
59	Clip, Wire & Tube
59	876764 Whirlpool Refrigerator Primary Valve
59	978026 Whirlpool Refrigerator Primary Valve
59	978027 Whirlpool Refrigerator Primary Valve
59	978030 Whirlpool Refrigerator Valve
59	WP978025 Whirlpool Refrigerator Valve
59	REFRIGERANT CHARGE 0.142 Kg (R-134)
