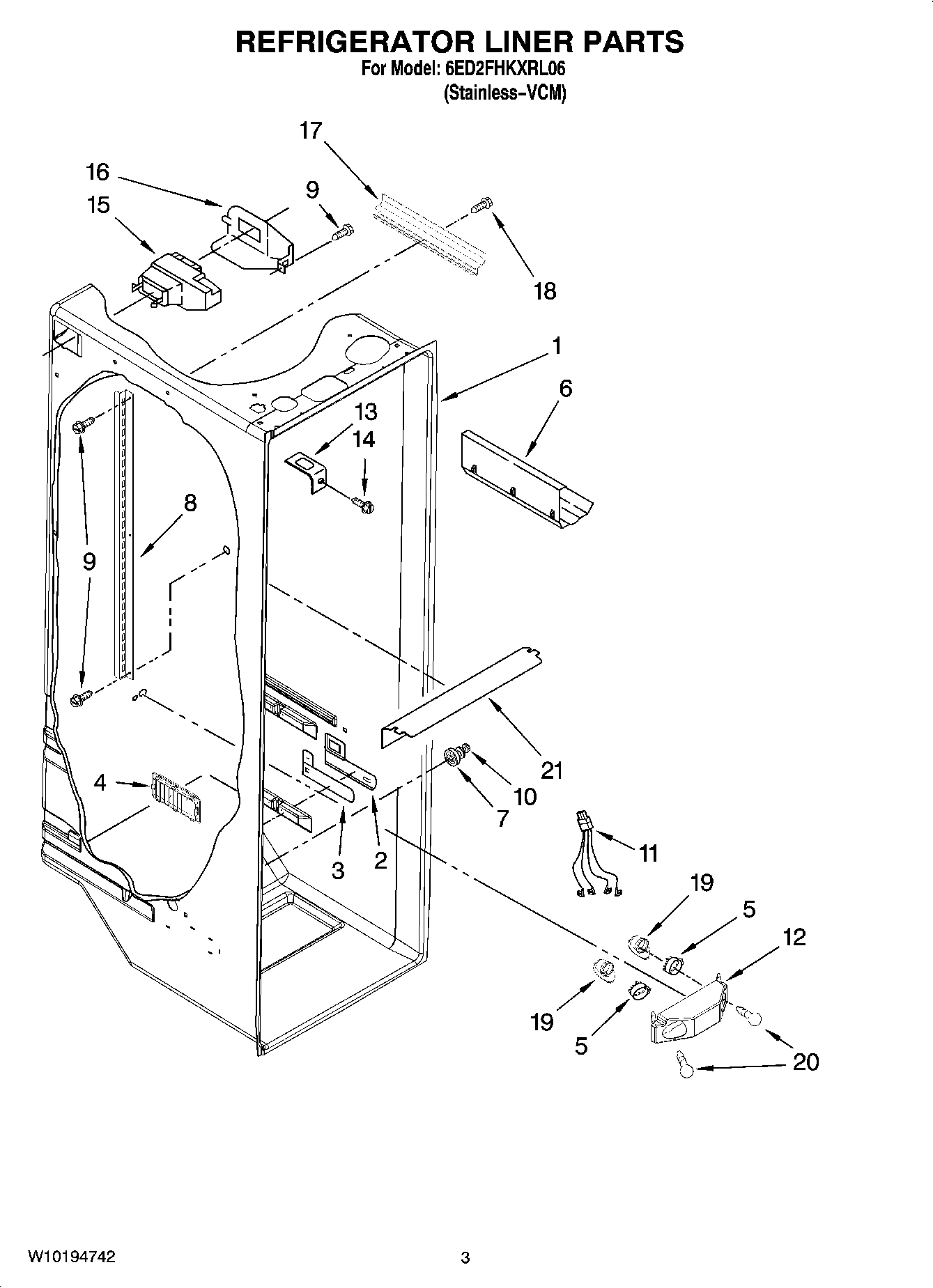

6ED2FHKXRL06 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	WP2175210 Whirlpool Refrigerator Shroud
6	W10777924 Whirlpool Refrigerator Wine Rack
7	W11223328 Whirlpool Refrigerator Shelf Stud
8	Shelf Ladder
9	WP489478 Whirlpool Refrigerator Screw
10	WP3-24004-109 Whirlpool Refrigerator Screw
11	2311637 Whirlpool Refrigerator Wire Harness
12	Bracket, Dual Crisper Light
13	WP2256085 Whirlpool Refrigerator Retainer
14	WP488488 Whirlpool Refrigerator Screw
15	WPW10151378 Whirlpool Refrigerator Diffuser
16	WP2212240 Whirlpool Refrigerator Cover
17	2150331 Whirlpool Refrigerator Wire Cover
18	W10759522 Whirlpool Screw
19	Socket
20	WP67002552 Whirlpool Refrigerator Light Bulb
21	Light Lens
