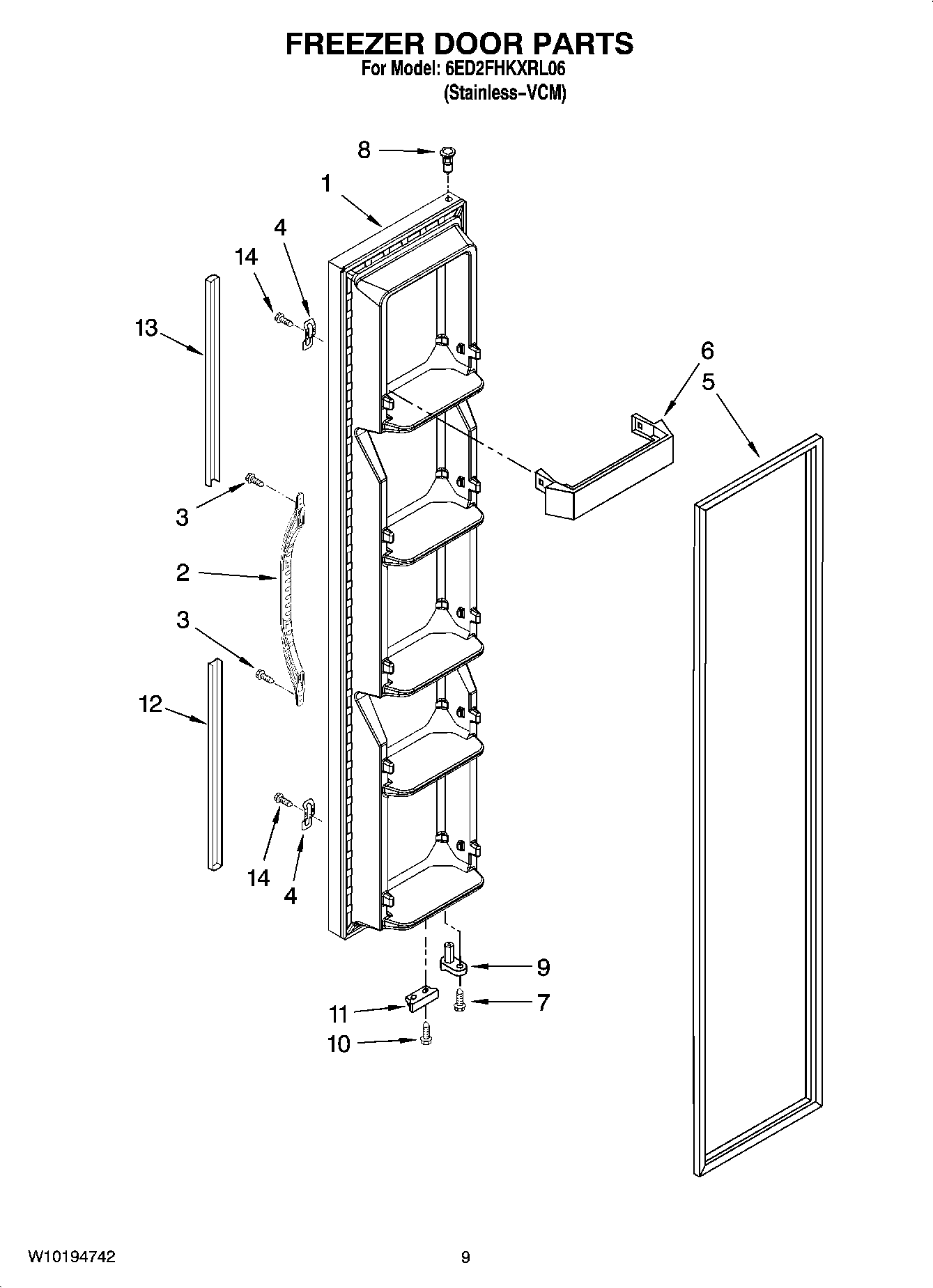

6ED2FHKXRL06 06 – FREEZER DOOR PARTS

6ED2FHKXRL06 06 – FREEZER DOOR PARTS

Written by

in

6ED2FHKXRL06 06 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 6) (Stainless-VCM)
2WP2186649B Whirlpool Refrigerator Handle
3WP489491 Whirlpool Refrigerator Screw
4WP2195327 Whirlpool Refrigerator Clip
52159080 Whirlpool Refrigerator Door Gasket
6Shelf Bin (4)
7WP3400012 Whirlpool Refrigerator Screw
8WP2182181 Whirlpool Refrigerator Thimble
9WP2182179 Whirlpool Cam Closer
10WP489483 Whirlpool Screw
11WP2206629B Whirlpool Refrigerator Bracket
12WP2194969B Whirlpool Refrigerator Handle Trim
13WP2194971B Whirlpool Refrigerator Handle Trim
14WP3400852 Whirlpool Refrigerator Screw
