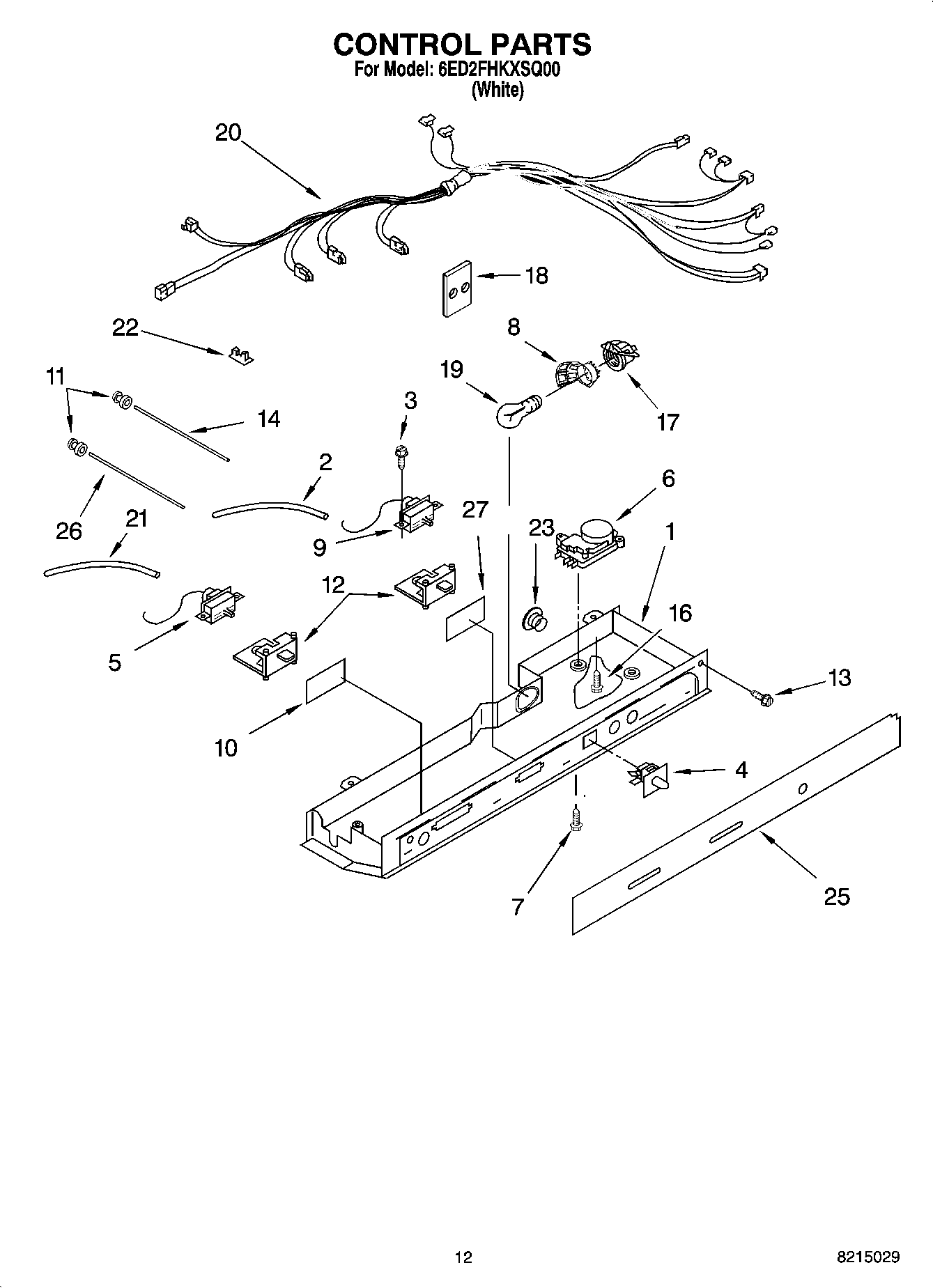

6ED2FHKXSQ00 08 – CONTROL PARTS

Products

Position	Product
1	2200135 Whirlpool Refrigerator Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	Thermostat (FC)
6	WP2188379 Whirlpool Refrigerator Defrost Timer
7	489392 Whirlpool Refrigerator Screw
8	WP2175210 Whirlpool Refrigerator Shroud
9	WP2161460 Whirlpool Refrigerator Thermostat
10	2172940 Whirlpool Window
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
14	Fiber Optic
16	WP488488 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	2172931 Whirlpool Refrigerator Shield
19	WP67002552 Whirlpool Refrigerator Light Bulb
20	Control Box Harness
22	CLIP, WIRING
23	940014 Whirlpool Refrigerator Primary Button Plug
25	Escutcheon, Control Box
26	Light Bar (FC)
27	Window
