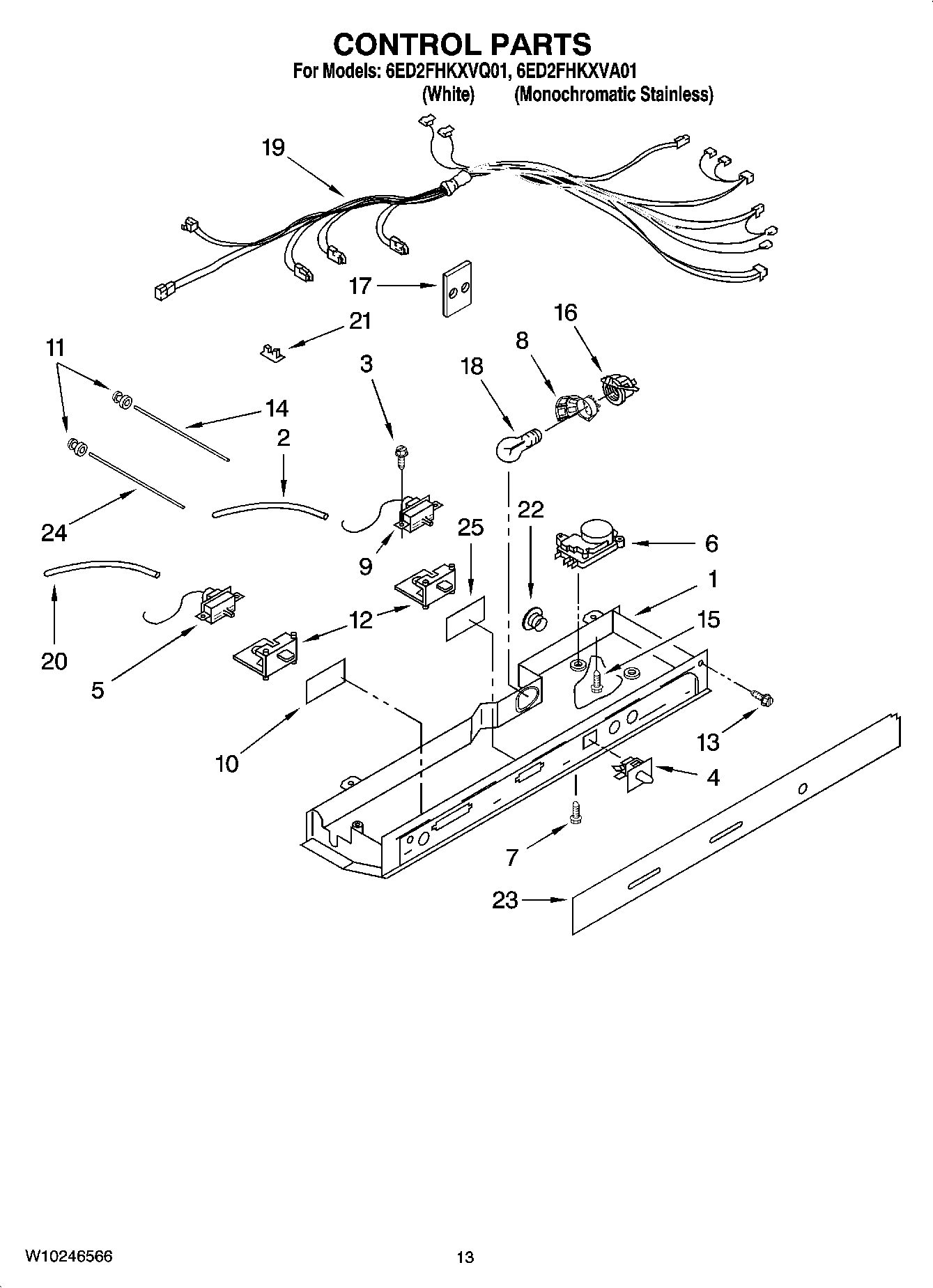

6ED2FHKXVA01 09 – CONTROL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	WPL 799833
	WPW10190943 Whirlpool Refrigerator Icemaker
	Miscellaneous
	Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
	FIELD INSTALLABLE ICE MAKER
	CLEANER, (STAINLESS STEEL)
	ACCESSORIES
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	TORX SCREW WRENCH
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	833938 Whirlpool Refrigerator Terminal
	WP503695 Whirlpool Refrigerator Sealer
	WP505587 Whirlpool Refrigerator Sealer
1	2200135 Whirlpool Refrigerator Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2321289 Whirlpool Refrigerator Thermostat
6	WP2188379 Whirlpool Refrigerator Defrost Timer
7	489392 Whirlpool Refrigerator Screw
8	SHROUD-LGHT SOCKET
9	WP2321305 Whirlpool Thermostat
10	2172940 Whirlpool Window
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
14	Fiber Optic
15	WP488488 Whirlpool Refrigerator Screw
16	W11447232 Whirlpool Refrigerator Socket
17	Heat Shield
18	WP67002552 Whirlpool Refrigerator Light Bulb
19	W10129766 Whirlpool Wire Harness
21	CLIP, WIRING
22	940014 Whirlpool Refrigerator Primary Button Plug
23	COVER CONTROL BOX
24	Light Bar (FC)
25	Window
