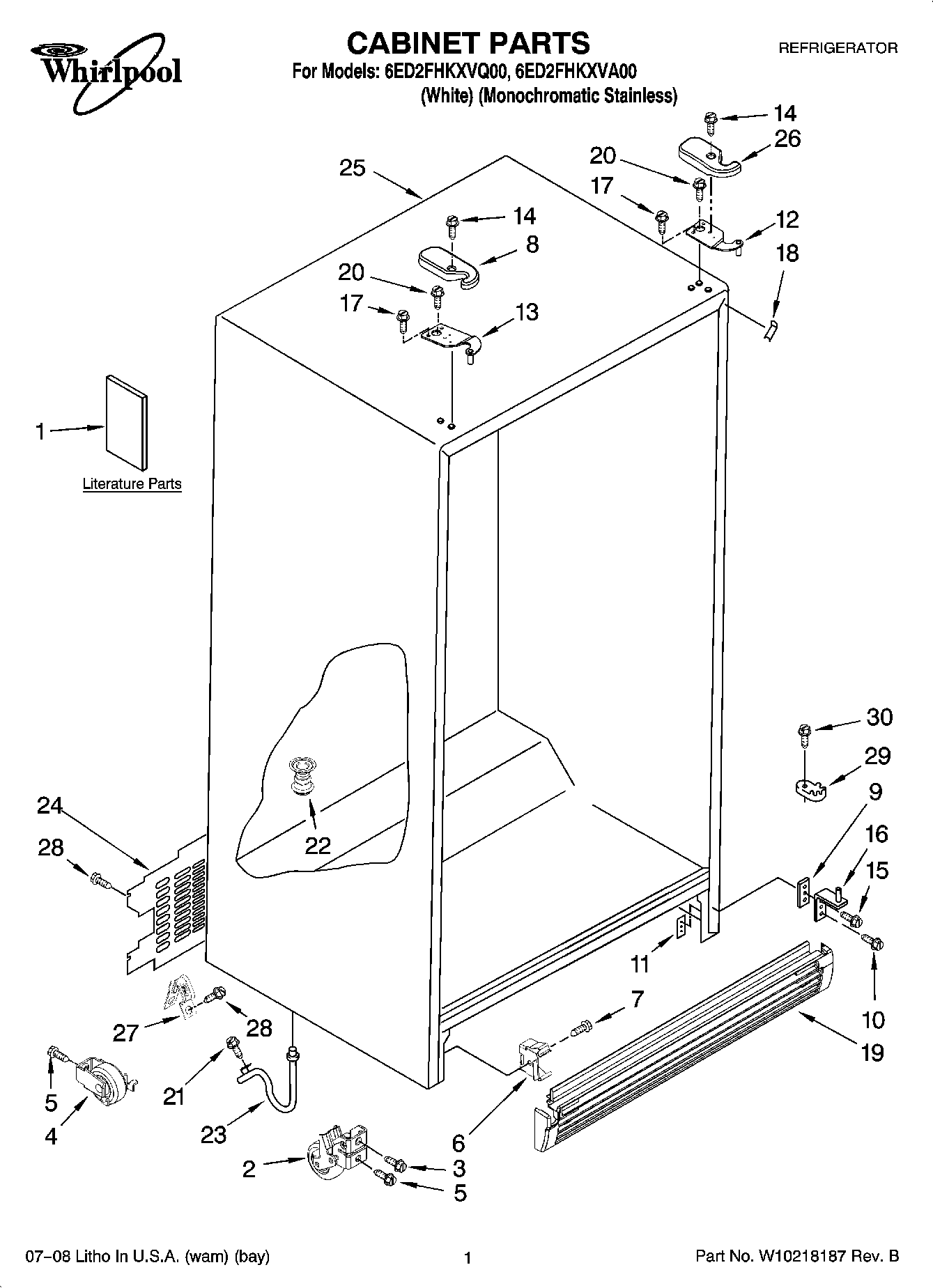

6ED2FHKXVQ00 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Instruction Sheet, Door Removal
1	Service & Wiring Sheet
1	Energy Guide
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489128 Whirlpool Refrigerator Screw
8	Hinge Cover (RC) (White)
8	Hinge Cover (RC) (Apollo Grey)
9	WP2209697 Whirlpool Refrigerator Shim
10	W10856122 Whirlpool Refrigerator Screw
11	WP2304249 Whirlpool Refrigerator Plate
12	WP2203771 Whirlpool Refrigerator Door Hinge
13	WP2203770 Whirlpool Refrigerator Door Hinge
14	WP8281227 Whirlpool Screw
15	WP489497 Whirlpool Screw
16	8201707 Whirlpool Door Hinge
17	W10853301 Whirlpool Refrigerator Screw
18	WPW10283959 Whirlpool Refrigerator Filler
18	W10851579 Whirlpool Refrigerator Filler
19	W10804014 Whirlpool Refrigerator Grille
19	Grille (Midnight Grey)
21	WP489464 Whirlpool Refrigerator Screw
22	W11566763 Whirlpool Fitting
23	Extension Tube
24	Cover, Unit
25	Cabinet, (Not A Serviceable Part)
26	Hinge Cover (FC) (Apollo Grey)
26	Hinge Cover (FC) (White)
27	489348 Whirlpool Refrigerator Tube Clamp
29	WPW10329686 Whirlpool Door Cam Black
30	WP489483 Whirlpool Screw
