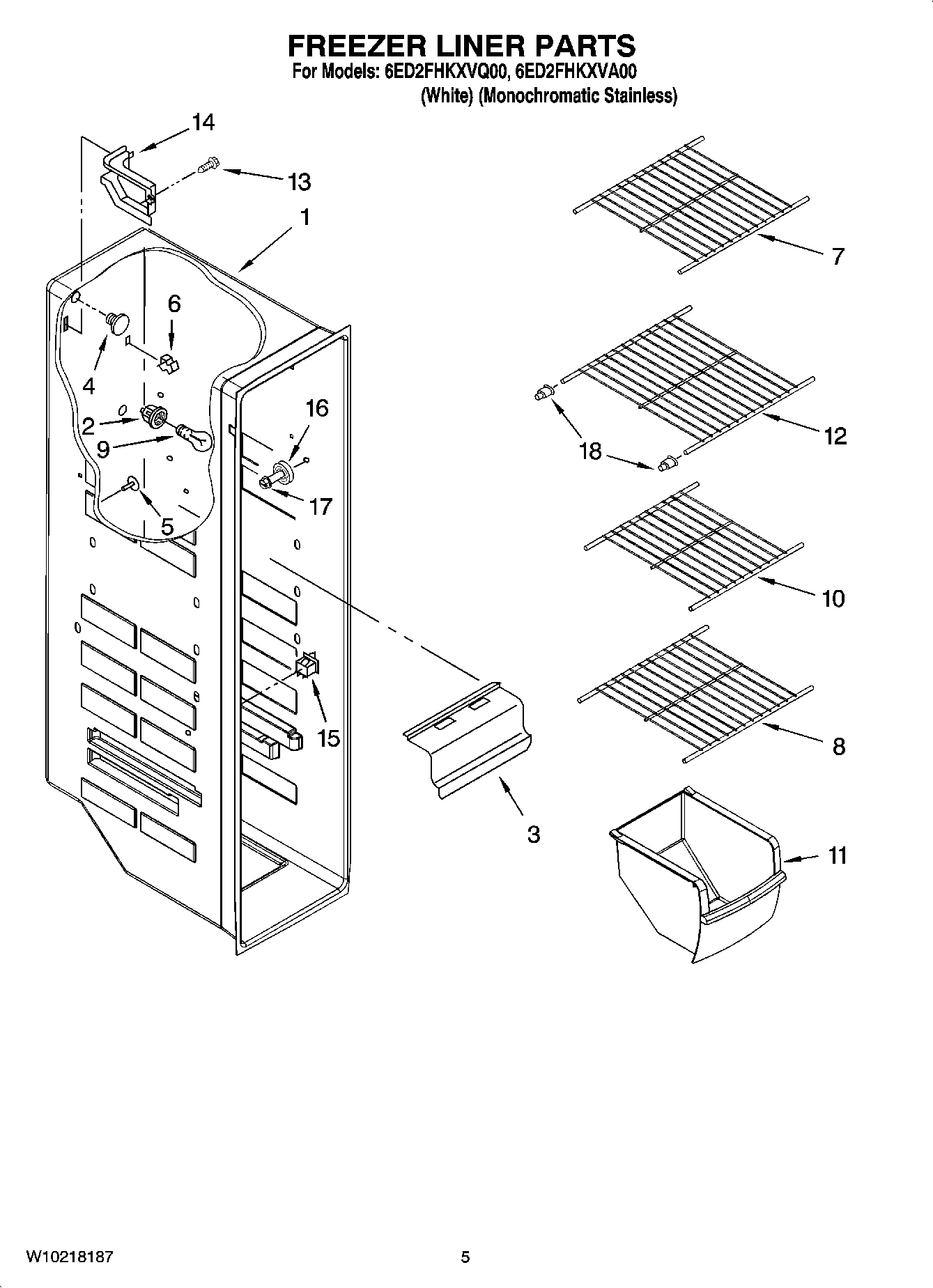

6ED2FHKXVQ00 04 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
2W11447232 Whirlpool Refrigerator Socket
3WP2155595 Whirlpool Refrigerator Light Lens
42223173 Whirlpool Refrigerator Tube Plug
5WP941839 Whirlpool Refrigerator Button Plug
62215823 Whirlpool Refrigerator Clip
7WPW10318951 Whirlpool Refrigerator Wire Shelf
8WPW10318949 Whirlpool Refrigerator Wire Shelf
9WP67002552 Whirlpool Refrigerator Light Bulb
10WPW10318953 Whirlpool Wire Shelf
11WP2309758 Whirlpool Refrigerator Freezer Bin
12WPW10318952 Whirlpool Wire Shelf
13WP489478 Whirlpool Refrigerator Screw
14Cover, Wiring
15Rocker Arm Switch
16WP2196483 Whirlpool Refrigerator Shelf Stud
17WP3400806 Whirlpool Screw
18WPW10130299 Whirlpool Refrigerator Cup
