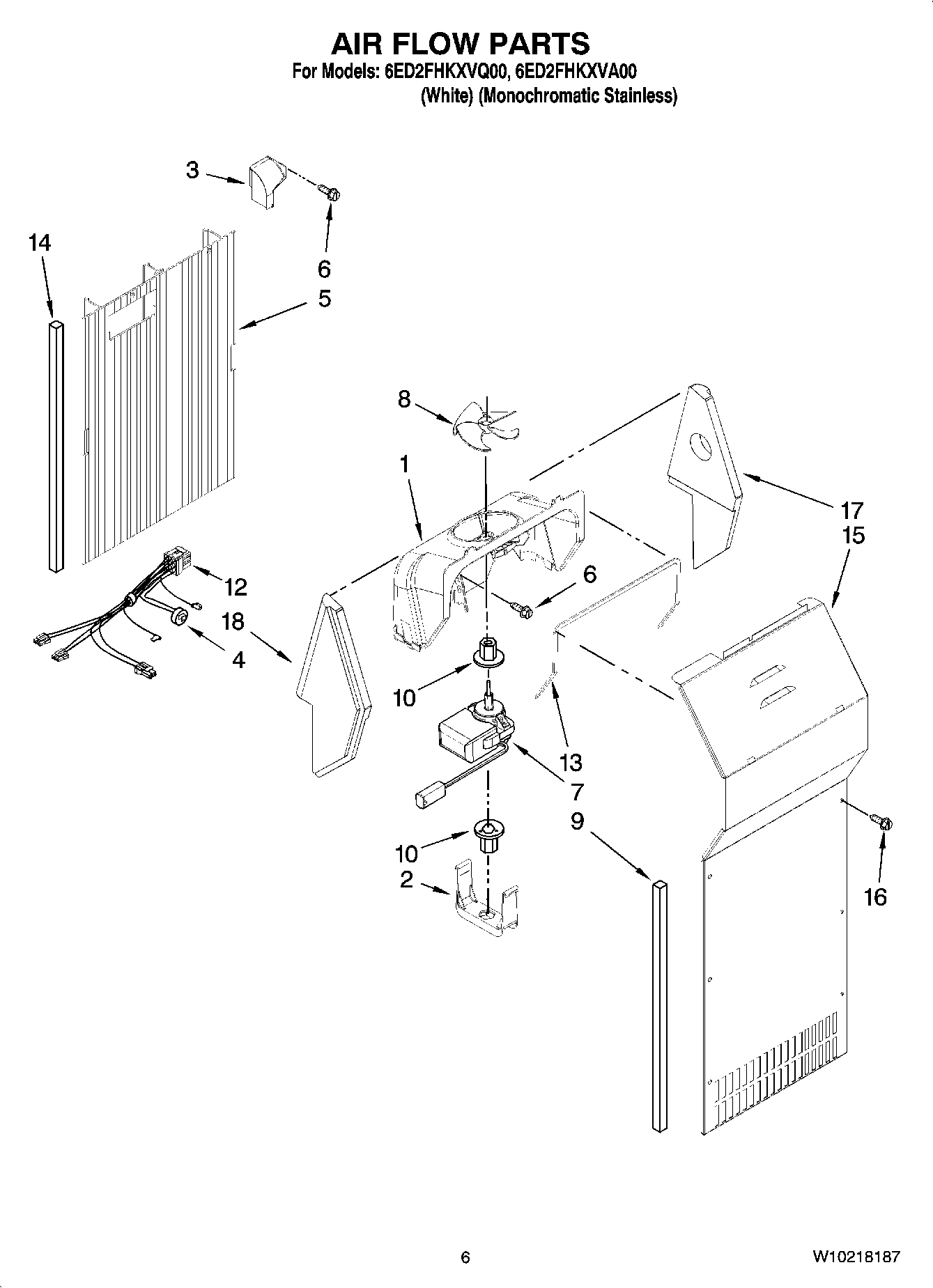

6ED2FHKXVQ00 05 – AIR FLOW PARTS

Products

PositionProduct
1W11254898 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3W10803597 Whirlpool Refrigerator Air Scoop
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5Air Duct Freezer
6WP489478 Whirlpool Refrigerator Screw
7WP2321275 Whirlpool Refrigerator Evaporator Motor
8WP2169142 Whirlpool Fan Blade
9WP2304241 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
12W10242395 Whirlpool Wire Harness
13WP2155789 Whirlpool Refrigerator Gasket
144388500 Whirlpool Refrigerator Gasket
154388357 Whirlpool Refrigerator Evaporator Cover
164389654 Whirlpool Screw
174388358 Whirlpool Refrigerator Support Bracket
