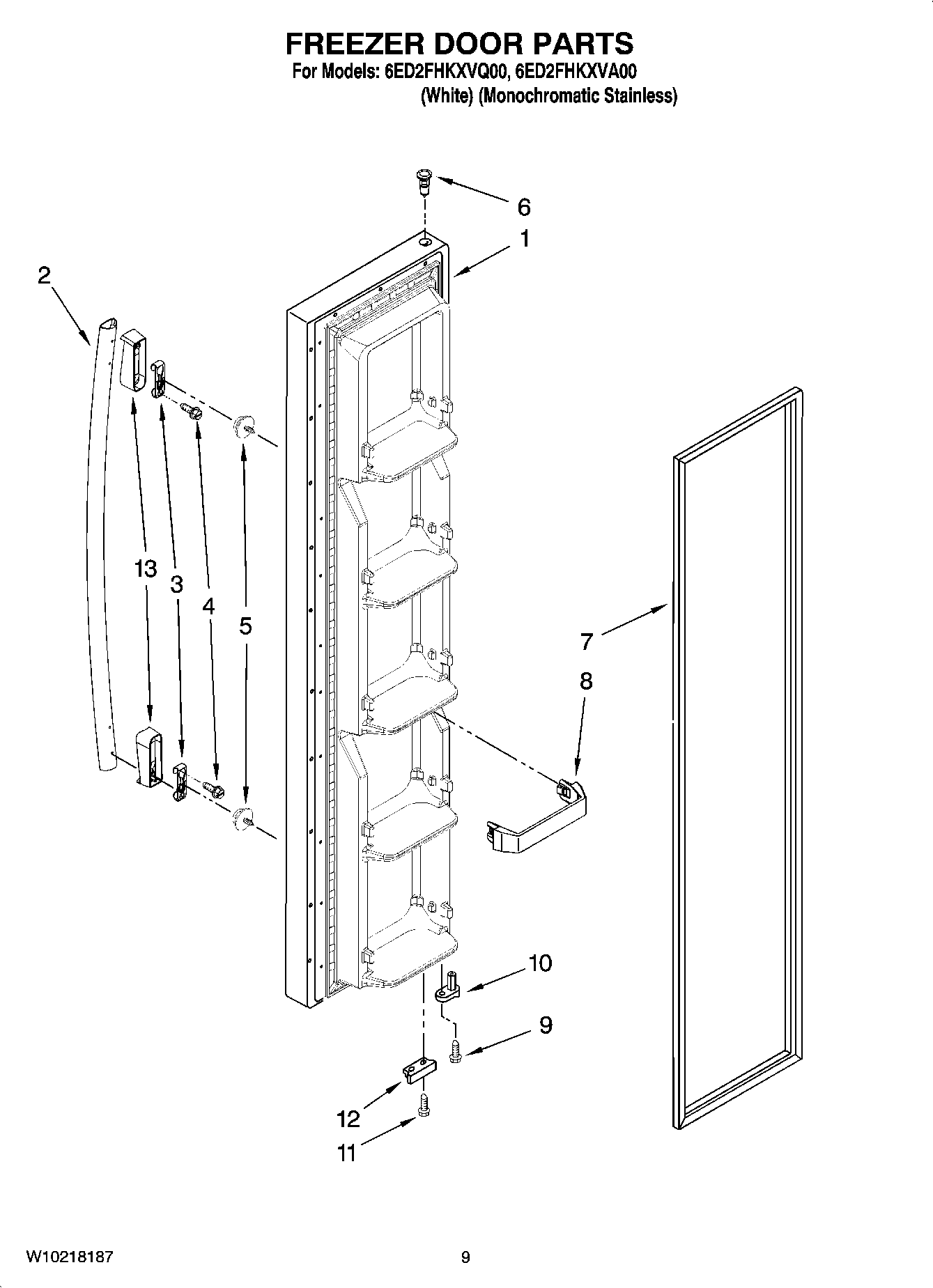

6ED2FHKXVQ00 07 – FREEZER DOOR PARTS

6ED2FHKXVQ00 07 – FREEZER DOOR PARTS

Written by

in

6ED2FHKXVQ00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 7) (White)
1FREEZER DOOR (INCLUDES ITEM No.8) (MONO SATINA)
2W10273555 Whirlpool Refrigerator Handle
2WPW10127761K Whirlpool Refrigerator Handle
3WP2255411 Whirlpool Refrigerator Clip
4WP8533988 Whirlpool Screw Fastener
5WPW10288153 Whirlpool Refrigerator Screw
6WP2182181 Whirlpool Refrigerator Thimble
7W10136733 Whirlpool Refrigerator FIP Gasket
72159072 Whirlpool Refrigerator FIP Gasket
8WP2156021 Whirlpool Refrigerator Door Trim
9WP3400012 Whirlpool Refrigerator Screw
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12WP2206629B Whirlpool Refrigerator Bracket
13End Cap (Apollo Grey)
13W10127769 Whirlpool Refrigerator Handle End Cap
