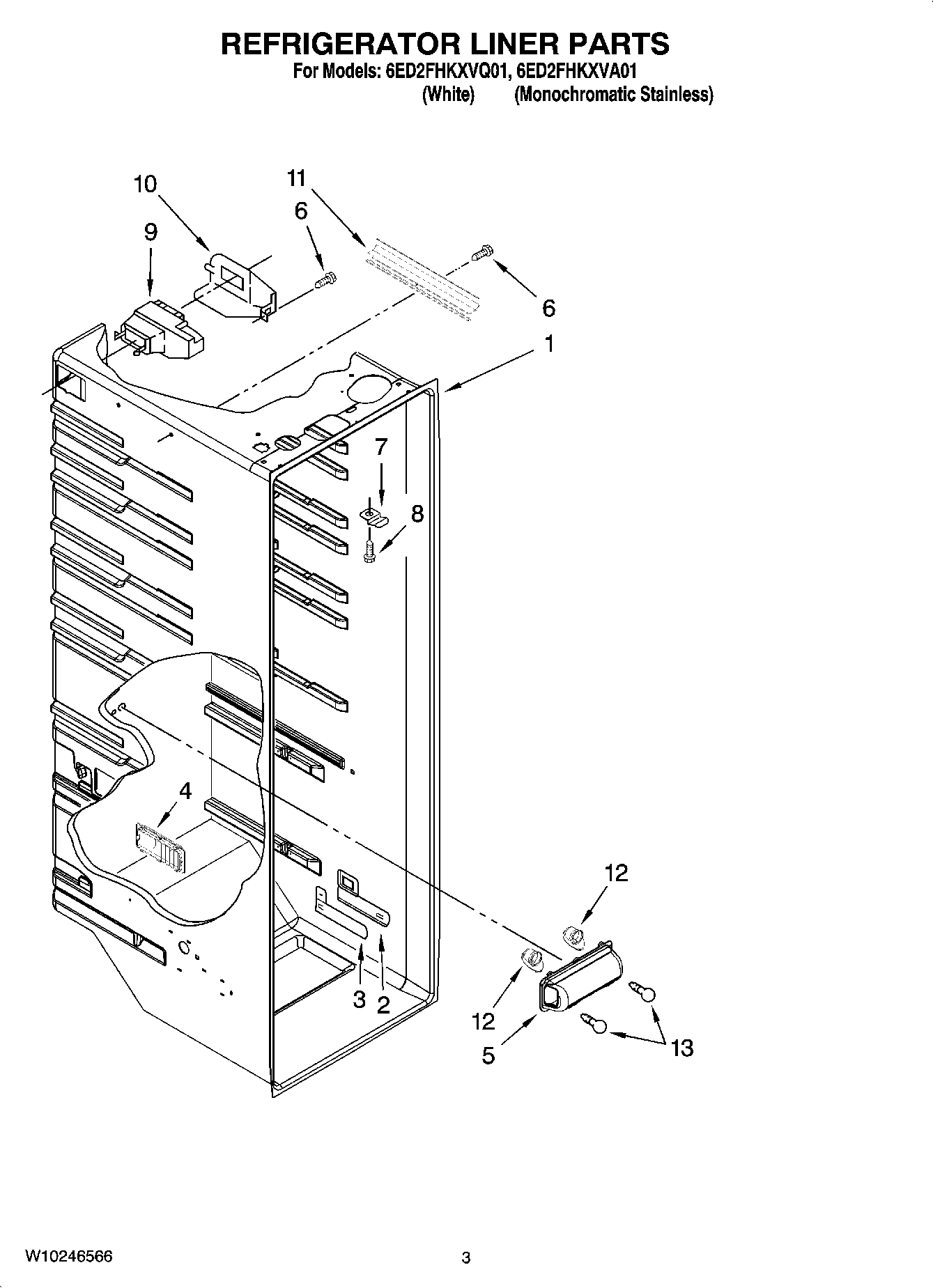

6ED2FHKXVQ01 02 – REFRIGERATOR LINER PARTS

6ED2FHKXVQ01 02 – REFRIGERATOR LINER PARTS

Written by

in

6ED2FHKXVQ01 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W11239891 Whirlpool Refrigerator Light Lens
6W10759522 Whirlpool Screw
72311612 Whirlpool Refrigerator Clip
8WP488488 Whirlpool Refrigerator Screw
9WPW10151378 Whirlpool Refrigerator Diffuser
10WP2212240 Whirlpool Refrigerator Cover
112150331 Whirlpool Refrigerator Wire Cover
12W11447232 Whirlpool Refrigerator Socket
13WP67002552 Whirlpool Refrigerator Light Bulb
