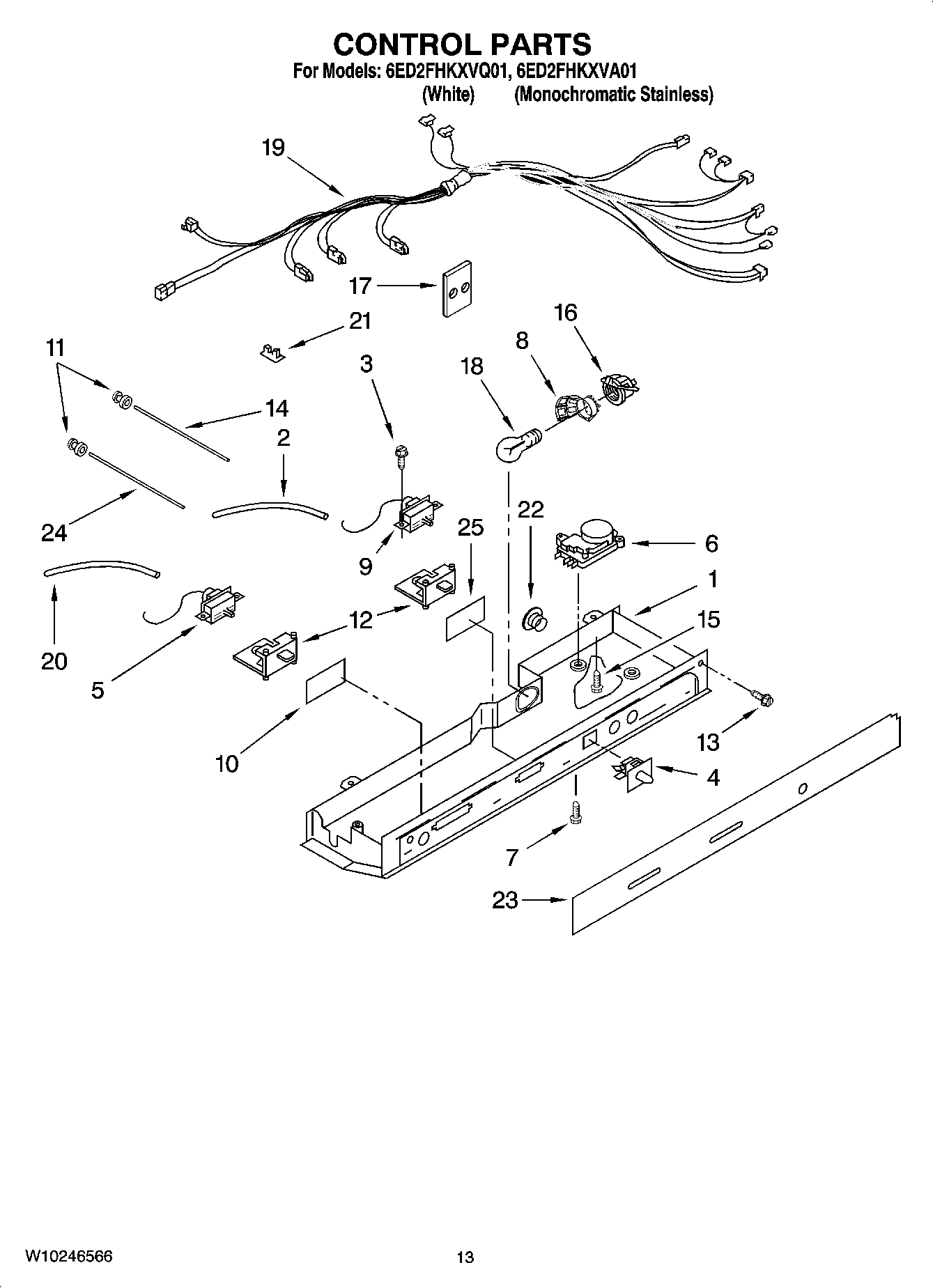

6ED2FHKXVQ01 09 – CONTROL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
WPL 799833
WPW10190943 Whirlpool Refrigerator Icemaker
Miscellaneous
Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
FIELD INSTALLABLE ICE MAKER
CLEANER, (STAINLESS STEEL)
ACCESSORIES
Torx Key
WP542638 Whirlpool Refrigerator Grease
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
TORX SCREW WRENCH
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
833938 Whirlpool Refrigerator Terminal
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
12200135 Whirlpool Refrigerator Control Box
2WP2196003 Whirlpool Refrigerator Bar Riser
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2321289 Whirlpool Refrigerator Thermostat
6WP2188379 Whirlpool Refrigerator Defrost Timer
7489392 Whirlpool Refrigerator Screw
8SHROUD-LGHT SOCKET
9WP2321305 Whirlpool Thermostat
102172940 Whirlpool Window
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
14Fiber Optic
15WP488488 Whirlpool Refrigerator Screw
16W11447232 Whirlpool Refrigerator Socket
17Heat Shield
18WP67002552 Whirlpool Refrigerator Light Bulb
19W10129766 Whirlpool Wire Harness
21CLIP, WIRING
22940014 Whirlpool Refrigerator Primary Button Plug
23COVER CONTROL BOX
24Light Bar (FC)
25Window
