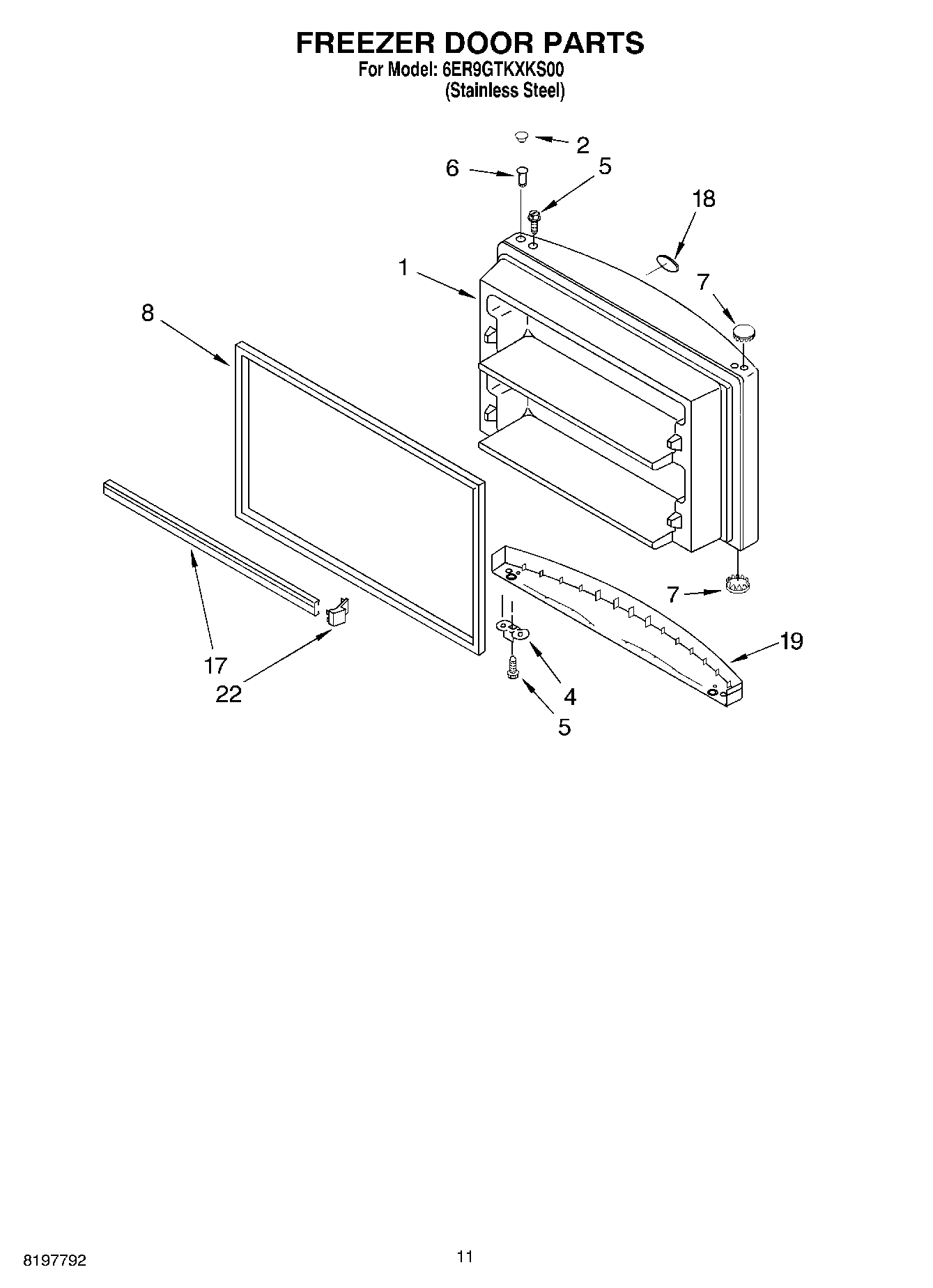

6ER9GTKXKS00 06 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Illus. 4 & 6) (Stainless Steel)
2	WP2212651 Whirlpool Refrigerator Button Plug
4	W11745278 Whirlpool Bracket
5	WP681249 Whirlpool Screw Assembly
6	WP2183003 Whirlpool Thimble
7	HOLE PLUG, ENDCAP (BLACK)
8	2177304 Whirlpool Refrigerator FIP Gasket
17	Trim-Door (2)
18	WP2213265 Whirlpool Refrigerator Nameplate
19	Endcap, Handle (Black)
22	285006 Whirlpool Spray
22	WPL 799832
22	WPL 799833
22	WPL 876029
22	ENDCAP
22	WPW10190943 Whirlpool Refrigerator Icemaker
22	72032 Whirlpool Touch Up Paint Black
22	CEMENT, ALUMILASTIC (1 1/4 OZ.)
22	TAPE, VINYL (3/4 X 108“)
22	72017 Whirlpool Appliance Touch-Up Paint White
22	799344 Whirlpool Refrigerator Paint
22	212643 Whirlpool Refrigerator Permagum Sealer
22	350942 Whirlpool Spray Paint
22	4392899 Whirlpool Biscuit Touch-Up Paint
22	4392901 Whirlpool Biscuit Spray Paint
22	511873 Whirlpool Refrigerator Paint
22	606755 Whirlpool Refrigerator Bag
22	833938 Whirlpool Refrigerator Terminal
22	876370 Whirlpool Refrigerator Insulation
22	WP503695 Whirlpool Refrigerator Sealer
22	WP505587 Whirlpool Refrigerator Sealer
22	WP542638 Whirlpool Refrigerator Grease
22	Torx Key
22	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
22	350930 Whirlpool White Spray Paint
