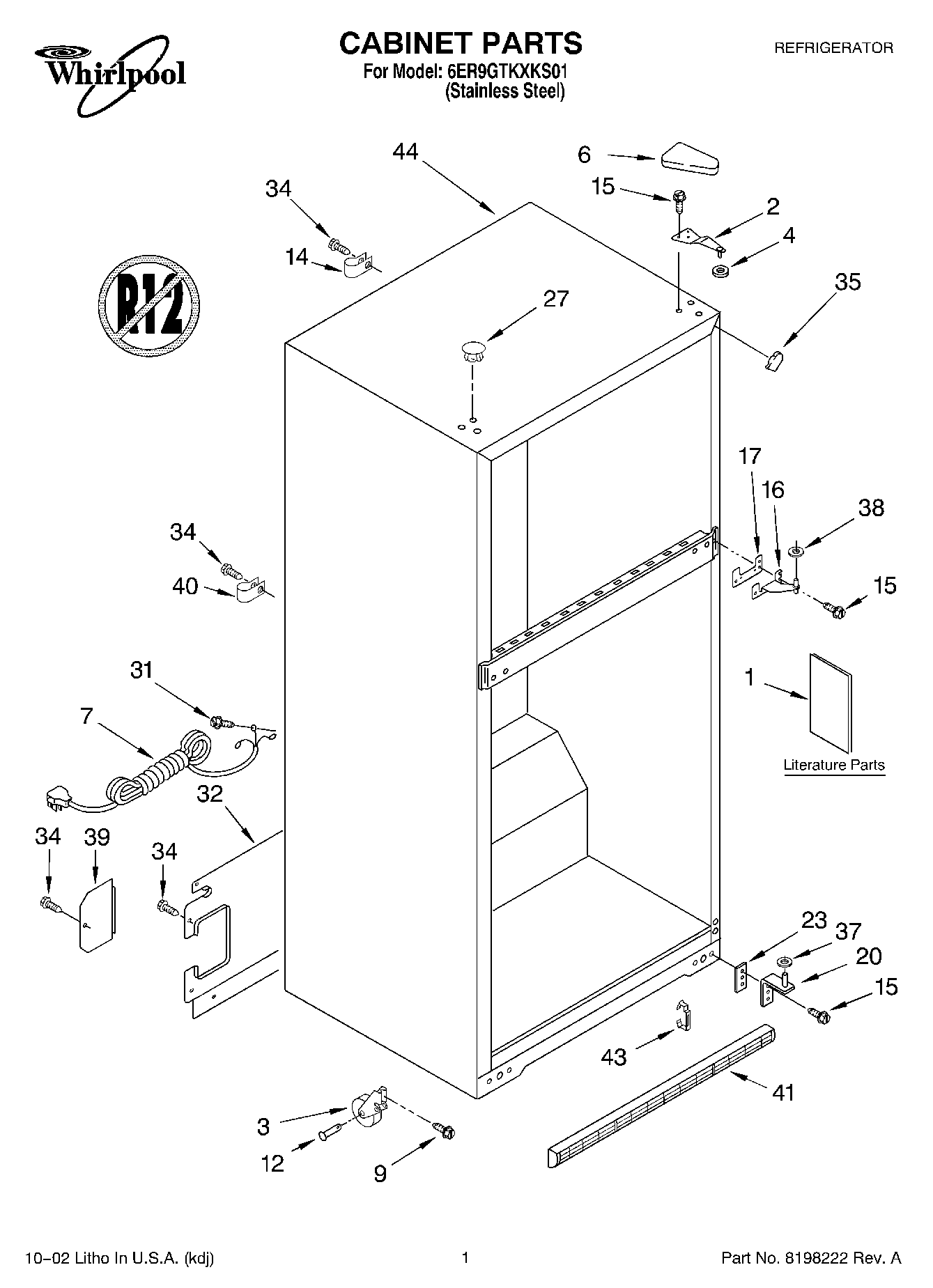

6ER9GTKXKS01 01 – CABINET, LITERATURE

Products

Position	Product
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
1	Energy Label
1	Literature Parts (Install Instr., Australia)
1	Literature Parts (Serivce & Wiring Sheet)
1	Literature Parts (Use & Care Guide)
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
6	WP2213363 Whirlpool Refrigerator Cover
7	Service Cord
9	WP3400504 Whirlpool Refrigerator Screw
12	W11594405 Whirlpool Axle
14	489348 Whirlpool Refrigerator Tube Clamp
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
20	WP2254473 Whirlpool Refrigerator Door Hinge
23	Shim, Bottom Hinge
27	WP2183998 Whirlpool Refrigerator Button Plug
31	WP489442 Whirlpool Refrigerator Screw
32	WP2189475 Whirlpool Refrigerator Unit Cover
34	WP489464 Whirlpool Refrigerator Screw
35	W11252732 Whirlpool Refrigerator Filler
37	WP487576 Whirlpool Washer
38	WP489467 Whirlpool Hinge Shim
39	Cover, Water Valve
40	WP488366 Whirlpool Refrigerator Clamp
41	Grille (Black)
43	CLIP, GRILLE
44	Cabinet (Not A Serviceable Part)
