6ER9GTKXKS01 04 – REFRIGERATOR DOOR

6ER9GTKXKS01 04 – REFRIGERATOR DOOR

Written by

in

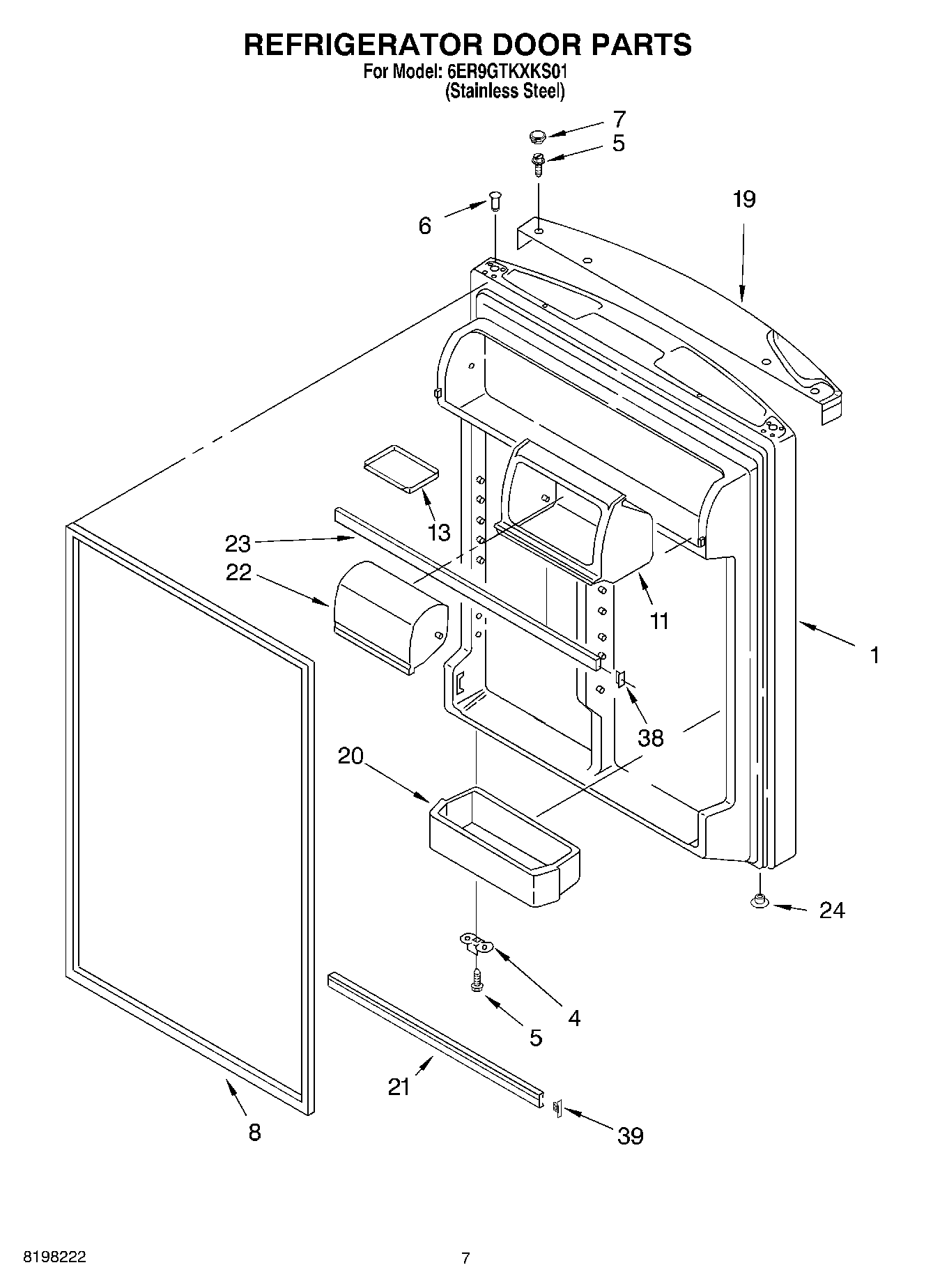

6ER9GTKXKS01 04 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Illus. 6 & 8) (Stainless Steel)
4W11745278 Whirlpool Bracket
5WP681249 Whirlpool Screw Assembly
6WP2183003 Whirlpool Thimble
7WP2212651 Whirlpool Refrigerator Button Plug
82177305 Whirlpool Refrigerator Door FIP Gasket
11Housing Compartment
13Tray, Door
19Endcap, Handle (Black)
20Bin, Door (4)
21WPW10421484 Whirlpool Refrigerator Door Trim
22DOOR-COMP
23WP2159312 Whirlpool Refrigerator Door Trim
24HOLE PLUG, ENDCAP (BLACK)
38Endcap, Door Trim
39WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
