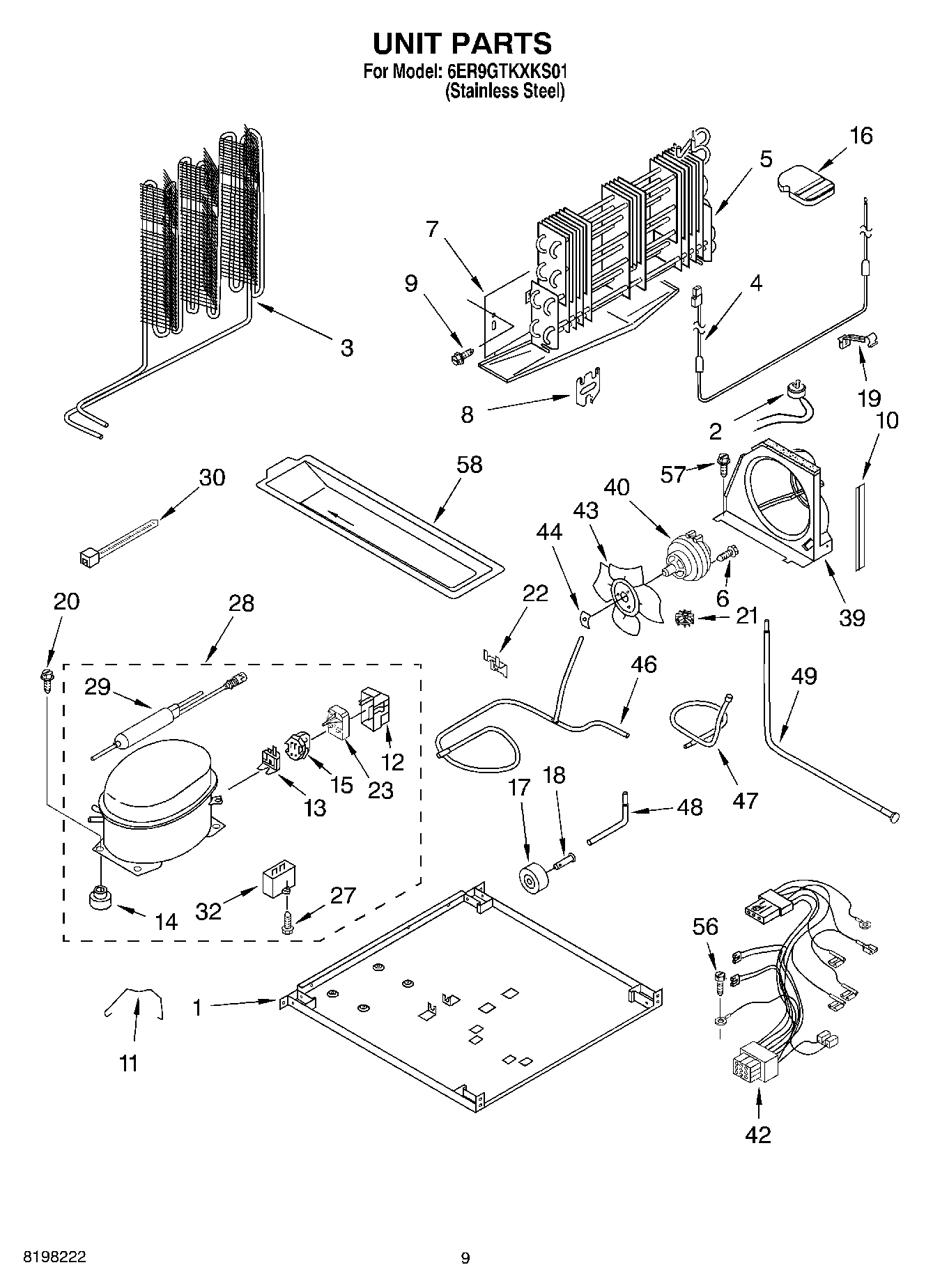

6ER9GTKXKS01 05 – UNIT

Products

Position	Product
1	Plate, Unit Mounting
2	WP2182381 Whirlpool Refrigerator Bimetallic Defrost
3	WP2214960 Whirlpool Refrigerator Condenser
4	Heater, Defrost
5	Evaporator Assy.
6	WP8281196 Whirlpool Screw
7	Drain Pan
8	Bracket, Heater
9	WP489478 Whirlpool Refrigerator Screw
10	Extension, Air Baffle
11	STRAP
12	WP61002138 Whirlpool Refrigerator Terminal Cover
13	2169410 Whirlpool Refrigerator Overload
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	WP2262184 Whirlpool Refrigerator Start Relay
16	Support Block
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	Grommet
22	Clip, Capacitator
23	Start-Device Combination (Start Relay and Overload for Production Compressor Only)
27	W11693756 Whirlpool Screw Assembly
28	Installation Kit
28	Compressor (Includes Items 12,13,14, 29 & 32) (Also Order
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
32	WP2201147 Whirlpool Refrigerator Capacitor
32	2321245 Whirlpool Refrigerator Capacitor
39	Air Baffle
40	8201703 Whirlpool Refrigerator Condenser Motor
42	Wire Assembly, Unit
43	Blade, Fan
44	WP486692 Whirlpool Refrigerator Nut
46	2205533 Whirlpool Refrigerator Tube
47	2214924 Whirlpool Refrigerator Tube
48	2154109 Whirlpool Refrigerator Tube
49	Tube, Transition
56	WP489128 Whirlpool Refrigerator Screw
57	3400518 Whirlpool Oven Foot Mount Screw
58	VALVE, ACCESS (5/8“)
58	VALVE, ACCESS (1/2“)
58	876764 Whirlpool Refrigerator Primary Valve
58	978026 Whirlpool Refrigerator Primary Valve
58	978027 Whirlpool Refrigerator Primary Valve
58	Evaporator Tray
58	WP978025 Whirlpool Refrigerator Valve
58	978030 Whirlpool Refrigerator Valve
