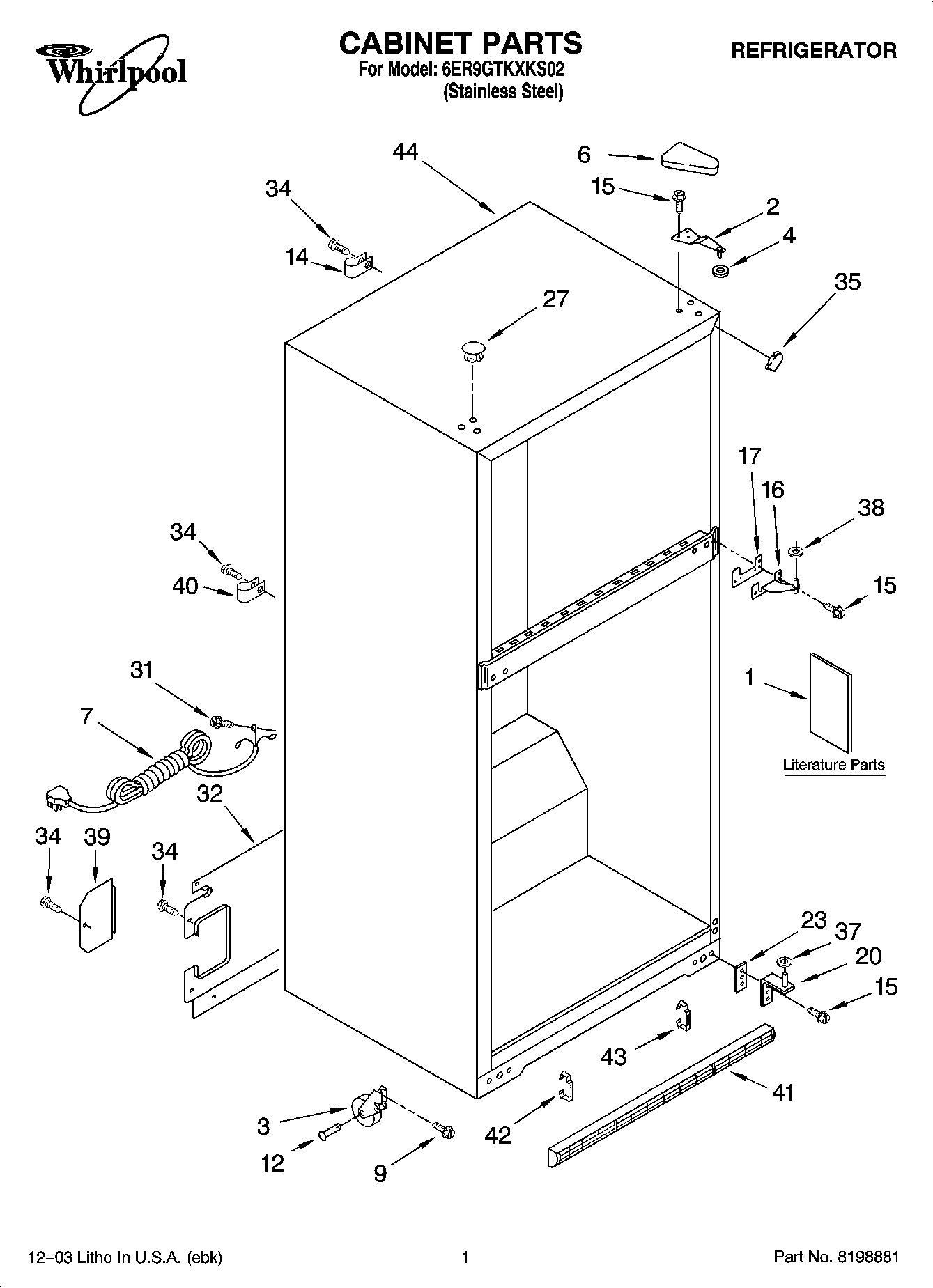

6ER9GTKXKS02 01 – CABINET PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Energy Label
1Literature Parts (Do-It-Yourself Manual Ref./Frz.)
1Literature Parts (Use & Care Guide)
1Literature Parts (Service & Wiring Sheet)
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
6WP2213363 Whirlpool Refrigerator Cover
7Service Cord
9WP3400504 Whirlpool Refrigerator Screw
12W11594405 Whirlpool Axle
14489348 Whirlpool Refrigerator Tube Clamp
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
20WP2254473 Whirlpool Refrigerator Door Hinge
23Shim, Bottom Hinge
27WP2183998 Whirlpool Refrigerator Button Plug
31WP489442 Whirlpool Refrigerator Screw
32WP2189475 Whirlpool Refrigerator Unit Cover
34WP489464 Whirlpool Refrigerator Screw
35W11252732 Whirlpool Refrigerator Filler
37WP487576 Whirlpool Washer
38WP489467 Whirlpool Hinge Shim
39Cover, Water Valve
40WP488366 Whirlpool Refrigerator Clamp
41Grille (Includes Illus. 4 & 24) (Black)
42CLIP, GRILLE
432254385 Whirlpool Refrigerator Clip
44Cabinet (Not A Serviceable Part)
