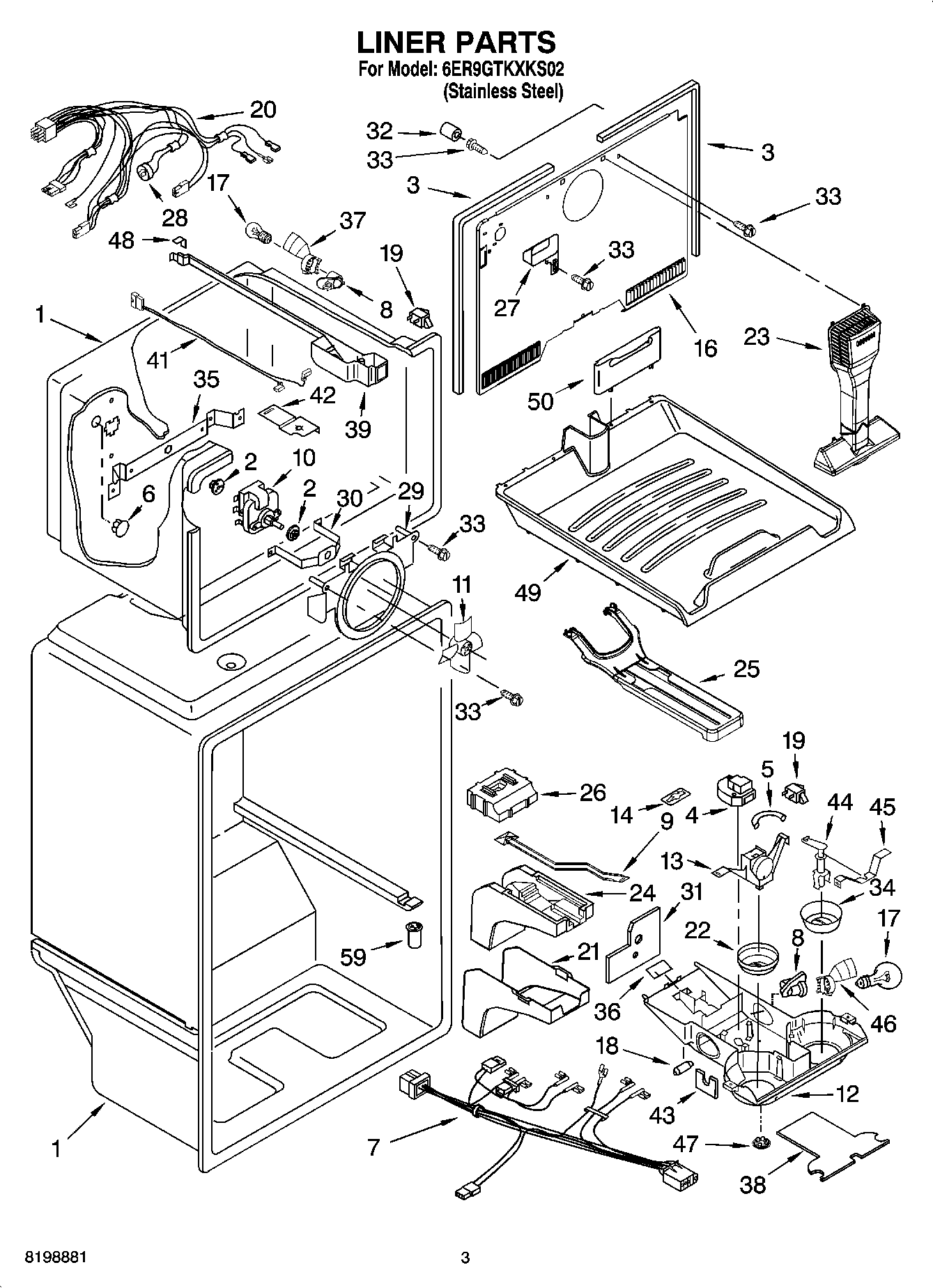

6ER9GTKXKS02 02 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WP2321259 Whirlpool Refrigerator Defrost Timer
5	Thermostat Tube Barrier
6	WP941839 Whirlpool Refrigerator Button Plug
7	Wire Assy. Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	WP2321273 Whirlpool Refrigerator Evaporator Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assy. (Includes Items 5, 18 & 36)
14	Clip, Defrost Timer
16	Cover-Evaporator
17	WP67002552 Whirlpool Refrigerator Light Bulb
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Wire Assembly, Freezer Compartment (Includes Illus. 35)
21	Cover, Air Diffuser
22	W10829461 Whirlpool Refrigerator Thermal Knob
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Retainer, Freezer Floor
26	Air Diffuser, Top
27	Cover, Hole
28	WP2182381 Whirlpool Refrigerator Bimetallic Defrost
29	Bracket, Fan Motor
30	Bracket, Evap. Fan, Front
31	Shield, heat
32	WP487996 Whirlpool Refrigerator Cap Tube
33	WP489478 Whirlpool Refrigerator Screw
34	Knob, Damper
35	Bracket, Evap. Fan, Rear
36	WP2205079 Whirlpool Refrigerator Seal
37	WP2175210 Whirlpool Refrigerator Shroud
38	Shield
39	Housing Base
41	Wiring Harness, Freezer Light
42	Electrical Shield, Freezer Light
43	Foil, Control Box
44	Post, Damper
45	Bracket, Damper Knob
46	Shroud, Freezer Light
47	940014 Whirlpool Refrigerator Primary Button Plug
48	Gasket, Rear
49	Pullout, Freezer Floor
50	REAR FENCE PULL-OUT FREEZER FLOOR
59	WP2210509 Whirlpool Refrigerator Tub Valve
