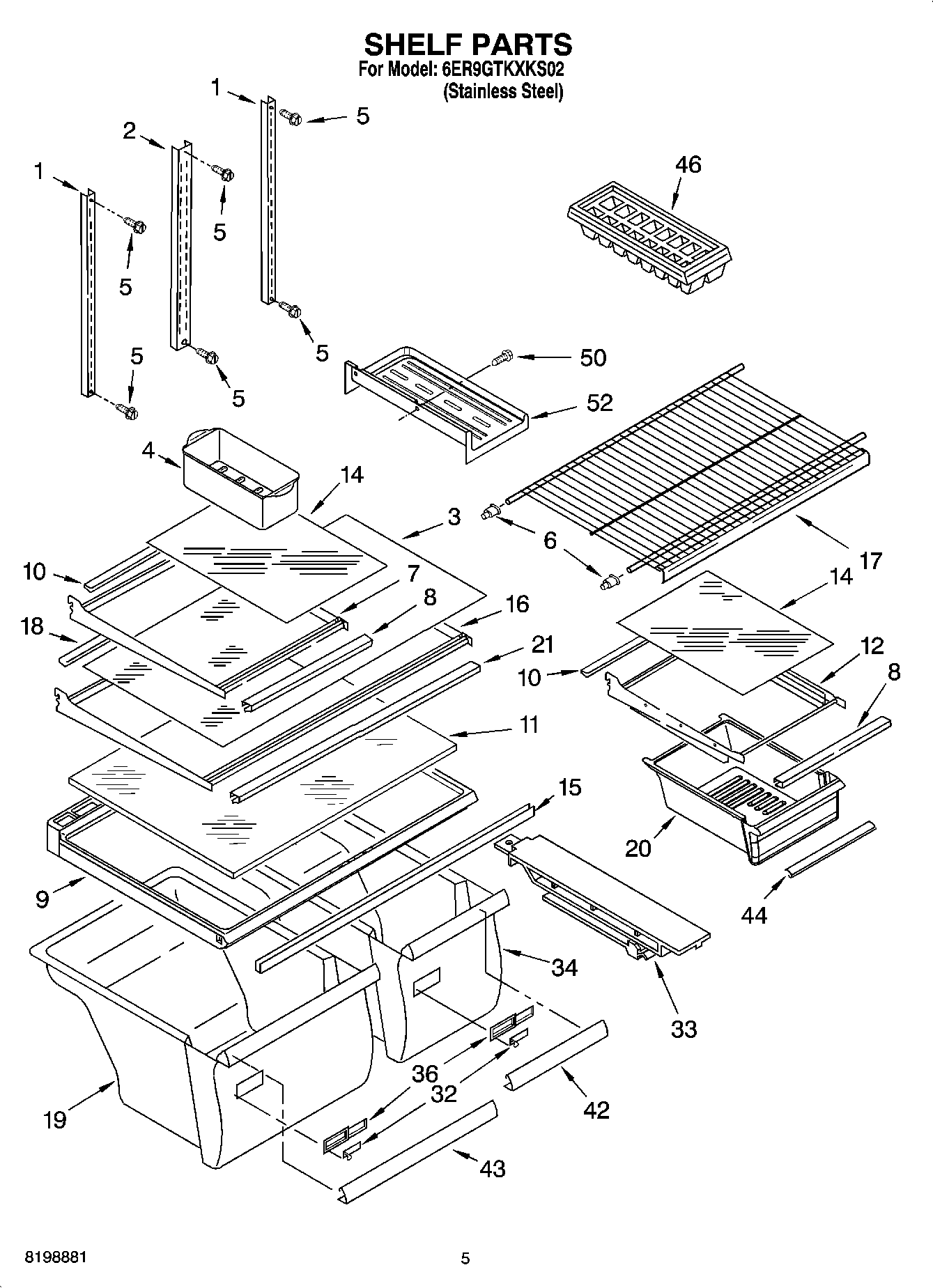

6ER9GTKXKS02 03 – SHELF PARTS

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder
3	Glass, Full Shelf
4	W10136387A Whirlpool Refrigerator Egg Container
6	2163762 Whirlpool Refrigerator Cup Assembly
7	Shelf, Cantilever
8	Trim, Shelf Front
9	WP2314548 Whirlpool Refrigerator Cover
10	WP2188689 Whirlpool Refrigerator Shelf Trim
11	WP2169921 Whirlpool Refrigerator Glass Shelf
12	Shelf, Cantilever Meat Pan
14	Glass, Meat Cover
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Cantilever (Includes No.3, No.10 and No.18)
17	WP2176275 Whirlpool Refrigerator Wire Shelf
19	W10854037 Whirlpool Refrigerator Crisper Pan
20	PAN-MEAT
21	Trim, Shelf (Front)
32	WP2176222 Whirlpool Refrigerator Slide
33	WP2163835 Whirlpool Track Assembly
34	W10856580 Whirlpool Crisper Pan
36	WP2212446 Whirlpool Refrigerator Control Body
42	Trim, Crisper Pan
43	WP2195341 Whirlpool Refrigerator Pan Trim
44	Trim, Meat Pan
46	WP841180A Whirlpool Microwave Glass Turntable Tray
50	WP489478 Whirlpool Refrigerator Screw
52	Shelf, Ice Tray
