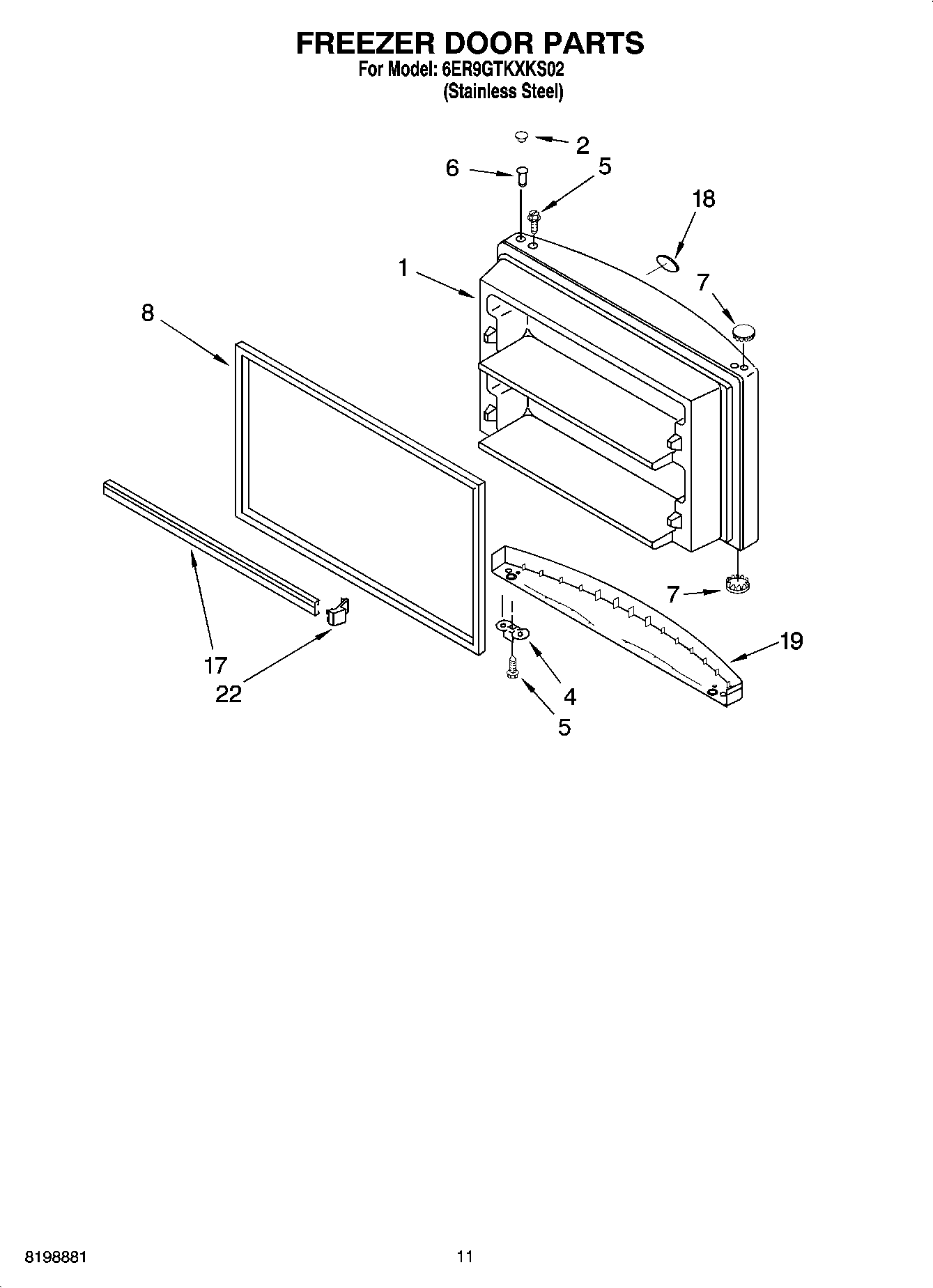

6ER9GTKXKS02 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI141709A
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799832
	WPL 799833
	WPL 876029
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WPL ARI141710A
	WPW10190943 Whirlpool Refrigerator Icemaker
	WPL ARI141706A
	WPL ARI141707A
	WPL ARI141708A
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	511873 Whirlpool Refrigerator Paint
	876370 Whirlpool Refrigerator Insulation
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
1	Freezer Door (Includes Illus. 4 & 6) (Stainless Steel)
2	WP2212651 Whirlpool Refrigerator Button Plug
4	W11745278 Whirlpool Bracket
5	WP681249 Whirlpool Screw Assembly
6	WP2183003 Whirlpool Thimble
7	HOLE PLUG, ENDCAP (BLACK)
8	2177304 Whirlpool Refrigerator FIP Gasket
17	Trim-Door (2)
18	Nameplate
19	Endcap, Handle (Black)
22	ENDCAP
