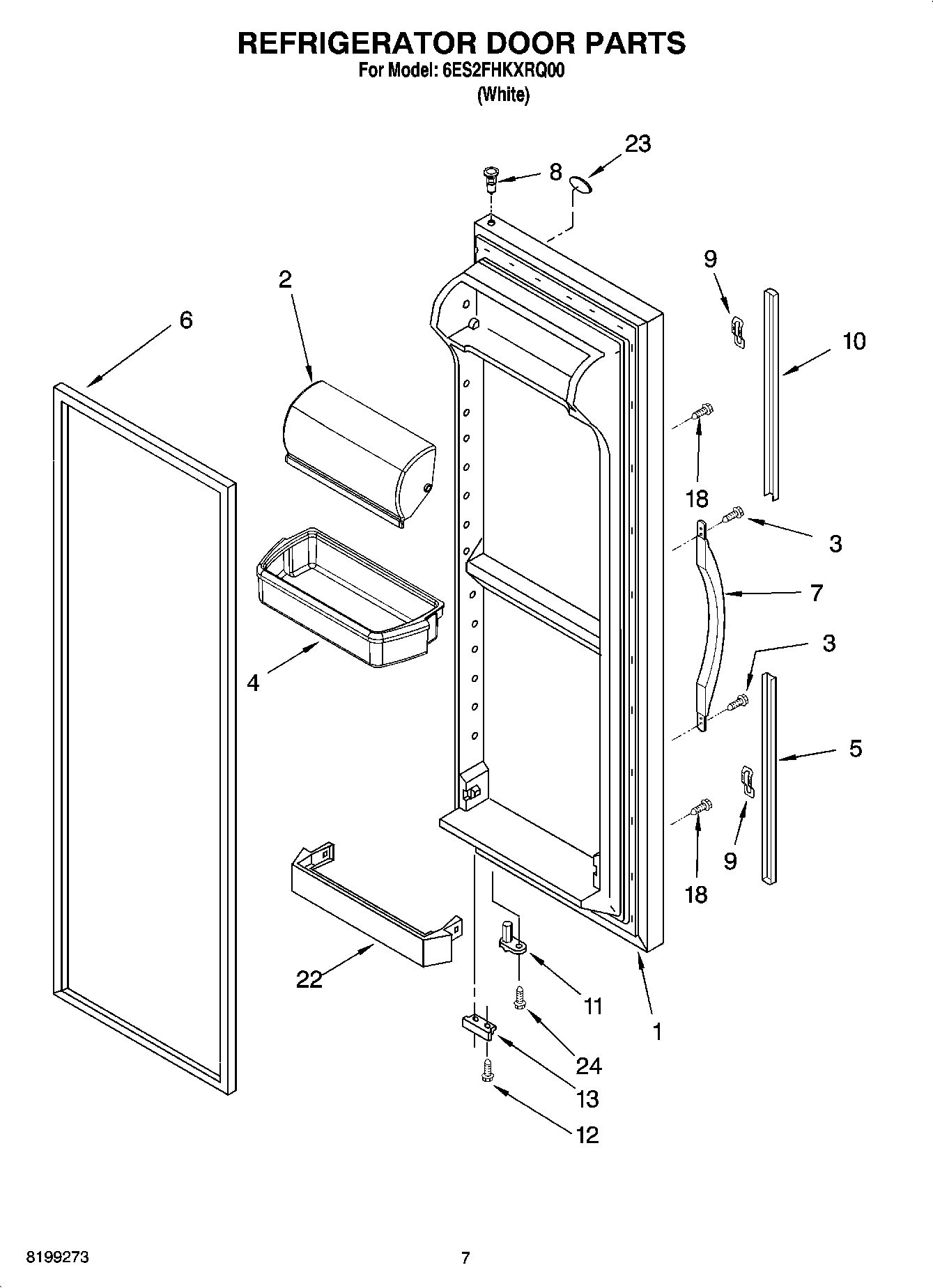

6ES2FHKXRQ00 05 – REFRIGERATOR DOOR PARTS

6ES2FHKXRQ00 05 – REFRIGERATOR DOOR PARTS

Written by

in

6ES2FHKXRQ00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item No.8) (White)
2WP2256101 Whirlpool Dairy Door
3WP489491 Whirlpool Refrigerator Screw
4WP2187172 Whirlpool Refrigerator Door Shelf Bin
5Trim, Door-Bottom (White)
62159073 Whirlpool Refrigerator Door Gasket
7Handle (White)
9WP2195327 Whirlpool Refrigerator Clip
10Trim, Door-Top (White)
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13Bracket, Door Stop
18WP3400852 Whirlpool Refrigerator Screw
22WP2177962K Whirlpool Refrigerator Door Trim
23WP2213265 Whirlpool Refrigerator Nameplate
24WP3400012 Whirlpool Refrigerator Screw
