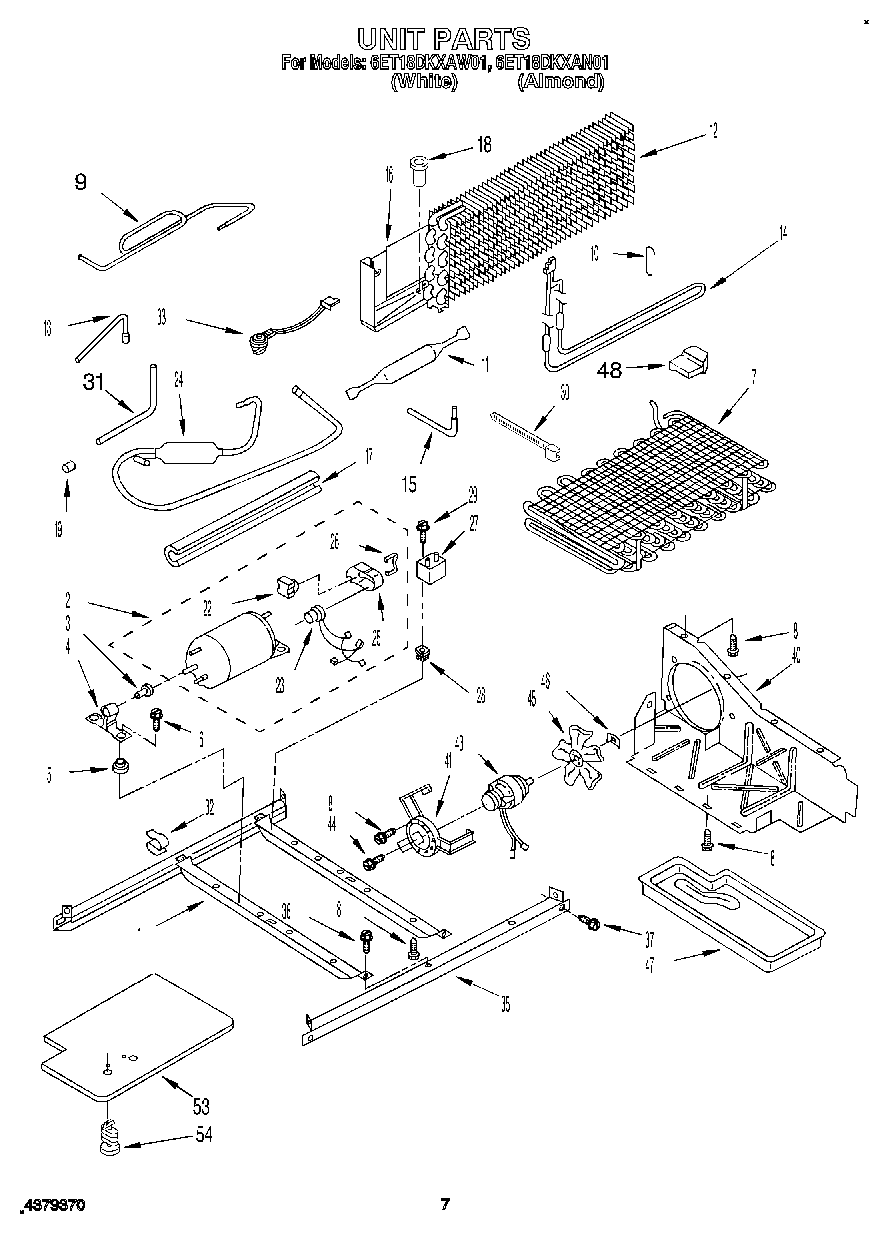

6ET18DKXAN01 05 – UNIT

Products

Position	Product
1	Unit, Frame
2	Compressor Kit Includes Items (22, 23, 25, 26, 27)
3	Grommet, Compressor Bracket
4	Bracket, Mounting
5	Grommet, Compressor (4)
6	Screw (4)
7	Condenser Assembly
8	WP489464 Whirlpool Refrigerator Screw
9	Tube, Discharge
10	Support, Heater
11	W10843121 Whirlpool Refrigerator Tube
12	Evaporator
13	Tube, Process
14	Heater, Defrost
15	Tube, Process
16	Drain Pan & Heat Shield
17	WP2002171 Whirlpool Refrigerator Sleeve
18	Drain Fitting
19	WP2158826 Whirlpool Refrigerator Dampener
22	Relay
23	Overload
23	Overload
24	Muffler
25	Terminal Cover
26	Strap, Cover
27	Running Capacitor
28	Screw Grommet
29	W11693756 Whirlpool Screw Assembly
30	WPW10339879 Whirlpool Wire Tie
31	Tube, Condenser To Heat Loop
32	Clip, Wire (2)
32	W10169512 Whirlpool Clip
33	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
35	Unit, Rail
36	WP489427 Whirlpool Refrigerator Screw
37	489340 Whirlpool Refrigerator Screw
40	Air, Baffle
41	Fan, Mounting Bracket
43	8201703 Whirlpool Refrigerator Condenser Motor
44	681390 Whirlpool Refrigerator Screw
45	Fan Blade
46	WP486692 Whirlpool Refrigerator Nut
47	Tray, Evaporator
48	Wedge, Air Baffle
53	Cover, Unit Bottom
54	978030 Whirlpool Refrigerator Valve
54	489396 Whirlpool Refrigerator Clip
54	VALVE, ACCESS (5/8“)
54	876764 Whirlpool Refrigerator Primary Valve
54	978026 Whirlpool Refrigerator Primary Valve
54	978027 Whirlpool Refrigerator Primary Valve
54	WP978025 Whirlpool Refrigerator Valve
54	VALVE, ACCESS (1/2“)
