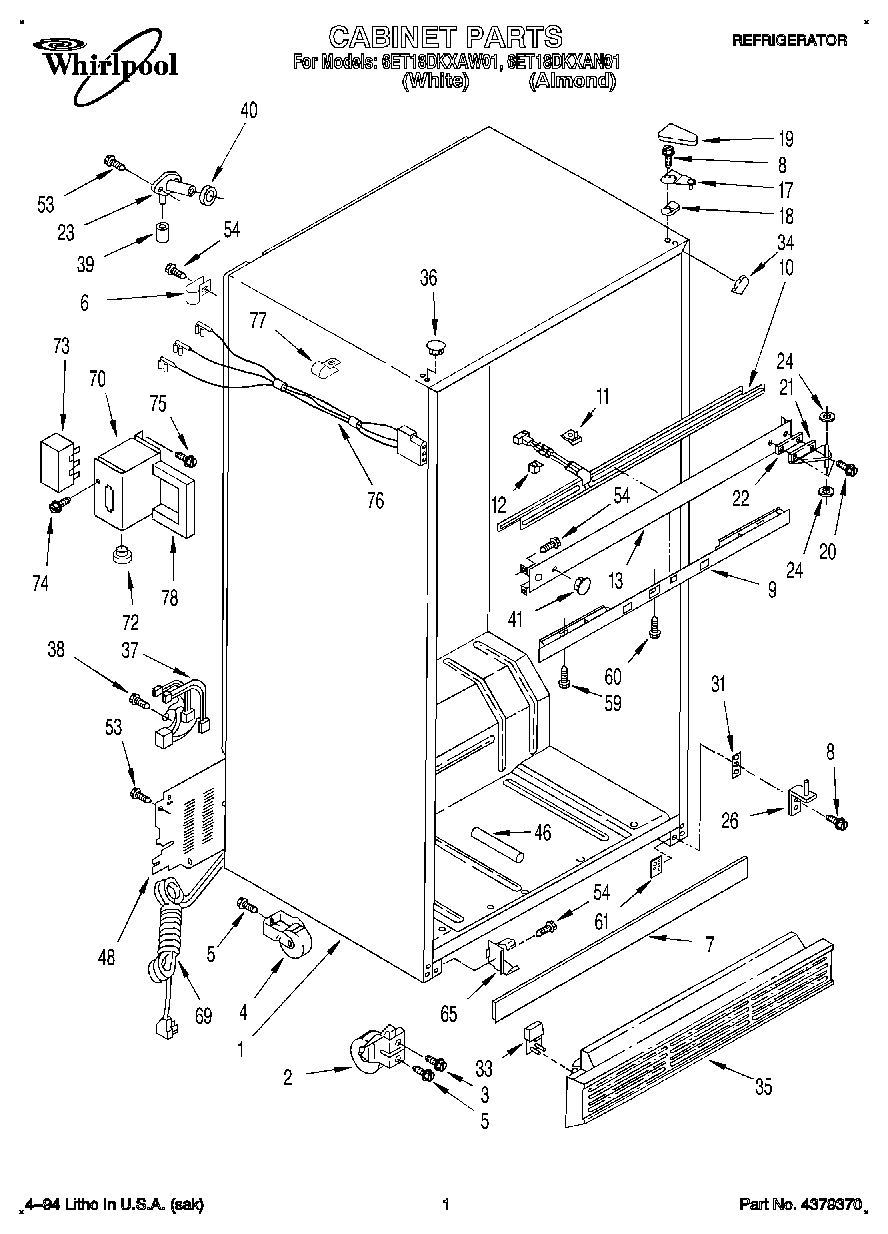

6ET18DKXAW01 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Front Roller (2)
3Screw, 5/16-24 x 1-1/4
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5Screw, 1/4-28 x 1/2 (2)
6WP488366 Whirlpool Refrigerator Clamp
7Deck Rail Cover
9Control, Front Cover
10Heater, Mullion
11Clip, Center Rail (4)
12Spacer (3)
13Center Rail
17WP2189412 Whirlpool Refrigerator Door Hinge
18Shim, Hinge Top
19Cover, Hinge (Almond)
19WP2213360 Whirlpool Refrigerator Cover
20WP999367 Whirlpool Refrigerator Screw
21Hinge, Center
22Shim, Hinge Center
23WP2196157 Whirlpool Fill Tube
24WP487802 Whirlpool Refrigerator Washer
26WP2254473 Whirlpool Refrigerator Door Hinge
31Spacer
33Corner Filler, Grille (Almond)
33Corner Filler, Grille (White)
34Filler, Wrapper Corner (2) (Almond)
34Filler, Wrapper Corner (2) (White)
35Grille (Almond)
35Grille
36WP2151652 Whirlpool Refrigerator Button Plug
36Hole Plug (6) (Almond)
37Wiring Assy. Intermediate
38WP250830 Whirlpool Refrigerator Screw
39WP487996 Whirlpool Refrigerator Cap Tube
40WP1106508 Whirlpool Refrigerator Gasket
41Hole Plug (4) (White)
46Fitting, Drain
48Cover, Unit
53WP489464 Whirlpool Refrigerator Screw
54WP489478 Whirlpool Refrigerator Screw
59WP488163 Whirlpool Refrigerator Screw
60WP489174 Whirlpool Refrigerator Screw
61Tap-Plate, Bottom Hinge
65WP2155013 Whirlpool Refrigerator Clip
69Service Cord
70Enclosure, Term.
72Bushing
73Terminal Block
74WPW10272364 Whirlpool Refrigerator Screw
75Screw
76Wiring Assembly, Terminal Block
77489348 Whirlpool Refrigerator Tube Clamp
78Gasket
