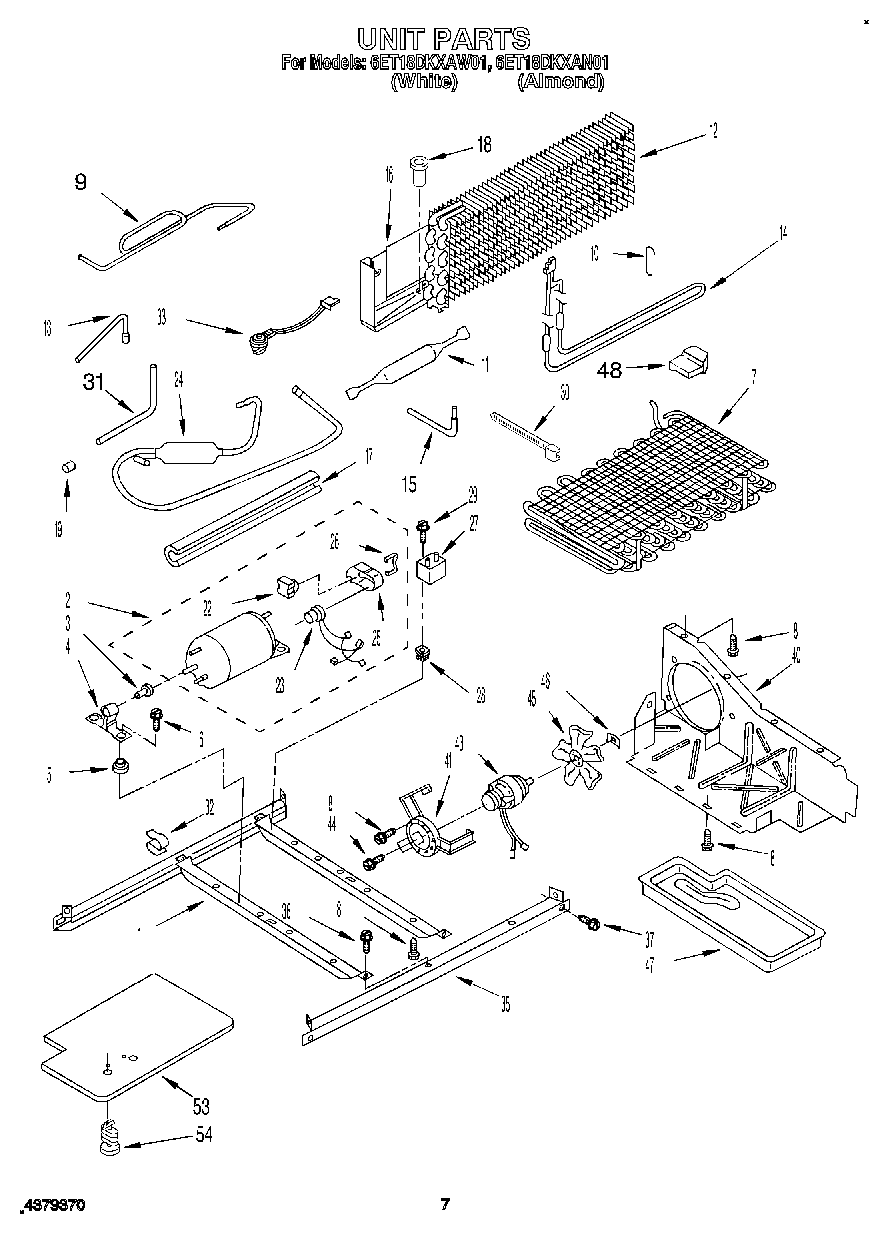

6ET18DKXAW01 05 – UNIT

Products

PositionProduct
1Unit, Frame
2Compressor Kit Includes Items (22, 23, 25, 26, 27)
3Grommet, Compressor Bracket
4Bracket, Mounting
5Grommet, Compressor (4)
6Screw (4)
7Condenser Assembly
8WP489464 Whirlpool Refrigerator Screw
9Tube, Discharge
10Support, Heater
11W10843121 Whirlpool Refrigerator Tube
12Evaporator
13Tube, Process
14Heater, Defrost
15Tube, Process
16Drain Pan & Heat Shield
17WP2002171 Whirlpool Refrigerator Sleeve
18Drain Fitting
19WP2158826 Whirlpool Refrigerator Dampener
22Relay
23Overload
23Overload
24Muffler
25Terminal Cover
26Strap, Cover
27Running Capacitor
28Screw Grommet
29W11693756 Whirlpool Screw Assembly
30WPW10339879 Whirlpool Wire Tie
31Tube, Condenser To Heat Loop
32Clip, Wire (2)
32W10169512 Whirlpool Clip
33WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
35Unit, Rail
36WP489427 Whirlpool Refrigerator Screw
37489340 Whirlpool Refrigerator Screw
40Air, Baffle
41Fan, Mounting Bracket
438201703 Whirlpool Refrigerator Condenser Motor
44681390 Whirlpool Refrigerator Screw
45Fan Blade
46WP486692 Whirlpool Refrigerator Nut
47Tray, Evaporator
48Wedge, Air Baffle
53Cover, Unit Bottom
54978030 Whirlpool Refrigerator Valve
54489396 Whirlpool Refrigerator Clip
54VALVE, ACCESS (5/8“)
54876764 Whirlpool Refrigerator Primary Valve
54978026 Whirlpool Refrigerator Primary Valve
54978027 Whirlpool Refrigerator Primary Valve
54WP978025 Whirlpool Refrigerator Valve
54VALVE, ACCESS (1/2“)
