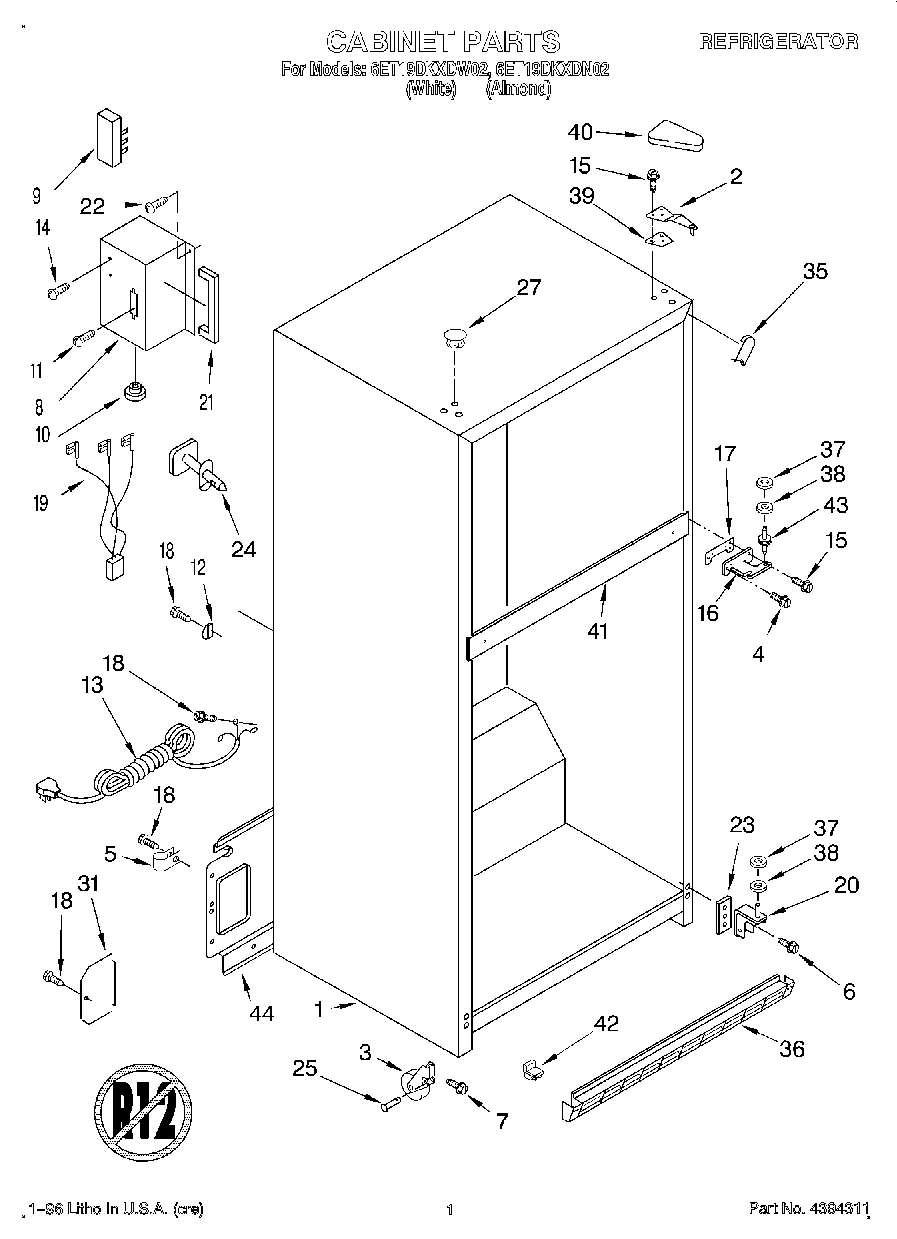

6ET19DKXDN02 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Hinge (Top)
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	Screw
5	WP488366 Whirlpool Refrigerator Clamp
6	Screw
7	Screw
8	Enclosure, Term.
9	Terminal Block
10	Bushing
11	WPW10272364 Whirlpool Refrigerator Screw
12	489348 Whirlpool Refrigerator Tube Clamp
13	Service Cord
14	Screw
15	WP999367 Whirlpool Refrigerator Screw
16	Hinge, Center
17	Shim, Hinge Center
18	WP489463 Whirlpool Refrigerator Screw
19	Wire Assembly, Terminal Box
20	Hinge Butt
21	Gasket
22	WP250830 Whirlpool Refrigerator Screw
23	Shim, Bottom Hinge
24	Fitting, Water Tube (Not Serviced)
25	W11594405 Whirlpool Axle
27	WP2151652 Whirlpool Refrigerator Button Plug
27	Hole Plug (6) (Almond)
31	Cover, Water Valve
35	Corner Filler (2) (Almond)
35	WPW10283959 Whirlpool Refrigerator Filler
36	Grille
36	Grille (Almond)
37	WP489467 Whirlpool Hinge Shim
38	WP487576 Whirlpool Washer
39	Shim
40	Cover-Hinge (Almond)
40	Cover-Hinge (White)
41	Rail Center (Not Serviced)
42	Corner Filler, Grille (White)
42	Corner Filler, Grille (Almond)
43	WP2254618 Whirlpool Center Door Hinge
44	Cover, Unit
