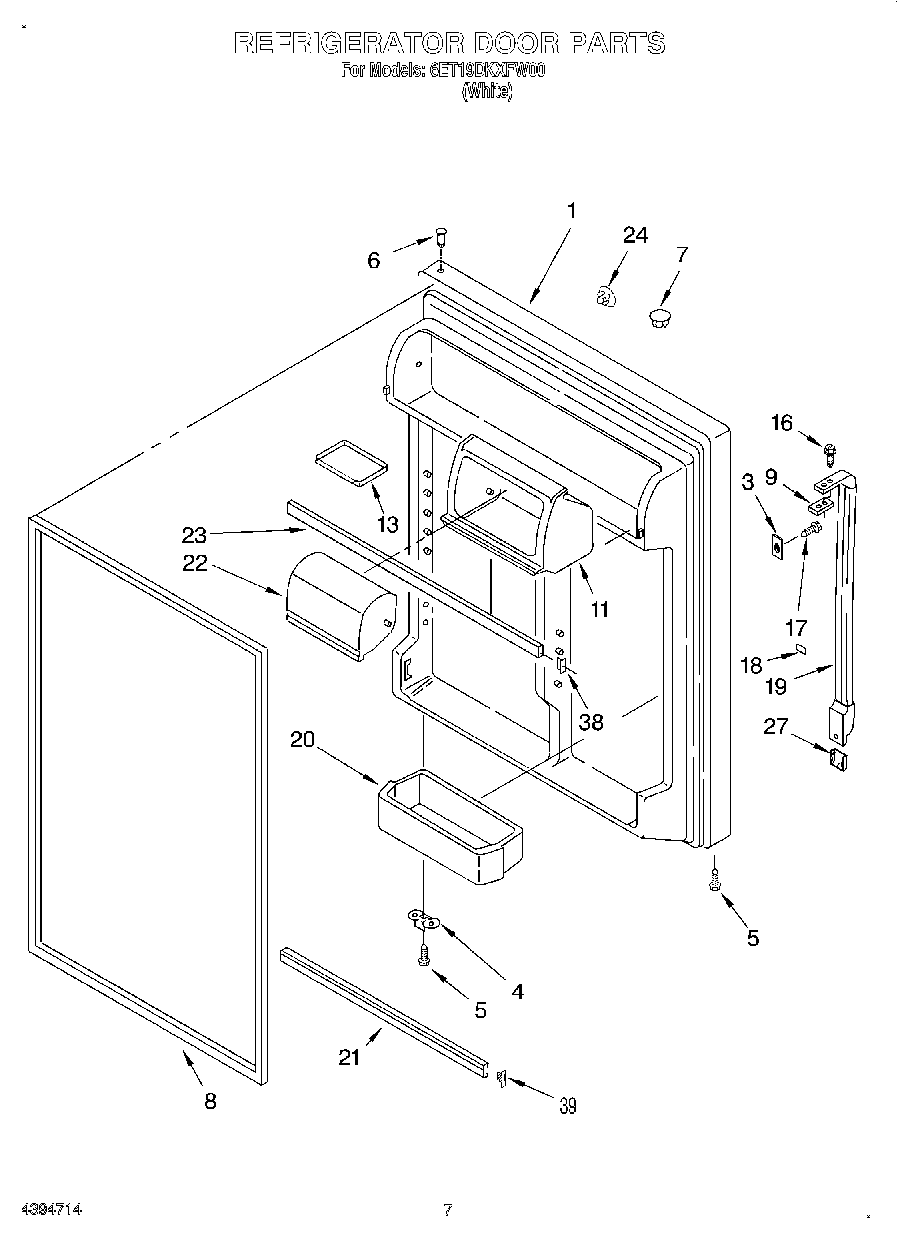

6ET19DKXFW00 04 – REFRIGERATOR DOOR

6ET19DKXFW00 04 – REFRIGERATOR DOOR

Written by

in

6ET19DKXFW00 04 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Illus. 2,3,6 & 8)
3Shim, Handle
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159057 Whirlpool Refrigerator Fresh Food Door Gasket
9Shim, Bottom
11Housing Compartment
13Tray, Door
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18Shim
19Handle (White)
20Bin, Door (3)
21WPW10421484 Whirlpool Refrigerator Door Trim
22DOOR-COMP
23WP2159312 Whirlpool Refrigerator Door Trim
24WP2189000 Whirlpool Refrigerator Handle Plug
27Cover, Endcap (White)
38Endcap, Door Trim
39WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
100FeaturePak (Includes 15, 17, 22) Also See Ref.Dr. & Frz.Dr. Pgs.
