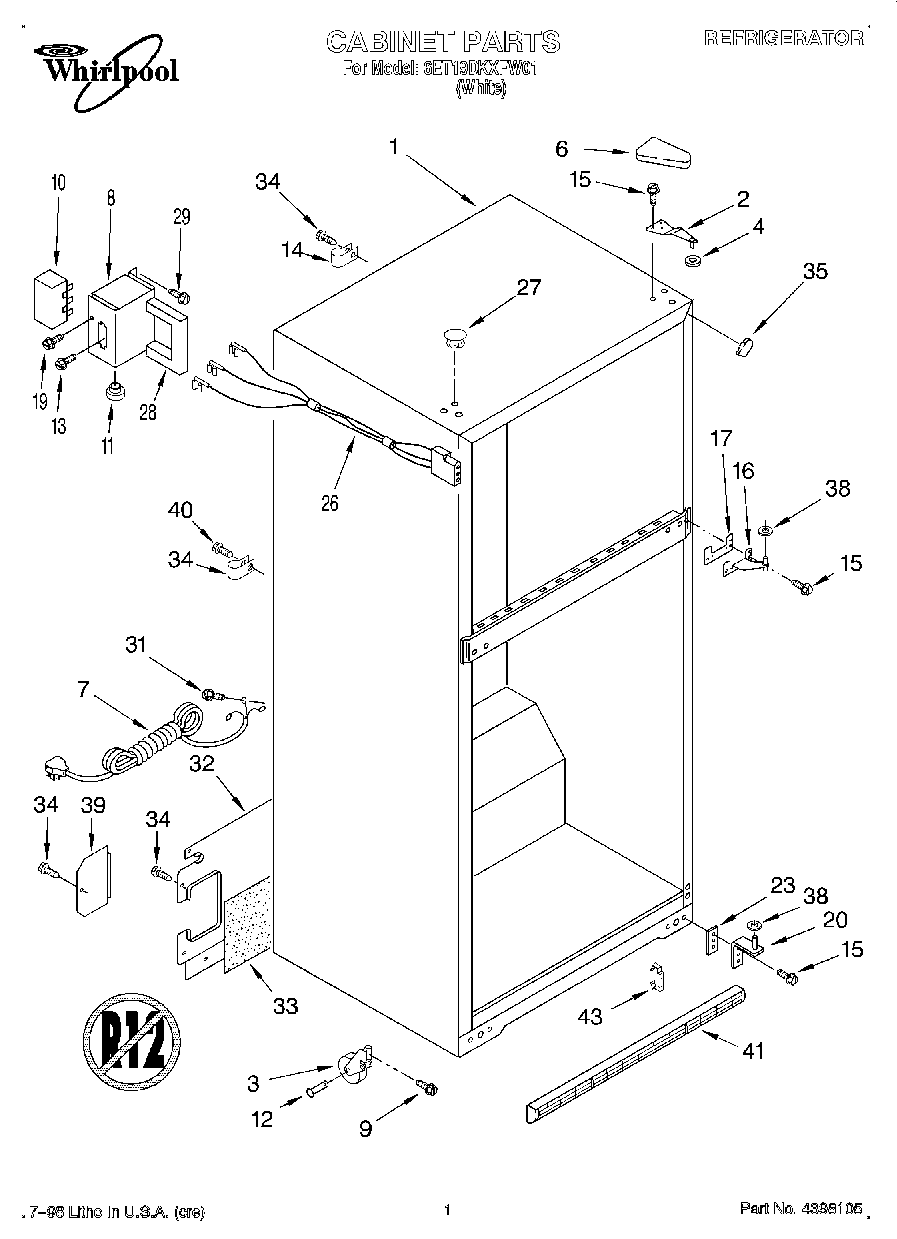

6ET19DKXFW01 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	WP487576 Whirlpool Washer
6	WP2213360 Whirlpool Refrigerator Cover
7	Service Cord
8	Enclosure, Terminal Block
9	Screw
10	Terminal Block
11	Bushing
12	W11594405 Whirlpool Axle
13	WPW10272364 Whirlpool Refrigerator Screw
14	489348 Whirlpool Refrigerator Tube Clamp
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
19	WP489399 Whirlpool Refrigerator Screw
20	WP2254473 Whirlpool Refrigerator Door Hinge
23	Shim, Bottom Hinge
26	Wire Assembly
27	WP2151652 Whirlpool Refrigerator Button Plug
28	Gasket
29	WP250830 Whirlpool Refrigerator Screw
31	WP489442 Whirlpool Refrigerator Screw
32	WP2189475 Whirlpool Refrigerator Unit Cover
33	Insulation
34	WP489464 Whirlpool Refrigerator Screw
35	WPW10283959 Whirlpool Refrigerator Filler
38	WP489467 Whirlpool Hinge Shim
39	Cover, Water Valve
40	WP488366 Whirlpool Refrigerator Clamp
41	WP2254386 Whirlpool Refrigerator Grille
43	CLIP, GRILLE
