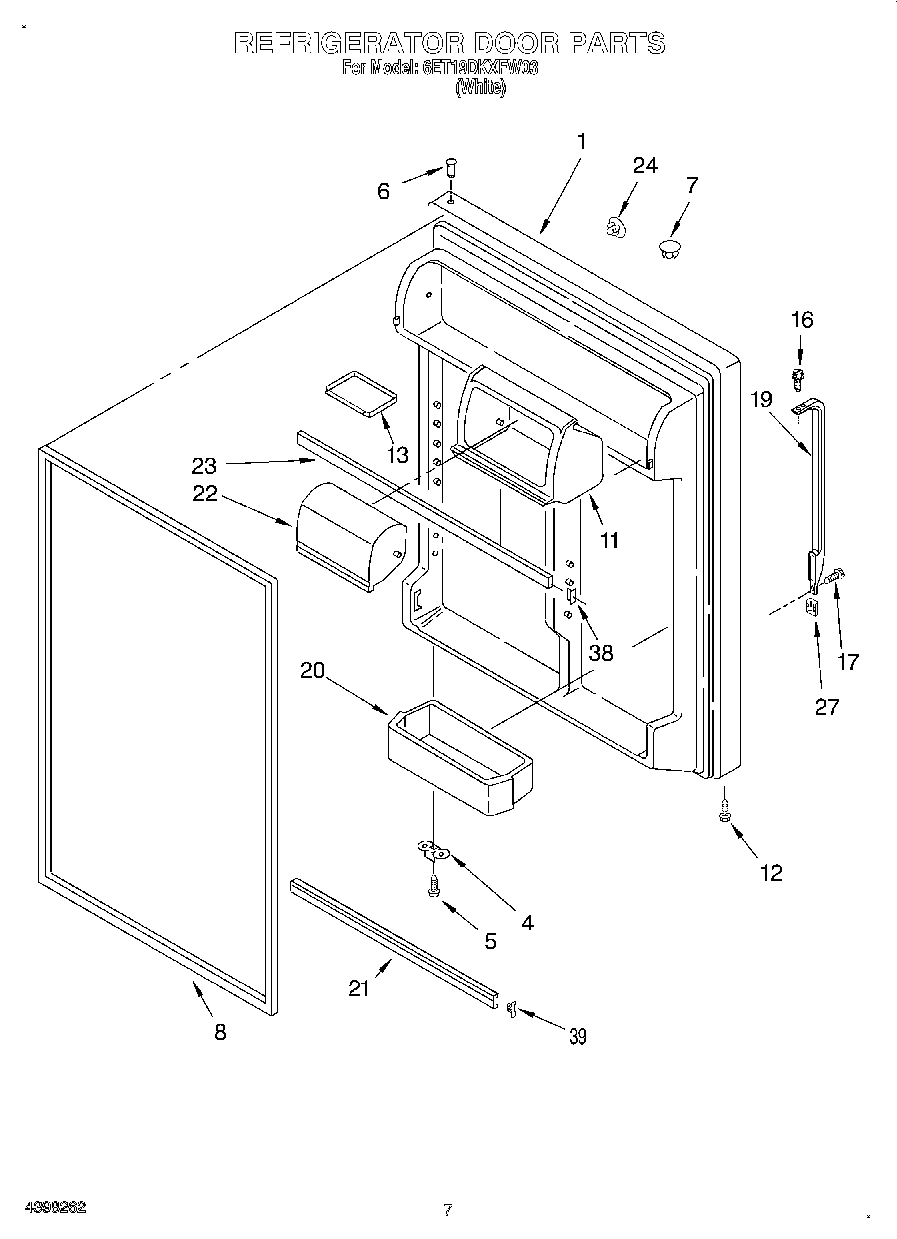

6ET19DKXFW03 04 – REFRIGERATOR DOORadmin2025-04-26T11:38:48+00:006ET19DKXFW03 04 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes Illus. 2,3,6 & 8) |
| 4 | W11745278 Whirlpool Bracket |
| 5 | WP488921 Whirlpool Refrigerator Screw |
| 6 | WP2183003 Whirlpool Thimble |
| 7 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 8 | 2159057 Whirlpool Refrigerator Fresh Food Door Gasket |
| 11 | Housing Compartment |
| 12 | WP8281206 Whirlpool Refrigerator Screw |
| 13 | Tray, Door |
| 16 | WP489357 Whirlpool Recessed Screw |
| 17 | WP488729 Whirlpool Refrigerator Door Screw |
| 19 | 4388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White |
| 20 | Bin, Door (3) |
| 21 | WPW10421484 Whirlpool Refrigerator Door Trim |
| 22 | DOOR-COMP |
| 23 | WP2159312 Whirlpool Refrigerator Door Trim |
| 24 | WP2189000 Whirlpool Refrigerator Handle Plug |
| 27 | WP2193353W Whirlpool Refrigerator Trim Handle |
| 38 | Endcap, Door Trim |
| 39 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 100 | Featurepak (Includes 11, 13, 20, 21, 22, 23, 38, 39) Also See Frz.Dr. & Shelf Parts Pgs. |
