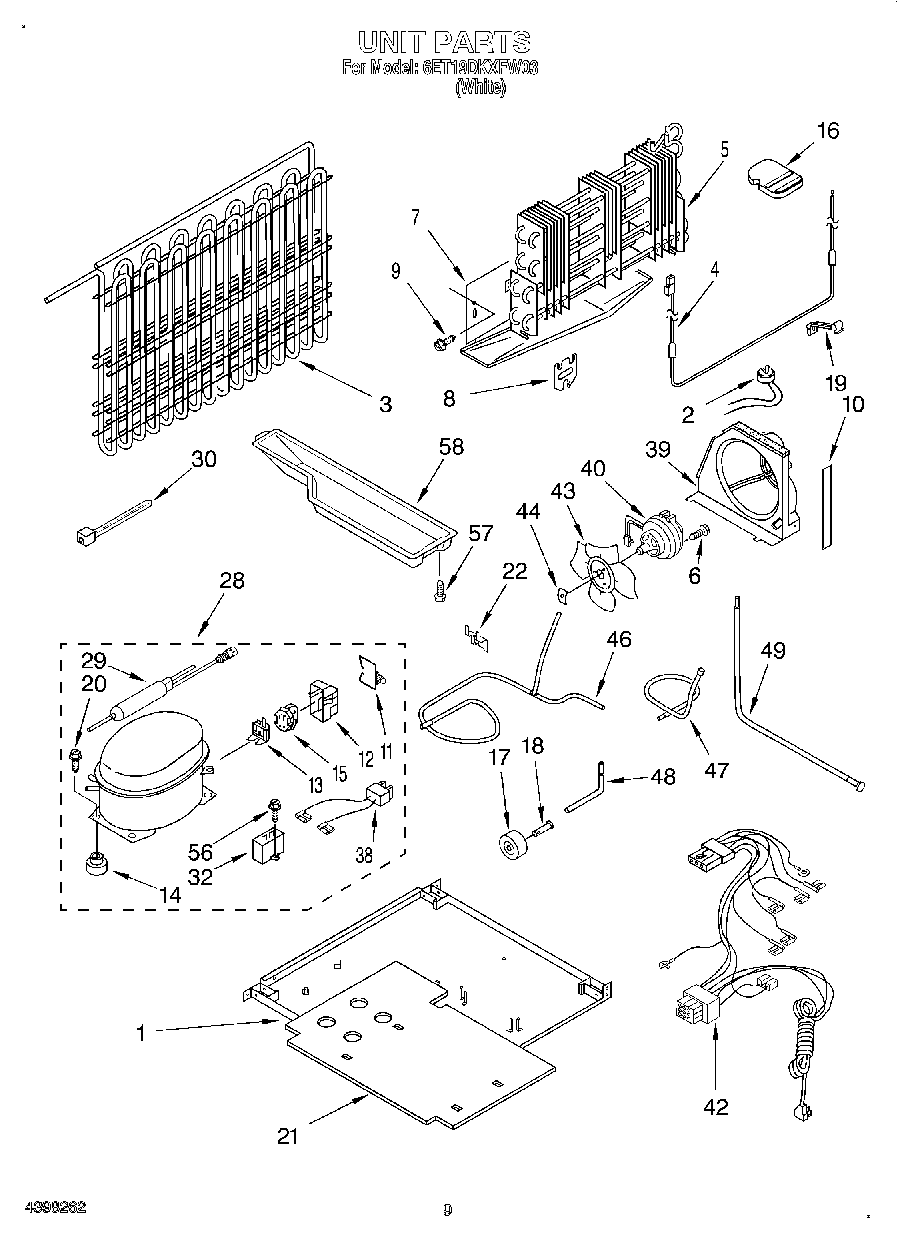

6ET19DKXFW03 05 – UNIT

Products

Position	Product
1	Plate, Unit Mounting
2	WP2182381 Whirlpool Refrigerator Bimetallic Defrost
3	Condenser
4	Heater, Defrost
5	Evaporator Assy.
6	WP8281196 Whirlpool Screw
7	Drain Pan
8	Bracket, Heater
9	WP489478 Whirlpool Refrigerator Screw
10	Extension, Air Baffle
11	Clip, Wire
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	2169410 Whirlpool Refrigerator Overload
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	WP2262184 Whirlpool Refrigerator Start Relay
16	Support Block
17	4388239 Whirlpool Refrigerator Primary Cabinet Roller
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	Cover, Unit
22	Clip, Capacitator
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	Installation Kit
28	Compressor (Includes Items 11,12,13,14,15, 21, 29, 32, 38 And 56) (Also Order)
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
32	WP2201147 Whirlpool Refrigerator Capacitor
38	WP2172890 Whirlpool Refrigerator Wire
39	Air Baffle
40	8201703 Whirlpool Refrigerator Condenser Motor
42	Wire Assy. Unit
43	Blade, Fan
44	WP486692 Whirlpool Refrigerator Nut
46	Tube, Discharge
47	Tube, Suction
48	2154109 Whirlpool Refrigerator Tube
49	Tube, Condenser To Heat Loop
56	W11693756 Whirlpool Screw Assembly
57	Screw
58	VALVE, ACCESS (5/8“)
58	876764 Whirlpool Refrigerator Primary Valve
58	978026 Whirlpool Refrigerator Primary Valve
58	978027 Whirlpool Refrigerator Primary Valve
58	978030 Whirlpool Refrigerator Valve
58	WP978025 Whirlpool Refrigerator Valve
58	VALVE, ACCESS (1/2“)
58	Evap. Tray
58	Start Kit
