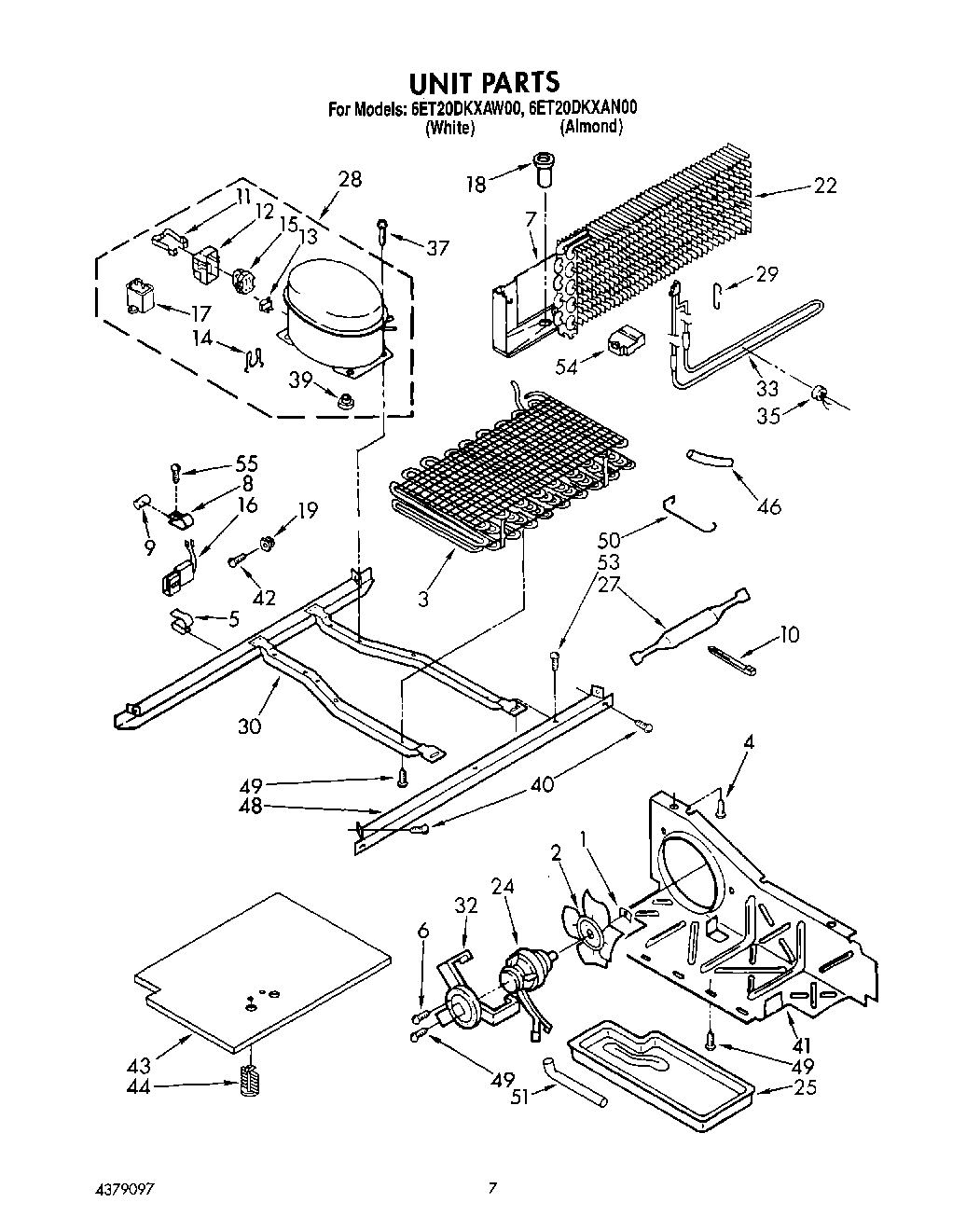

6ET20DKXAW00 05 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Drain Pan/ Heat Shield
8	Tube Clamp (2)
9	WP2158826 Whirlpool Refrigerator Dampener
10	WPW10339879 Whirlpool Wire Tie
11	Strap
12	Cover
13	Overload
14	Spring, Overload
15	Relay (See Overload)
16	Housing Plug
17	Capacitor
18	Drain Fitting
19	Screw Grommet
22	Evaporator
24	8201703 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 11, (Also Order)
29	Support, Heater
30	Unit Mounting Frame
32	Fan, Motor Bracket
33	Heater, Defrost
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
37	Screw
39	Grommet (Production)
40	489340 Whirlpool Refrigerator Screw
41	Air, Baffle
42	W11693756 Whirlpool Screw Assembly
43	Cover-Unit Btm.
44	489396 Whirlpool Refrigerator Clip
46	SLEEVE
48	Unit Mounting Rail
50	1105612 Whirlpool Fan Guard
51	Drain Extension
53	Screw, 1/4-28 x 1/2 (2)
54	876764 Whirlpool Refrigerator Primary Valve
54	VALVE, ACCESS (1/2“)
54	VALVE, ACCESS (5/8“)
54	Support (R.S.)
54	WP978025 Whirlpool Refrigerator Valve
54	978030 Whirlpool Refrigerator Valve
54	Support-Evaporator (L.S.)
54	978027 Whirlpool Refrigerator Primary Valve
54	978026 Whirlpool Refrigerator Primary Valve
