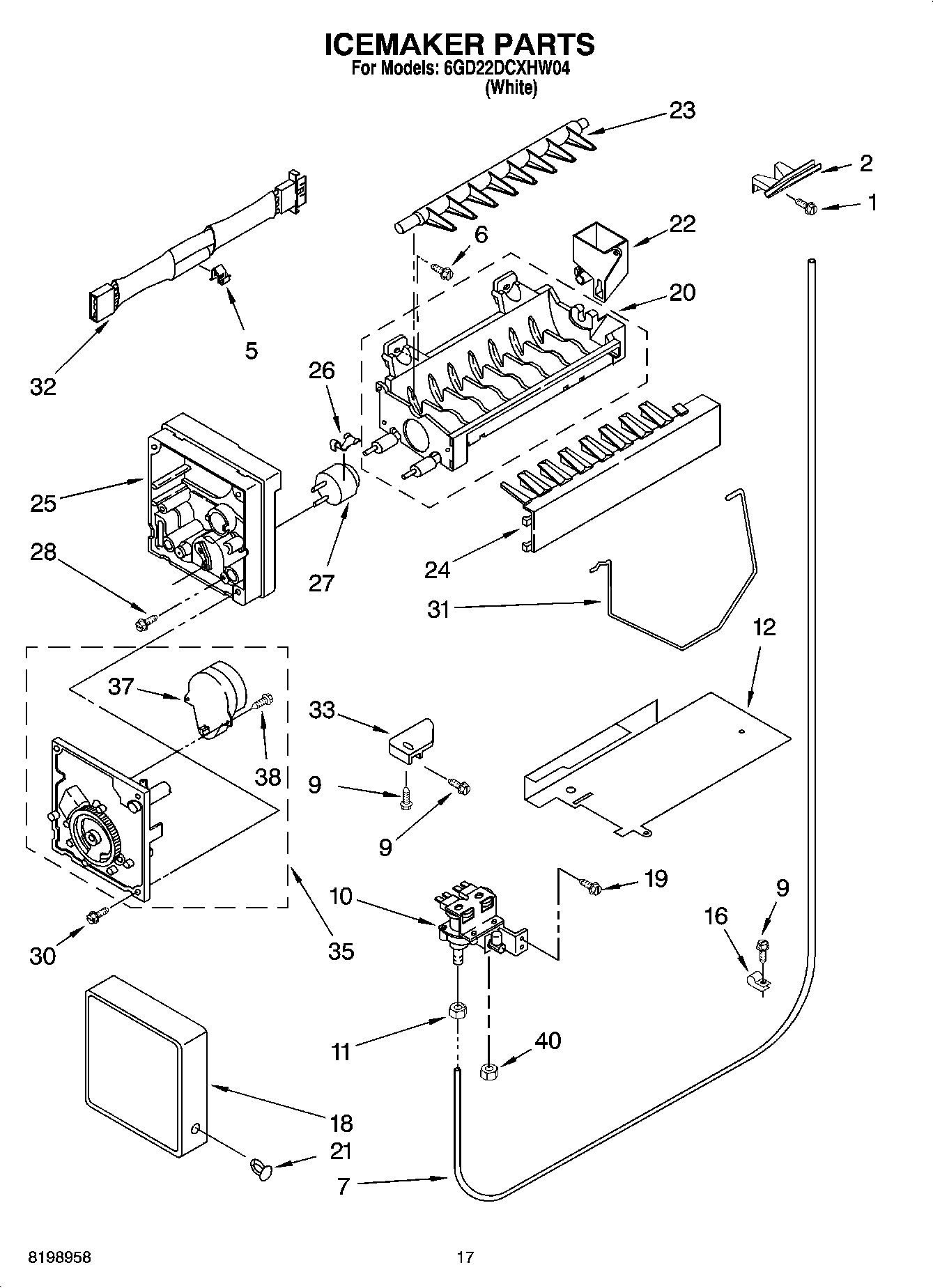

6GD22DCXHW04 11 – ICEMAKER PARTSadmin2025-04-26T12:22:50+00:006GD22DCXHW04 11 – ICEMAKER PARTS ProductsPositionProduct2W11505385 Whirlpool Refrigerator Chute5WP628379 Whirlpool Refrigerator Clip6WP488163 Whirlpool Refrigerator Screw7W10823511 Whirlpool Refrigerator Water Tube9WP489478 Whirlpool Refrigerator Screw10Valve, Solenoid11WP627018 Whirlpool Refrigerator Nut122256178 Whirlpool Shield Assembly16WP488366 Whirlpool Refrigerator Clamp18WPW10289690 Whirlpool Ice Maker Cover19WPW10141625 Whirlpool Refrigerator Screw Assembly20WPW10122523 Whirlpool Refrigerator Ice Mold21WP489115 Whirlpool Refrigerator Rivet22WP628356 Whirlpool Refrigerator Fill Cup23WP627843 Whirlpool Refrigerator Ejector Arm24WP2182124 Whirlpool Refrigerator Stripper Arm25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat288533917 Whirlpool Refrigerator Screw30WP681249 Whirlpool Screw Assembly31W11342242 Whirlpool Refrigerator Ice Level Arm33W11500948 Whirlpool Refrigerator Bracket35W10190933 Whirlpool Refrigerator Motor Assembly38489136 Whirlpool Refrigerator Screw40Nut, Compression
