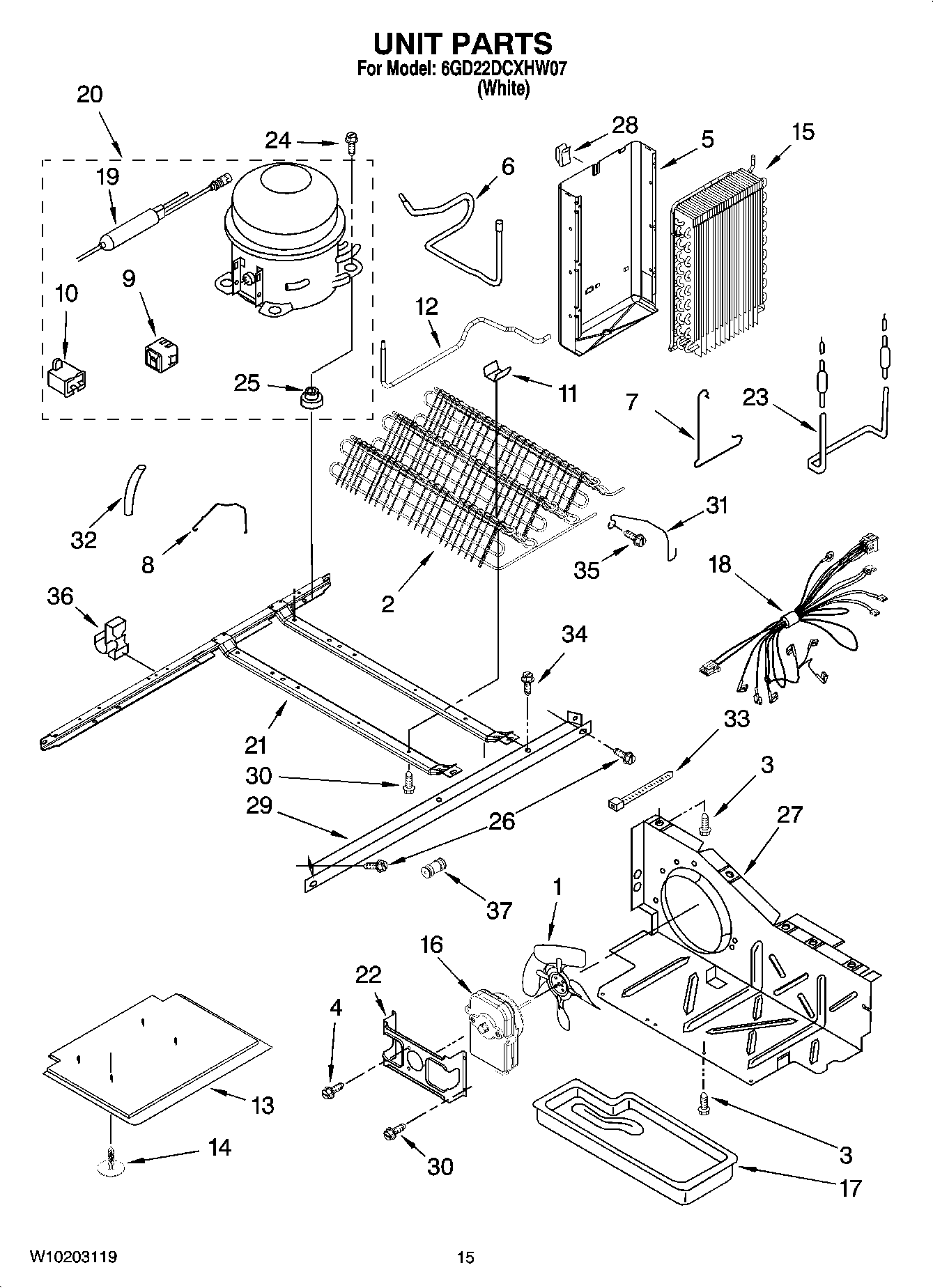

6GD22DCXHW07 10 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	REFRIGERANT CHARGE 5.0 oz. (R-134)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
	Following Parts Not Illustrated and Optional Parts Not Included
1	W11458267 Whirlpool Refrigerator Fan Blade
2	2324712 Whirlpool Refrigerator Condenser
3	WP489464 Whirlpool Refrigerator Screw
4	WP8533993 Whirlpool Refrigerator Screw
5	2217195 Whirlpool Refrigerator Shield
6	2205764 Whirlpool Refrigerator Tube
7	Clamp
8	Strap, Bale
9	WP2312007 Whirlpool Refrigerator Start Device
10	2321245 Whirlpool Refrigerator Capacitor
11	W10683556 Whirlpool Refrigerator Clip
12	W10858105 Whirlpool Refrigerator Tube
13	W11115203 Whirlpool Control Panel
14	489396 Whirlpool Refrigerator Clip
15	WP2188822 Whirlpool Refrigerator Evaporator
16	WP2321271 Whirlpool Refrigerator Condenser Motor
17	WPW10614158 Whirlpool Refrigerator Evaporator Tray
18	Unit, Harness
19	WPW10143759 Whirlpool Dryer Filter
20	W10183407 Whirlpool Refrigerator Compressor
21	2304903 Whirlpool Refrigerator Frame
22	WP2181929 Whirlpool Refrigerator Bracket
23	WPW10123612 Whirlpool Heater Assembly
25	WP4387558 Whirlpool Refrigerator Compressor Grommet
25	876811 Whirlpool Grommet
26	489340 Whirlpool Refrigerator Screw
27	W10896764 Whirlpool Refrigerator Air Baffle
28	Clip, Heat Shield
29	Unit Mounting Rail
30	W11544659 Whirlpool Refrigerator Screw
31	1105612 Whirlpool Fan Guard
32	SLEEVE
33	WPW10339879 Whirlpool Wire Tie
34	WP489427 Whirlpool Refrigerator Screw
35	WP489478 Whirlpool Refrigerator Screw
36	Clip, Wire & Tube
37	WPW10334458 Whirlpool Refrigerator Connector
