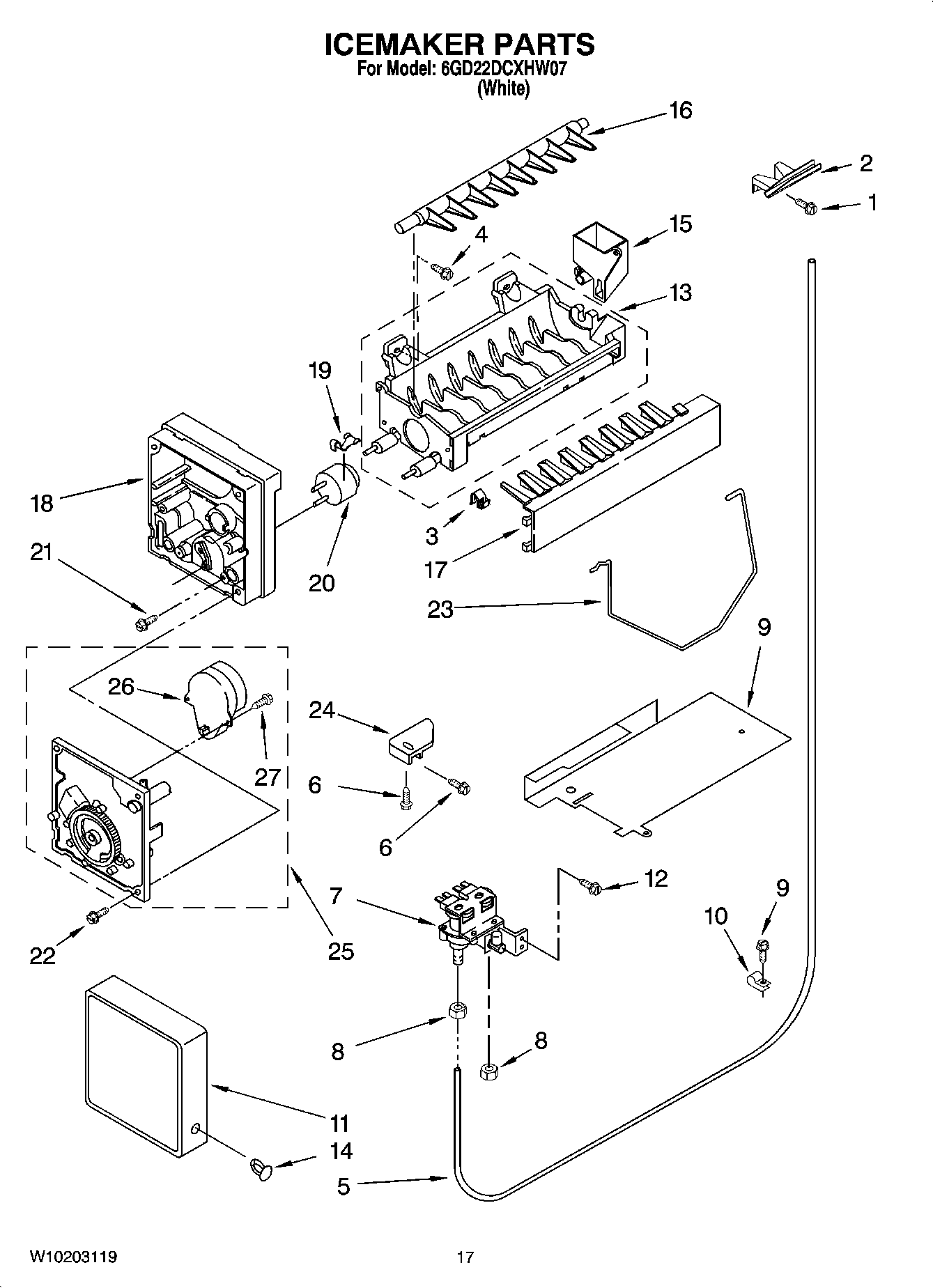

6GD22DCXHW07 11 – ICEMAKER PARTS

6GD22DCXHW07 11 – ICEMAKER PARTS

Written by

in

6GD22DCXHW07 11 – ICEMAKER PARTS

Products

PositionProduct
2W11505385 Whirlpool Refrigerator Chute
3WP628379 Whirlpool Refrigerator Clip
4WP488163 Whirlpool Refrigerator Screw
5W10823511 Whirlpool Refrigerator Water Tube
6WP489478 Whirlpool Refrigerator Screw
7Valve, Solenoid
92256178 Whirlpool Shield Assembly
10WP488366 Whirlpool Refrigerator Clamp
11WPW10289690 Whirlpool Ice Maker Cover
12WPW10141625 Whirlpool Refrigerator Screw Assembly
13WPW10122523 Whirlpool Refrigerator Ice Mold
14WP489115 Whirlpool Refrigerator Rivet
15W10122561 Whirlpool Refrigerator Cup Fill
16WP627843 Whirlpool Refrigerator Ejector Arm
17WP2182124 Whirlpool Refrigerator Stripper Arm
18WP2195914 Whirlpool Refrigerator Ice Maker Housing
19WP2315522 Whirlpool Refrigerator Clip
20WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
21W10001280 Whirlpool Refrigerator Screw
22W10001240 Whirlpool Refrigerator Screw
23W11342242 Whirlpool Refrigerator Ice Level Arm
24W11500948 Whirlpool Refrigerator Bracket
26W10190933 Whirlpool Refrigerator Motor Assembly
27489136 Whirlpool Refrigerator Screw
100Complete Icemaker Assembly
