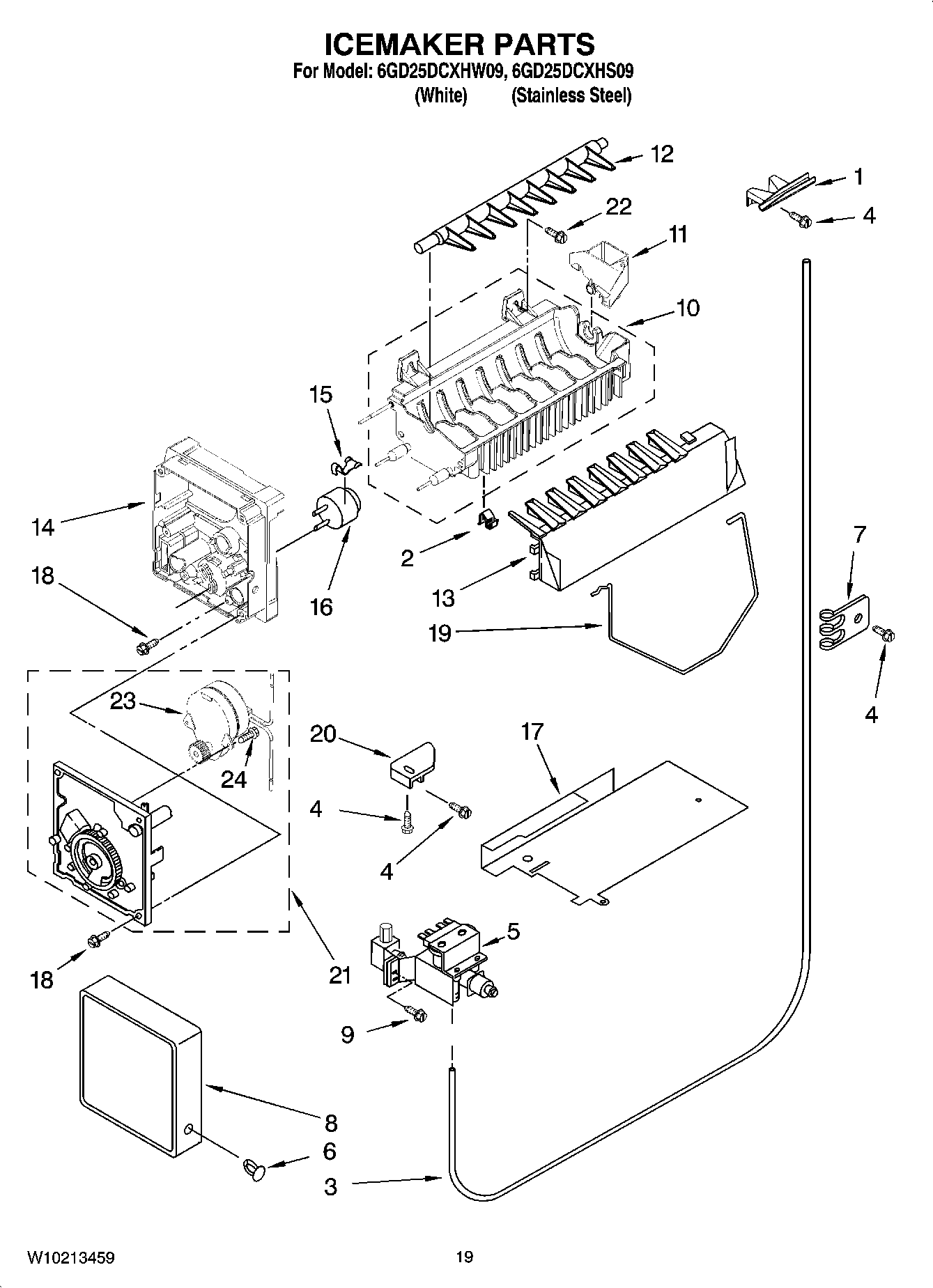

6GD25DCXHS09 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

6GD25DCXHS09 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

6GD25DCXHS09 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
8171357 Whirlpool Spray Nozzle
PAINT, BULK (1 QT. GRAPHITE)
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WP503695 Whirlpool Refrigerator Sealer
833938 Whirlpool Refrigerator Terminal
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
WPL ARI16197A6
WPL ARI16196A6
Important: The spray paint is not to be used where the pai
212643 Whirlpool Refrigerator Permagum Sealer
1W11505385 Whirlpool Refrigerator Chute
2WP628379 Whirlpool Refrigerator Clip
3W10823511 Whirlpool Refrigerator Water Tube
4WP489478 Whirlpool Refrigerator Screw
5WPW10158157 Whirlpool Refrigerator Inlet Valve
6WP489115 Whirlpool Refrigerator Rivet
7WP488366 Whirlpool Refrigerator Clamp
8WPW10289690 Whirlpool Ice Maker Cover
9WPW10141625 Whirlpool Refrigerator Screw Assembly
10WPW10122523 Whirlpool Refrigerator Ice Mold
11W10122561 Whirlpool Refrigerator Cup Fill
12WP627843 Whirlpool Refrigerator Ejector Arm
13WP2182124 Whirlpool Refrigerator Stripper Arm
14WP2195914 Whirlpool Refrigerator Ice Maker Housing
15WP2315522 Whirlpool Refrigerator Clip
16WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
172256178 Whirlpool Shield Assembly
19W11342242 Whirlpool Refrigerator Ice Level Arm
20W11500948 Whirlpool Refrigerator Bracket
21W10190933 Whirlpool Refrigerator Motor Assembly
22WP488163 Whirlpool Refrigerator Screw
23Motor
24W10001240 Whirlpool Refrigerator Screw
100Complete Icemaker Assembly
