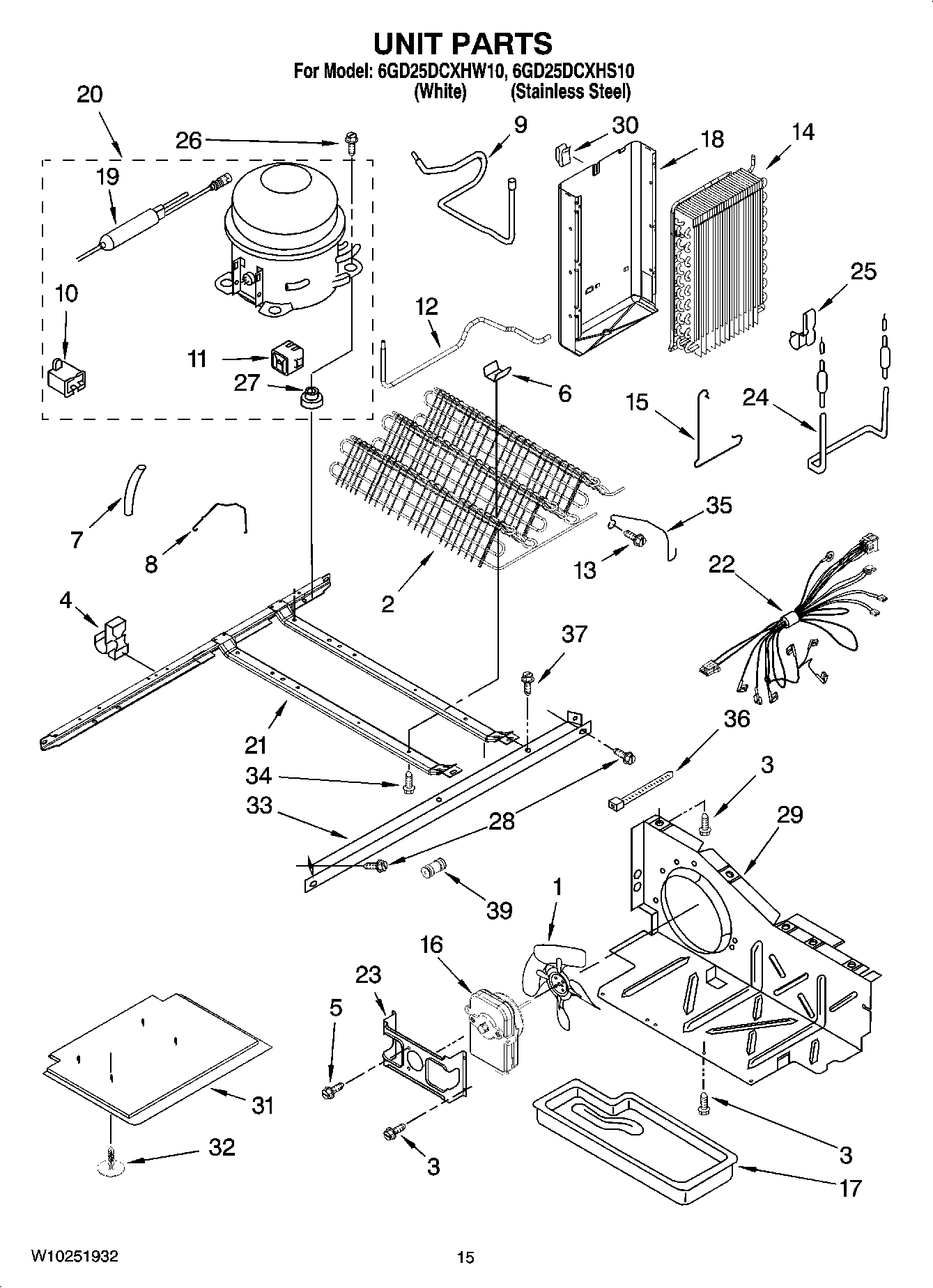

6GD25DCXHS10 09 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	REFRIGERANT CHARGE 5.0 oz. (R-134A)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
1	W11458267 Whirlpool Refrigerator Fan Blade
2	2324712 Whirlpool Refrigerator Condenser
3	WP489464 Whirlpool Refrigerator Screw
4	Clip, Wire & Tube
5	WP8533993 Whirlpool Refrigerator Screw
6	W10683556 Whirlpool Refrigerator Clip
7	SLEEVE
8	Strap, Bale
9	WP2205765 Whirlpool Refrigerator Tube
10	2321245 Whirlpool Refrigerator Capacitor
11	Start-Device, Combination (Start Relay and Overload)
12	W10858105 Whirlpool Refrigerator Tube
13	WP489478 Whirlpool Refrigerator Screw
14	WP2188823 Whirlpool Refrigerator Evaporator
15	Clamp
16	WP2321271 Whirlpool Refrigerator Condenser Motor
17	WPW10614158 Whirlpool Refrigerator Evaporator Tray
18	Heat Shield
19	WPW10143759 Whirlpool Dryer Filter
20	WP8201733 Whirlpool Refrigerator Compressor
21	2304904 Whirlpool Frame Assembly
22	Unit, Harness
23	WP2181929 Whirlpool Refrigerator Bracket
24	WPW10123653 Whirlpool Refrigerator Heater
25	W11623163 Whirlpool Refrigerator Clip
27	876811 Whirlpool Grommet
28	489340 Whirlpool Refrigerator Screw
29	W10896764 Whirlpool Refrigerator Air Baffle
30	Clip, Heat Shield
31	Unit Cover, Bottom
32	489396 Whirlpool Refrigerator Clip
33	2305374 Whirlpool Refrigerator Unit Rail
34	W11544659 Whirlpool Refrigerator Screw
35	Guard, Fan
36	WPW10339879 Whirlpool Wire Tie
37	WP489427 Whirlpool Refrigerator Screw
39	WPW10334458 Whirlpool Refrigerator Connector
