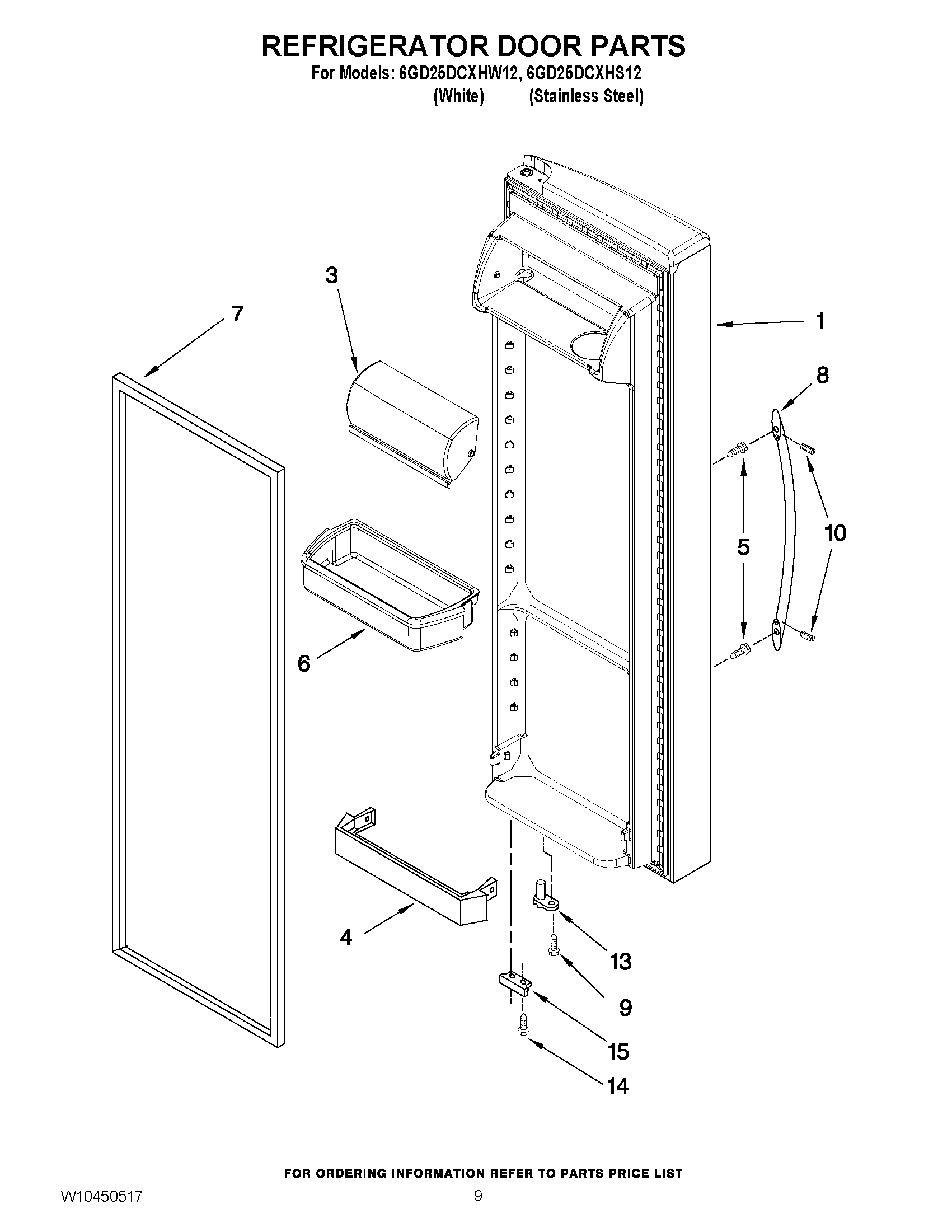

6GD25DCXHS12 06 – REFRIGERATOR DOOR PARTS

6GD25DCXHS12 06 – REFRIGERATOR DOOR PARTS

Written by

in

6GD25DCXHS12 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM No.8) (STAINLESS STEEL)
1Refrigerator Door (Includes Item 8) (White)
3WP2256101 Whirlpool Dairy Door
4WP2156022 Whirlpool Refrigerator Door Trim
5WPW10170540 Whirlpool Screw
6WPW10321304 Whirlpool Refrigerator Door Shelf Bin
72159083 Whirlpool Gasket Door
72159075 Whirlpool Door Gasket Seal
8WP2319727W Whirlpool Refrigerator Handle
8Handle, Door (Stainless Steel)
9WP3400012 Whirlpool Refrigerator Screw
10SCREW
13WP2182179 Whirlpool Cam Closer
14WP489483 Whirlpool Screw
15BRACKET, DOOR STOP
15BRACKET, DOOR STOP (SILVER)
